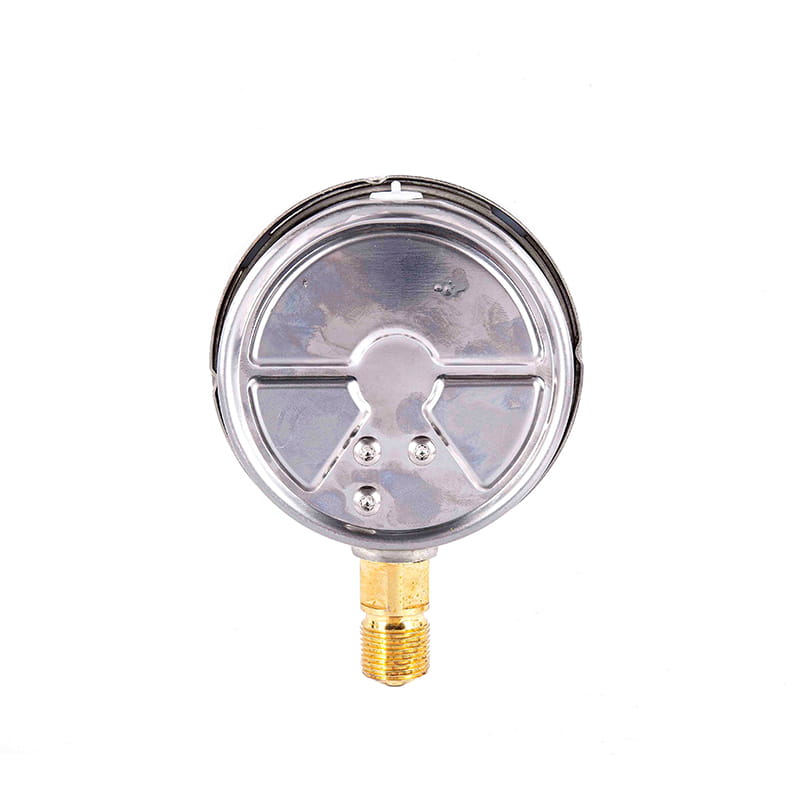

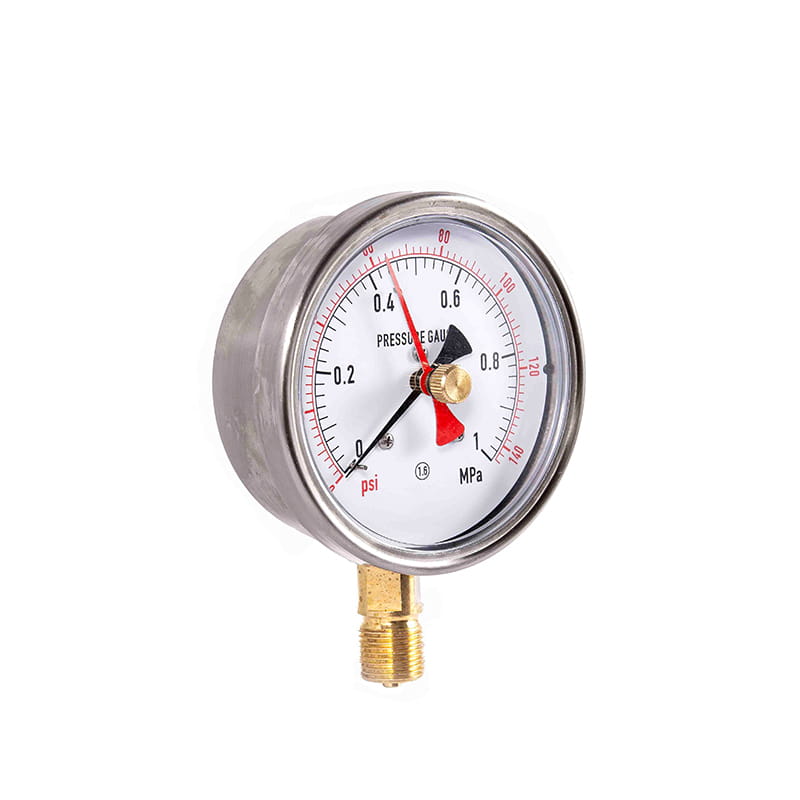

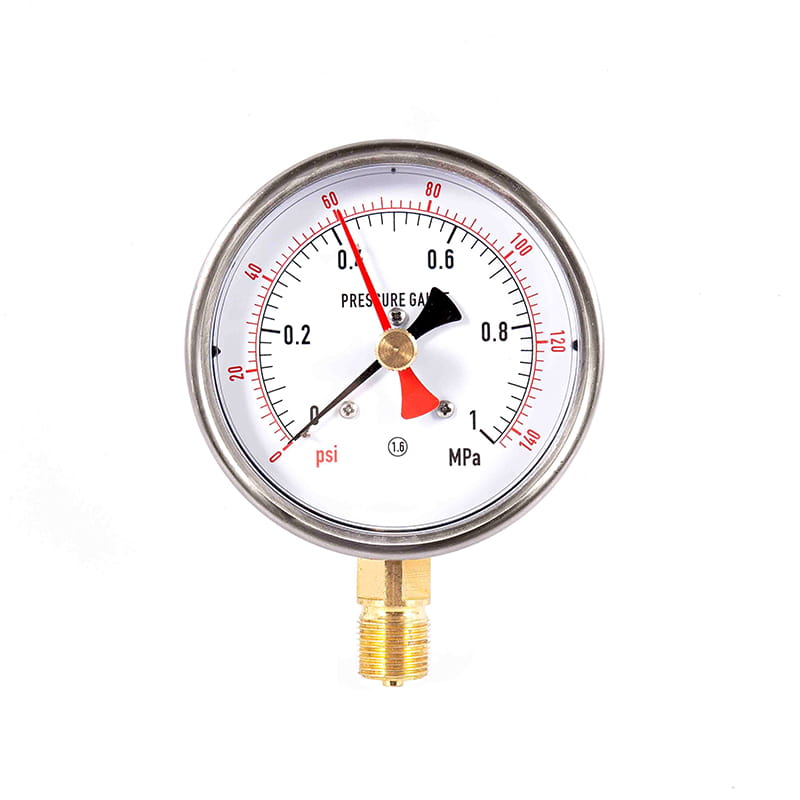

YZS series double-needle double-tube pressure gauges

◆ Model: YZS102

◆ Application: Double-needle double-tube pressure gauges is mainly used in rolling stock to measure the pressure in the hydraulic system or air storage cylinder. The instrument is composed of two sets of independent measuring mechanisms and indicating devices, which do not interfere with each other, so it can simultaneously measure the same or two different pressures of non-corrosive, non-crystalline and non-coagulable medium of copper alloy and tin-lead alloy brazing metal.

Double-needle double-tube pressure gauges has large 100 mm dial ensures excellent readability, even from a distance or in low-light conditions. This size is widely used in industrial settings such as chemical plants, mechanical systems, and pipeline networks.
With an accuracy class of 1.6, the gauge provides reliable and precise readings suitable for general industrial applications. This level of accuracy ensures stable monitoring while maintaining cost efficiency.
Environmental Conditions of Use
Operating Temperature: –5°C to 60°C
Ensures stable performance in typical indoor and semi-outdoor industrial environments.
Relative Humidity ≤ 80%
Suitable for humid locations while maintaining measurement stability.

Get A Quote

PREV：CYB series stainless steel differential pressure gauges NEXT：YKY series mining memory pressure gauges

Parameter
Contact Us

◆ Technical Parameters:

Model	YZS102
Nominal diameter	Φ100
Fitting threads	M20×1.5； G3/8
Accuracy class	1.6
Measuring range （kPa）	0～1000 0～1200 0～1600 0～2500
Environmental conditions of use	Temperature: -5°C~60°C Relative humidity: not more than 80%.
Temperature effects	(deviation from 20°C±5°C when using) is not greater than 0.4%/10°C
weight	0.7kg
Vibration resistance rating	V· H· 3
Ingress protection	IP54
Enforce the standard	GB/T1226
Note: 1. The joint thread can be customized according to user requirements.

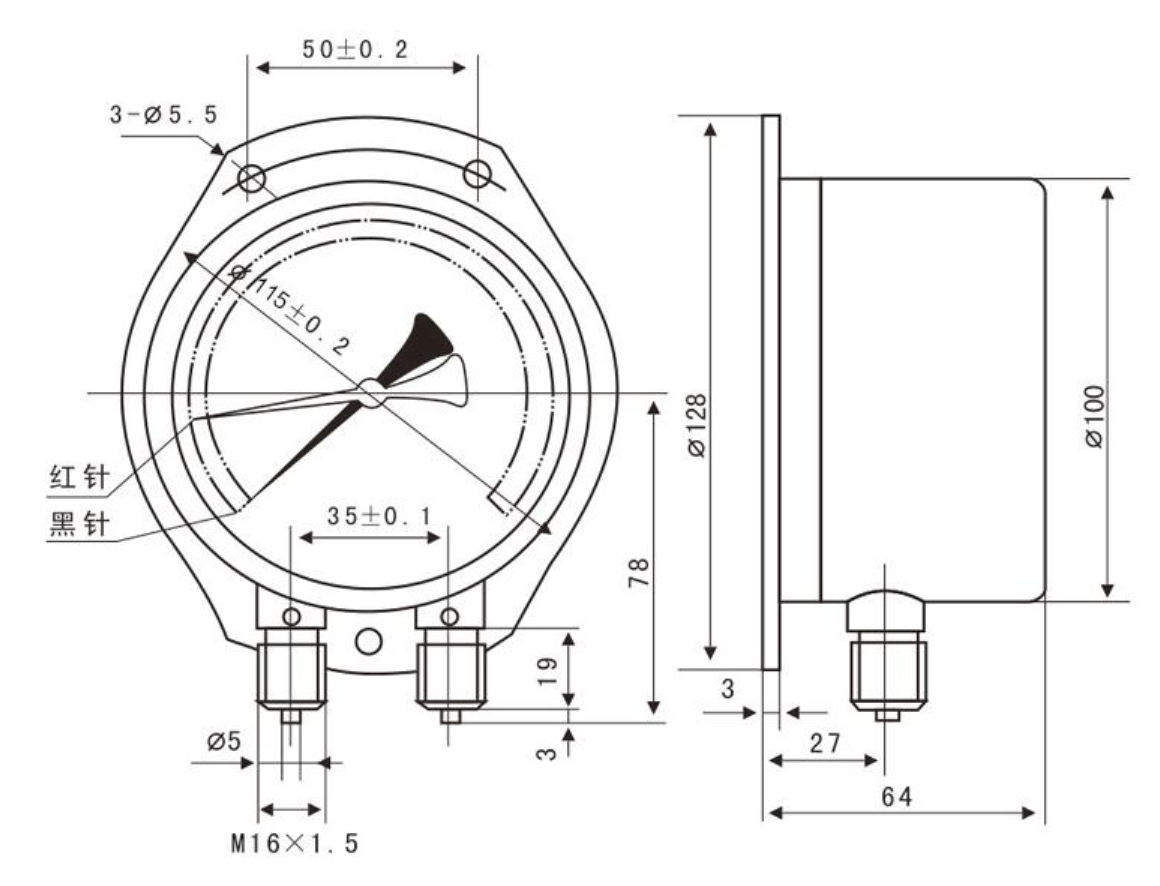

◆ Exterior Dimensions:
