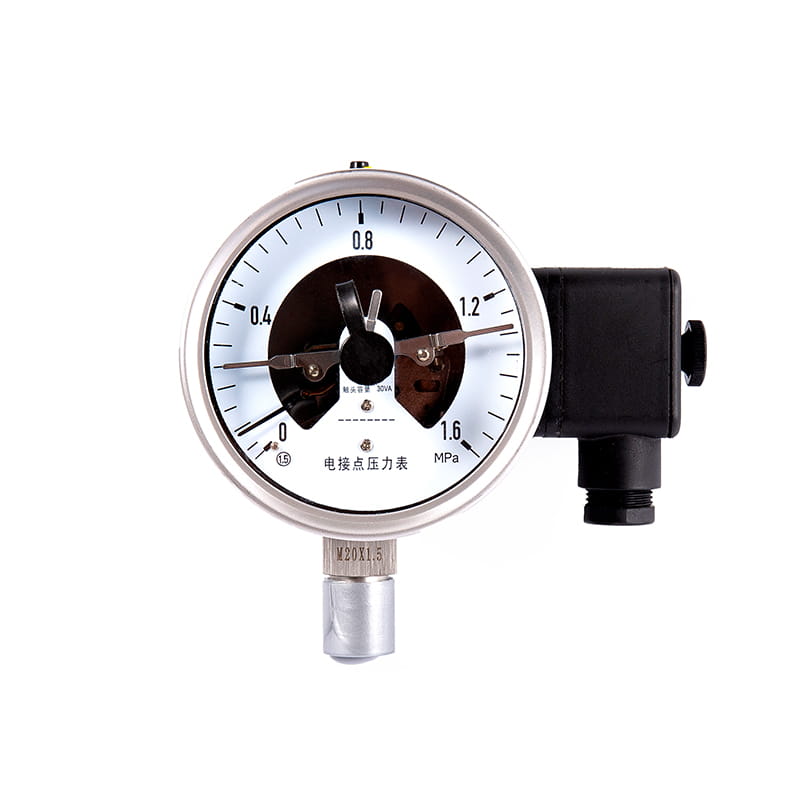

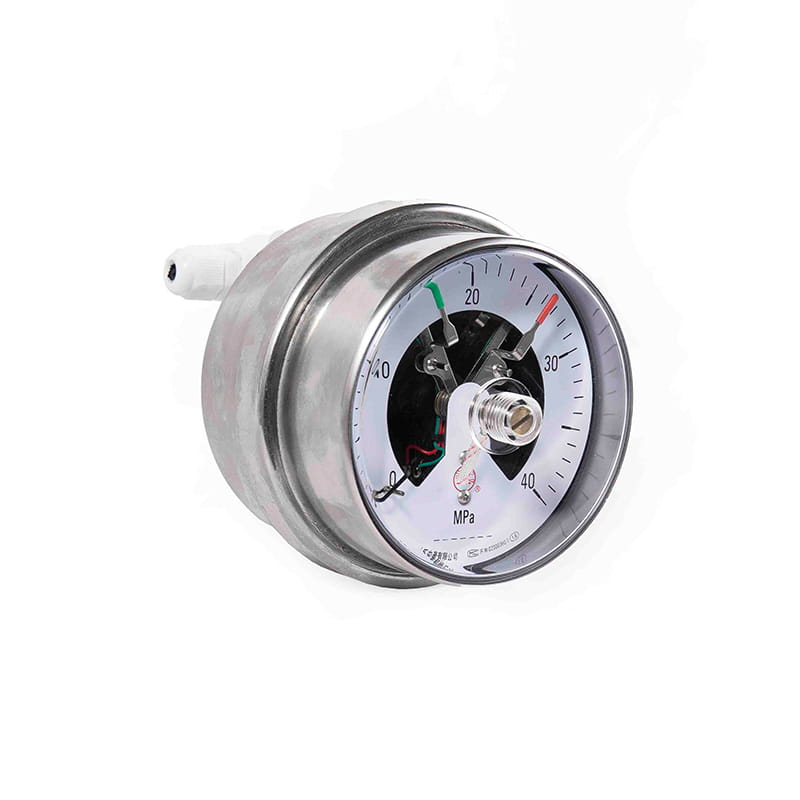

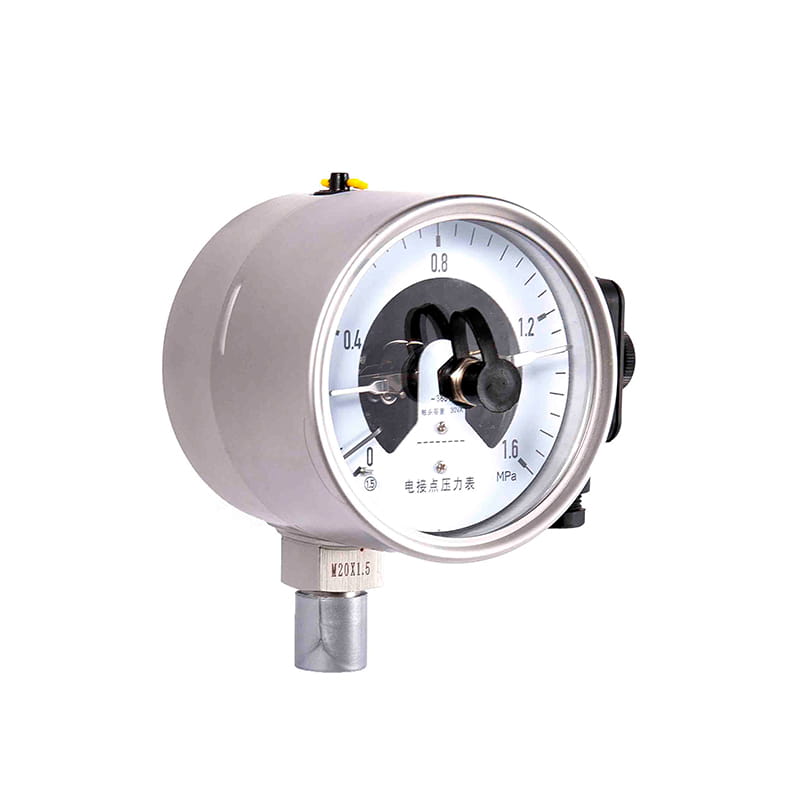

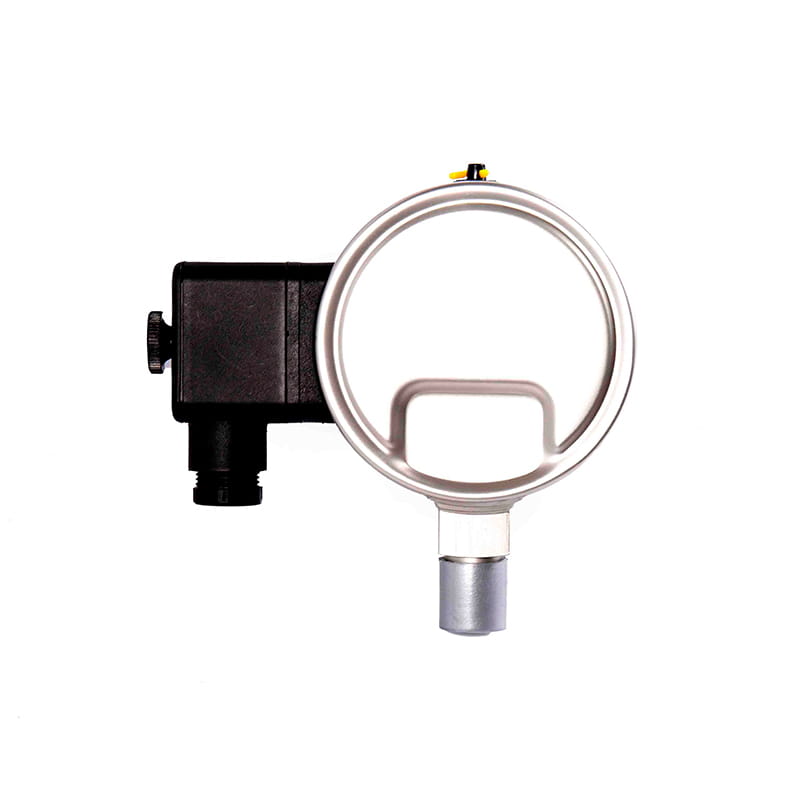

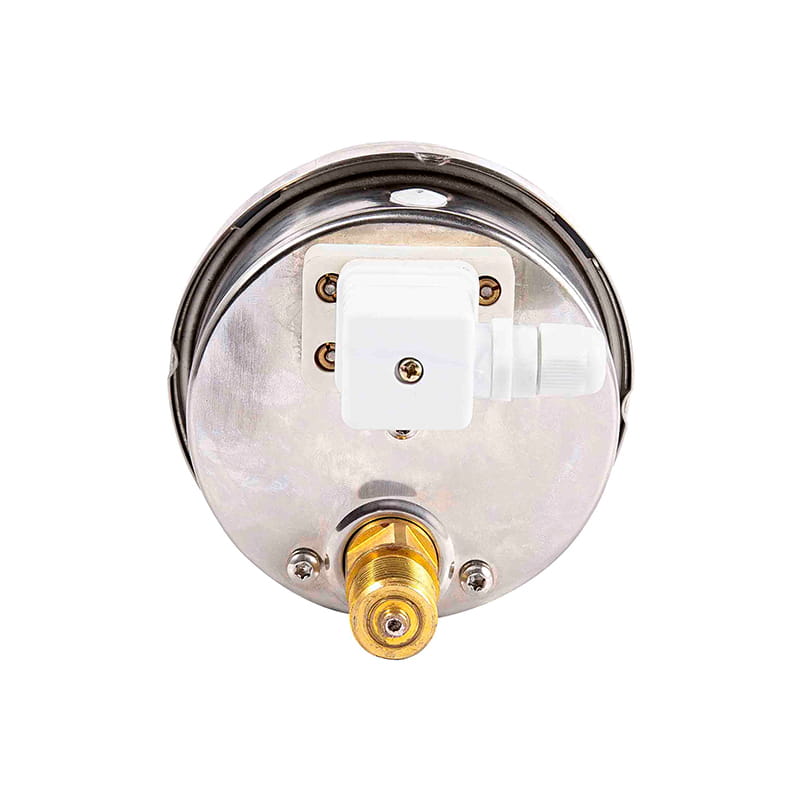

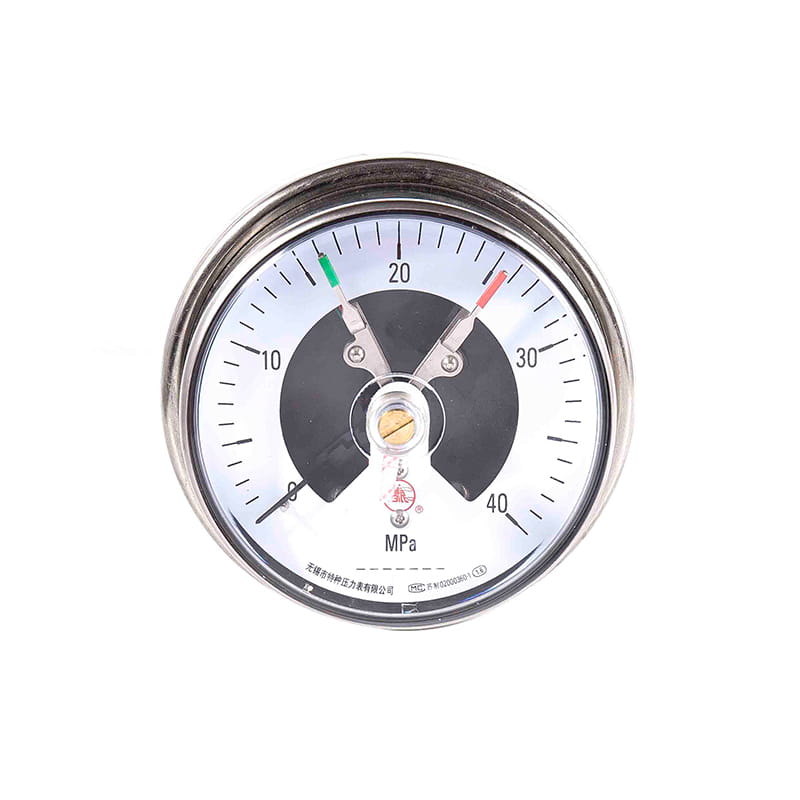

YXD series photoelectric electric contact pressure gauge

◆ Model: YXD100 YXD150

◆ Uses: Photoelectric electric contact pressure gauge is a substitute for the electric contact pressure gauge, it retains the advantages of the electric contact pressure gauge indication is intuitive, easy to adjust, and the instrument has made a fundamental improvement, the use of photoelectric sensor to form a contactless signal device, through the photoelectric controller in the integrated circuit amplification to drive the high-sensitivity relay output, so high sensitivity, fast response, high control accuracy, excellent switching characteristics. It is widely used in petroleum, chemical industry, metallurgy, nuclear energy technology and frequent switching process.

Photoelectric electric contact pressure gauge is suitable for stable and reliable measurement and control of the pressure of liquids, gases or vapors without explosion hazard, non-crystallization, non-solidification, and non-corrosive effect on copper and copper alloys.

Photoelectric electric contact pressure gauge has obtained a new utility patent, patent number: 99229277.8.

◆ If it is necessary to make a shockproof type pressure gauge, it can be filled with glycerin or silicone oil.

The photoelectric electric contact pressure gauge features a 1.6 accuracy class, ensuring sufficient measurement accuracy while maintaining reasonable costs. It is suitable for pressure monitoring in most mechanical equipment, piping systems, air compressors, and hydraulic systems.
The photoelectric electric contact pressure gauge supports an operating temperature range of -10℃ to 55℃ and a humidity of ≤75%, allowing it to operate stably in most indoor industrial environments, unaffected by typical temperature and humidity conditions.
Compared to traditional mechanical contacts, photoelectric control offers higher reliability, lower wear, and more sensitive operation, making it suitable for applications requiring frequent alarms or interlocking control.
