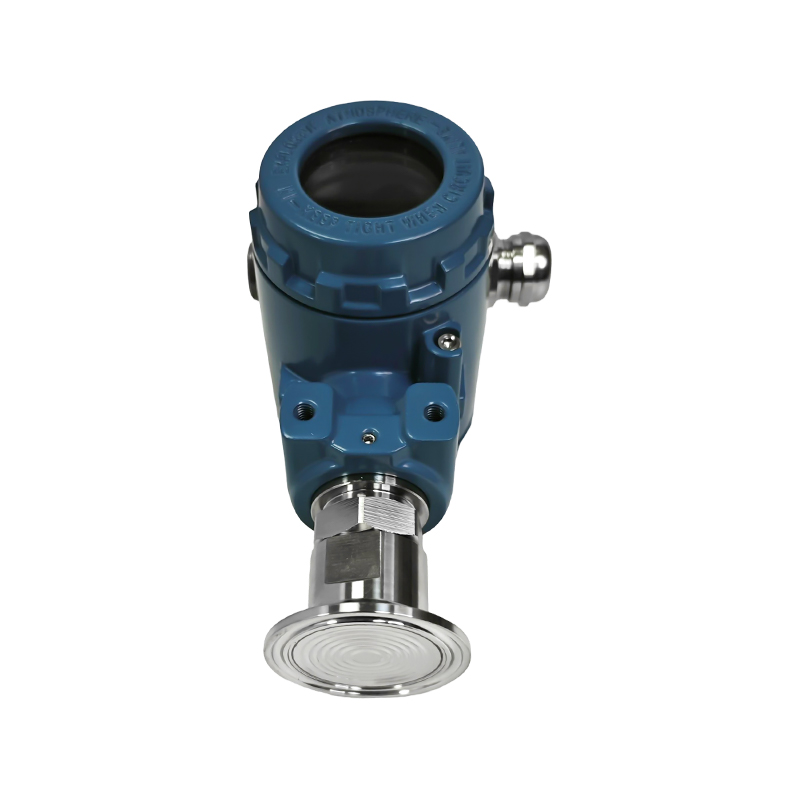

The sanitary flat membrane pressure transmitter directly senses the pressure signal using a flat membrane. It employs a high-precision silicon piezoresistive sensor as the pressure sensing element and has a dedicated integrated processing circuit inside that converts the millivolt signal from the sensor into standard current, voltage, or 485 digital signals for output. It can be directly connected to computers, control instruments, display instruments, etc. The flange end face of the PCM401KF is subjected to force, and the membrane is exposed to directly sense the pressure. This can prevent scaling, unhygienic conditions, and clogging caused by sticky pressure, and is widely used in sanitary industries such as food, medicine, beverages, and brewing, as well as in flammable and explosive environments where the measured medium may be prone to scaling.
Performance Parameters:
| Model | YSZC-5F5 |
| Supply Power | 12-36VDC |
| Output Signal | 4-20mA, RS485, and so on ...... |
| Range | -100kPa-1kPa...100MPa |
| compensation temperature | -10~70℃ |
| Medium Temperature | -40~200℃ (Customizable ultra-high-temperature type) |
| Operating Temperature | -20~70℃ |
| Shell | Aluminum casting shell, with option for stainless steel shell |
| Pressure Type | Differential Pressure, Absolute Pressure, Sealing Pressure |
| Accuracy | ±0.2%，±0.25%，±0.5% |
| Zero-point Temperature Drift | ±0.3%F.S/10℃ |
| Sensitivity temperature drift | ±0.3%F.S/10℃ |
| Overload Pressure | 150%F.S |
| Long-term Stability | ±0.2%F.S/y |
| Natural Frequency | 5kHz-650kHz |
| electrical connection | Direct lead / Aviation connector / Hirschmann (or can be customized) |
| Measuring Medium | Liquid or gas (compatible with the contacting material) |
| Process Connionect | Thread Connection/Hygienic Connection/Flange Connection(Customizable) |
Characteristic：
·316L stainless steel isolation diaphragm, HC276 diaphragm is also available.
·High-precision diffused silicon piezoresistive sensor.
·Various sanitary quick-fit clamps are available for selection, convenient to use.
·Optional with heat sink design, suitable for high-temperature media.
·Sturdy and well-sealed aluminum alloy housing, available in stainless steel material as well.
