Float level gauge UHB

The Float level gauge UHB is engineered for high-precision measurement, providing accurate and reliable liquid level readings essential for various industrial applications. Its advanced design incorporates enhanced software safety features, ensuring data integrity and minimizing the risk of measurement errors. This gauge is built with durable materials, allowing it to withstand challenging environments and resist corrosion, thereby extending its operational lifespan. The UHB’s versatility makes it suitable for use in water treatment plants, chemical processing facilities, and storage tanks. Its user-friendly interface facilitates easy setup and integration with existing systems, enhancing operational efficiency. By delivering precise measurements and robust safety features, the UHB float level gauge is an invaluable tool for maintaining optimal liquid levels across diverse industries.

Get A Quote

PREV：Radar level gauge TLRD NEXT：Float level controller UHK

Parameter
Contact Us

Technical parameters

Working power supply	12~35VDC	output	HART+4~20mA
Measurement accuracy	0.2% F.S.	Output current limiting	20.8mA
Excitation current	210uA	sensor	Reed switches, magnetoresistance, etc
load	250Ω or 500Ω	Transport and storage temperature	-40~120℃
Temperature coefficient	≤25ppm/℃ F.S.	Housing material	ABS
Operating temperature	-30~80℃	Mounting screws	M3*2

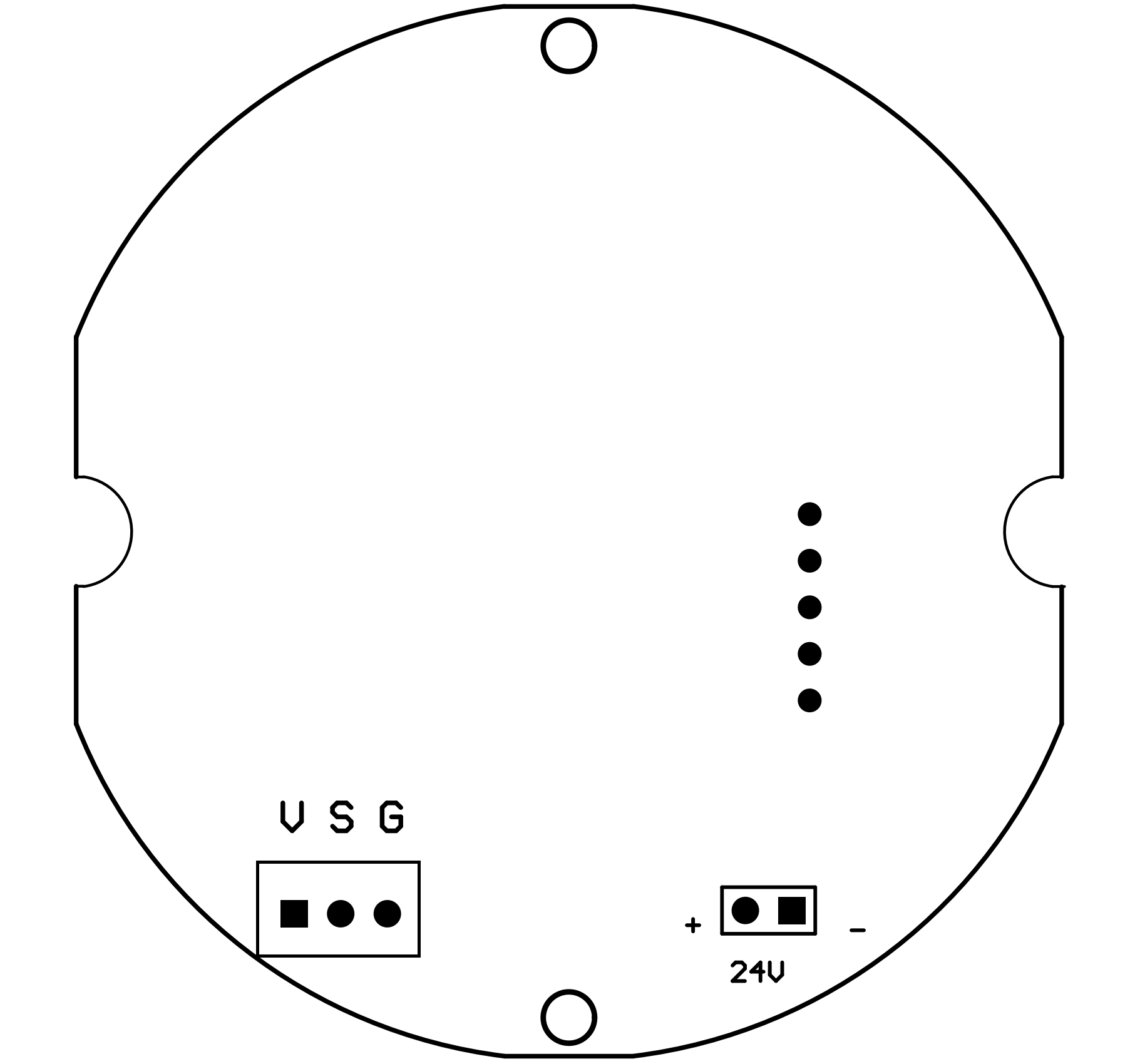

Wiring

The reluctance strip signal is installed in a stainless steel hermetically sealed protective tube:
