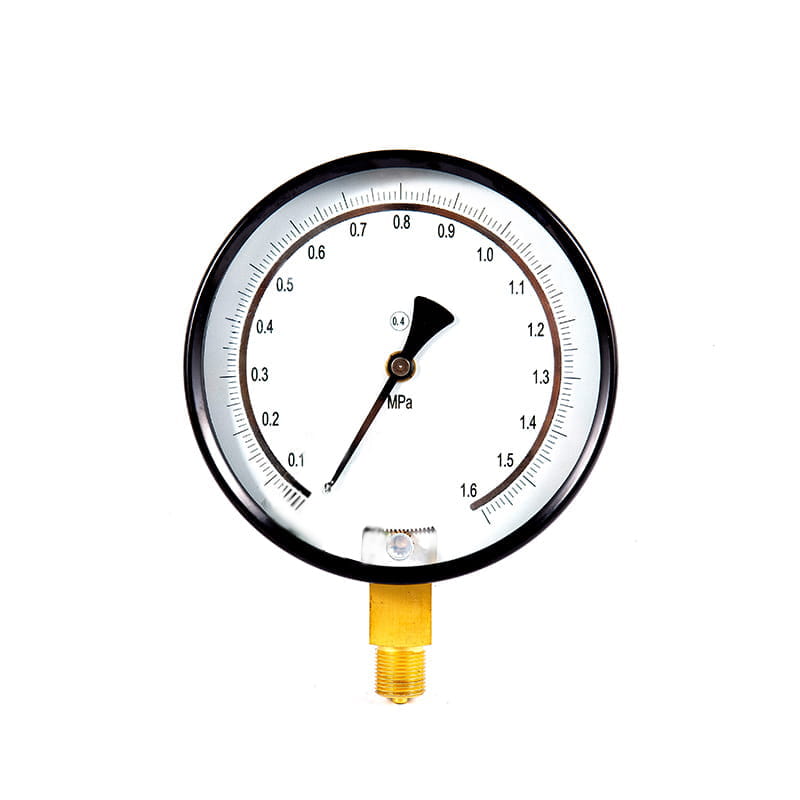

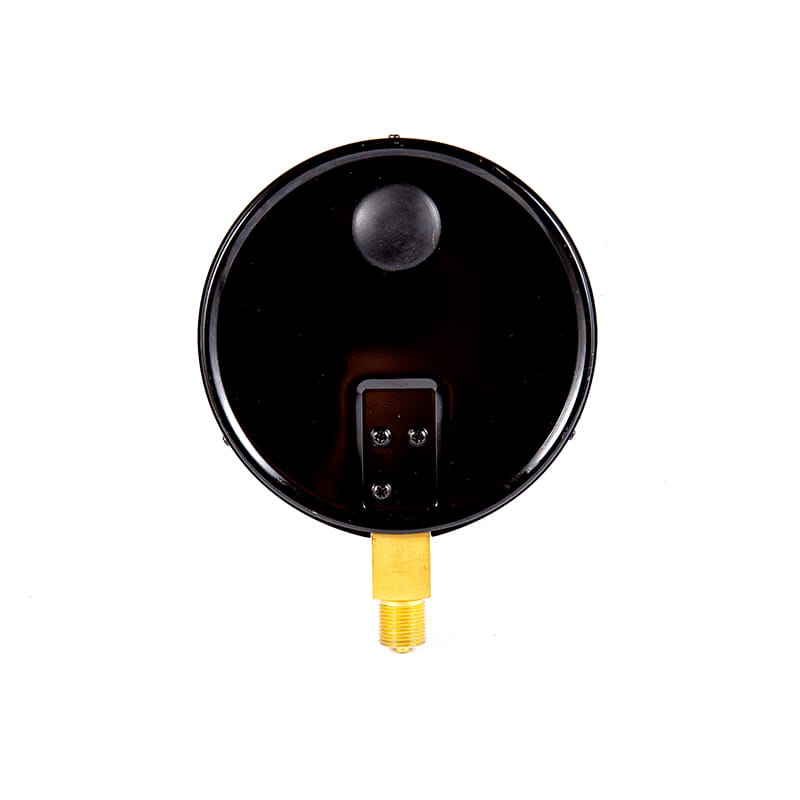

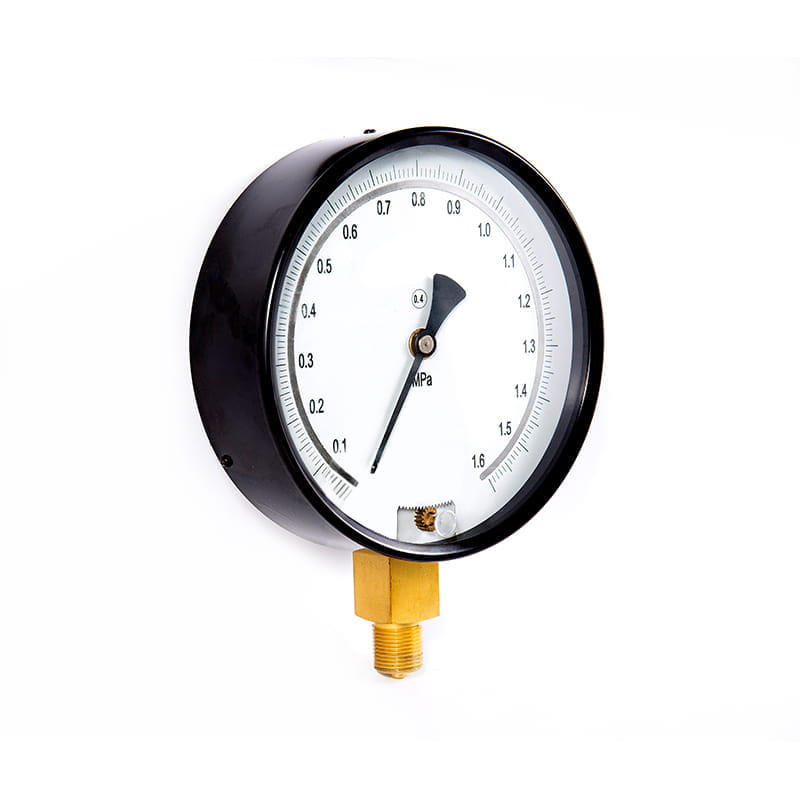

YJ series precision pressure gauge

◆ Model: YJ150 YJ150A
◆ Use: This series of instruments are mainly used to calibrate industrial or civil ordinary pressure gauges. It can also be used to accurately measure the pressure of non-corrosive, non-crystallizing and non-consolidating media such as copper alloy and alloy structural steel at the process site.
This series of instruments in the scale line under the setting of the mirror ring, in use can make the reading error is minimized.A type with zero device, in the process of use, if you find that the pointer does not return to zero, in the absence of media pressure can be fine-tuned pointer, so that it returns to zero to reduce the error.

Get A Quote

PREV：YQ series safety pressure gauge NEXT：YC series marine pressure gauge

Parameter
Contact Us

◆ Technical Parameters：

model number		YJ150	YJ150A
Nominal Diameter		Φ150
Installation form	Ⅰ	*	*
	Ⅳ	*	*
Connector Thread		M20×1.5
Accuracy Class		0.4
Measurement range （MPa）		Vacant：-0.1～0 Pressure vacuum：-0.1～0.06 -0.1～0.15 -0.1～0.3 -0.1～0.5 -0.1～0.9 -0.1～1.5 -0.1～2.4 Pressure：0～0.1 0～0.16 0～0.25 0～0.4 0～0.6 0～1 0～1.6 0～2.5 0～4 0～6 0～10 0～16 0～25 0～40 0～60 0～100
Environmental conditions of use		temp：20℃±3℃
vibration rating		V·H·2
protection class		IP54
Implementation standards		GB/T 1227
Note: 1. Joint threads can be customized according to user requirements.

◆ External Dimensions:

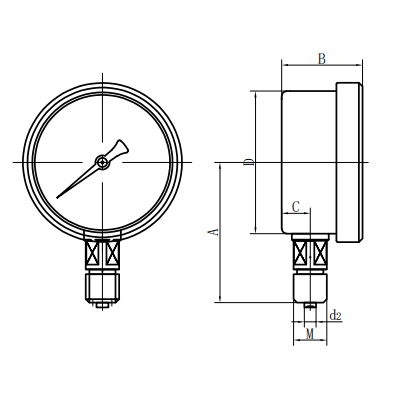

Radial direct type (Ⅰ)

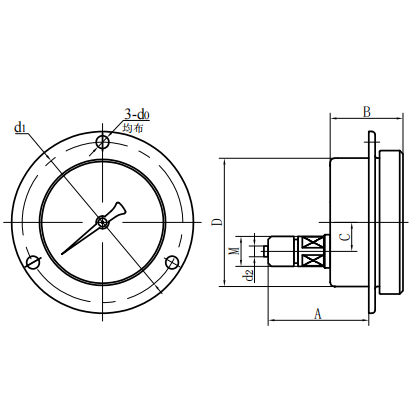

Axial eccentric direct type (Ⅱ)

model number	Overall dimensions（mm）
model number	A	B	C	D	d0	d1	d2	M
YJ150-Ⅰ YJ150A-Ⅰ	113	51	21	Φ150	/	/	Φ6	M20×1.5
YJ150-Ⅳ YJ150A-Ⅳ	79	51	55	Φ150	Φ6	Φ165	Φ6	M20×1.5
