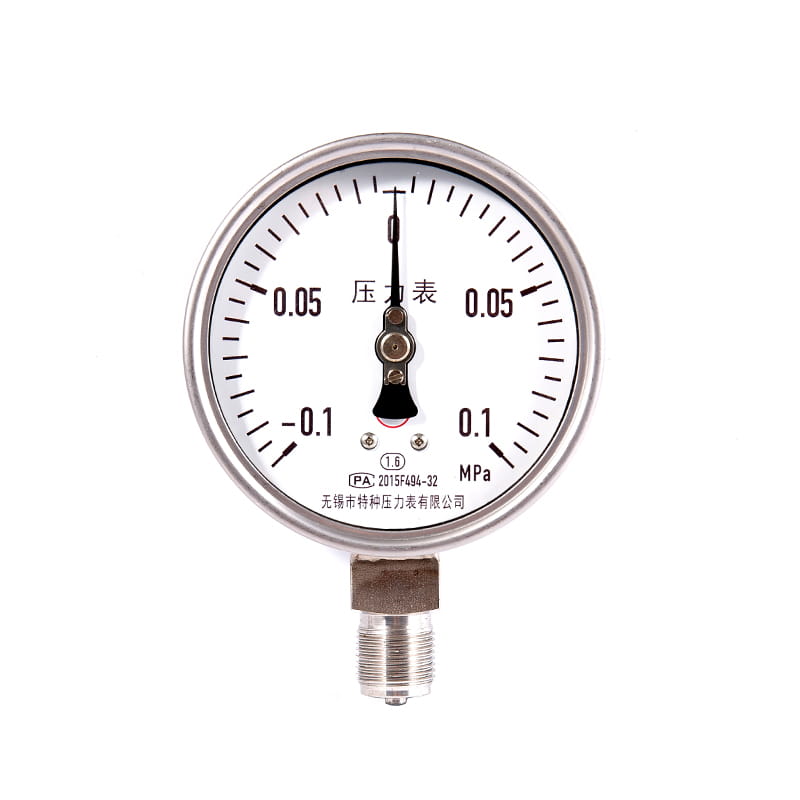

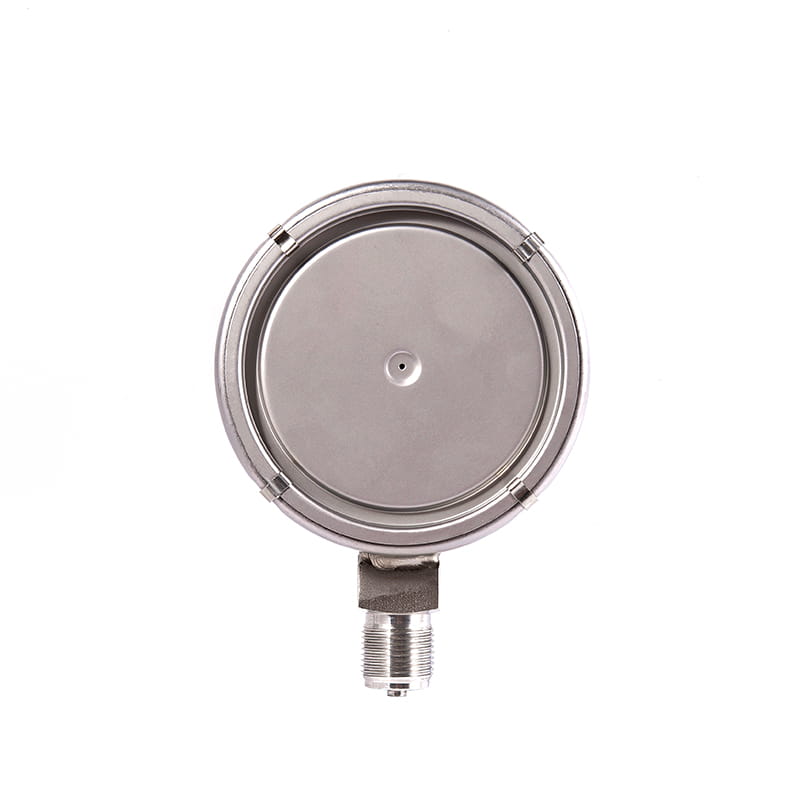

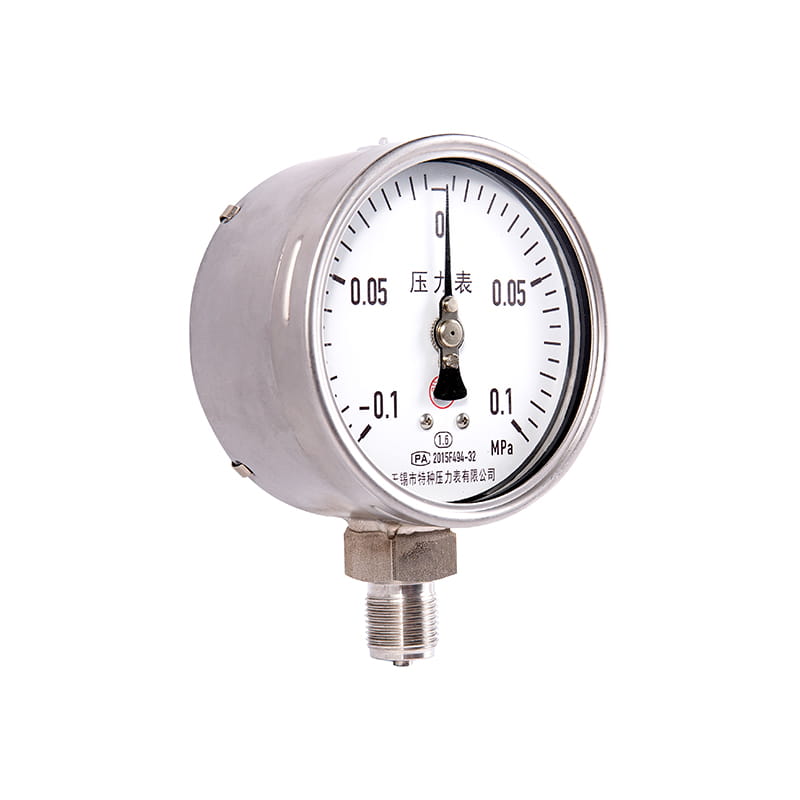

YQ series safety pressure gauge

◆ Model: YQ40 YQ50 YQ60 YQ75 YQ100 YQ150
◆ Use: This series of gauges are all made of stainless steel, with internal safety partition and pressure relief holes at the top to release excessive pressure inside the case due to rupture caused by overload or fatigue of elastic elements, to protect the safety of operators and equipment and facilities, and there is a liquid-filled stopper and an internal compensating diaphragm at the top of the gauge, which can be filled up with liquid at the site. Liquid-filled safety gauges are vibration-resistant, preventing damage to the inside of the gauge due to vibration, and lubricating the internal components to minimize wear and corrosion.
These gauges are widely used in drilling, refining, chemical, food, pharmaceutical, marine, offshore oil platforms and other industries.

Get A Quote

PREV：YJY series absolute pressure gauge NEXT：YJ series precision pressure gauge

Parameter
Contact Us

model number		YQ60	YQ100	YQ150
Nominal Diameter		Φ60	Φ100	Φ150
Installation form	Ⅰ	*	*	*
	Ⅱ	*	*	*
	Ⅲ	*	/	/
	Ⅳ	*	*	*
	Ⅴ	*	/	/
	Ⅵ	*	*	*
Connector Thread		M14×1.5	M20×1.5
Accuracy Class		2.5	1.6
Measurement range （MPa）		Vacant：-0.1～0 Pressure vacuum：-0.1～0.06 -0.1～0.15 -0.1～0.3 -0.1～0.5 -0.1～0.9 -0.1～1.5 -0.1～2.4 Pressure：0～0.1 0～0.16 0～0.25 0～0.4 0～0.6 0～1 0～1.6 0～2.5 0～4 0～6 0～10 0～16 0～25 0～40 0～60 0～100 0～160 0～250
Environmental conditions of use		temp：-40℃～70℃
vibration rating		V·H·3
Borden Tube Material		OCr18Ni12Mo2Ti；SUS316；SUS316L
Case and connector material		1Cr18Ni9Ti；SUS304
protection class		IP65
Implementation standards		GB/T1226
Note: 1. Joint threads can be customized according to user requirements.

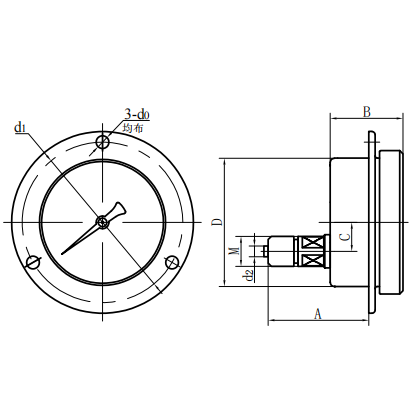

◆ External Dimensions:

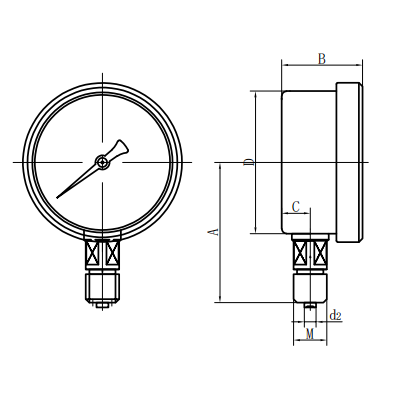

Radial direct type (Ⅰ)

Axial eccentric direct type (Ⅱ)

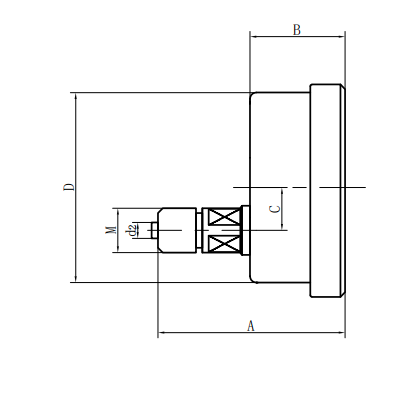

Axial concentric direct type (III)

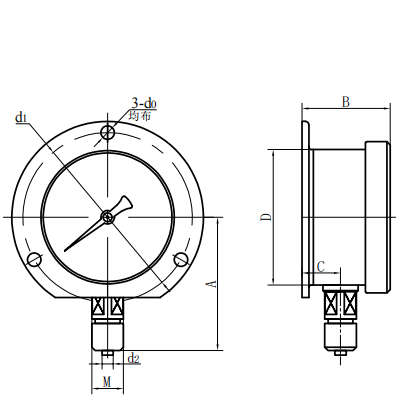

Axial eccentric insert type (IV)

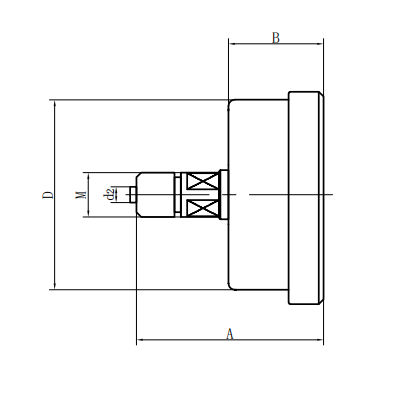

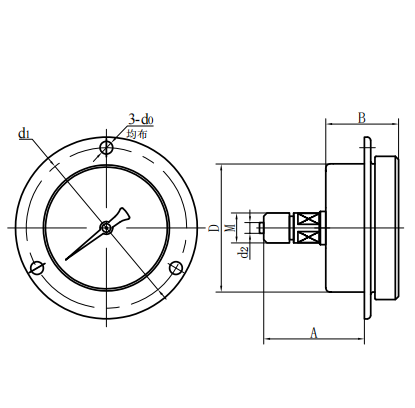

Axial concentric insertion type (V)

Radial convex type (VI)

model number	Overall dimensions（mm）
model number	A	B	C	D	d0	d1	d2	M
YQ60-Ⅰ	56	33	11	Φ60	/	/	Φ5	M14×1.5
YQ60-Ⅱ	61	32.5	18	Φ60	/	/	Φ5
YQ60-Ⅲ	61	32.5	/	Φ60	/	/	Φ5	M14×1.5
YQ60-Ⅳ	55	32.5	18	Φ60	Φ5	Φ75	Φ5
YQ60-Ⅴ	55	32.5	/	Φ60	Φ5	Φ75	Φ5	M14×1.5
YQ60-Ⅵ	56	33	11	Φ60	Φ5	Φ75	Φ5	M14×1.5
YQ100-Ⅰ	90	48	15	Φ100	/	/	Φ6	M20×1.5
YQ100-Ⅱ	83	44	34	Φ100	/	/	Φ6	M20×1.5
YQ100-Ⅳ	68	44	34	Φ100	Φ6	Φ118	Φ6	M20×1.5
YQ100-Ⅵ	90	48	15	Φ100	Φ6	Φ118	Φ6	M20×1.5
YQ150-Ⅰ	117	51	16.5	Φ150	/	/	Φ6	M20×1.5
YQ150-Ⅱ	92	52	55	Φ150	/	/	Φ6	M20×1.5
YQ150-Ⅳ	69	52	55	Φ150	Φ6	Φ165	Φ6	M20×1.5
YQ150-Ⅵ	117	53	28	Φ150	Φ6	Φ165	Φ6	M20×1.5
