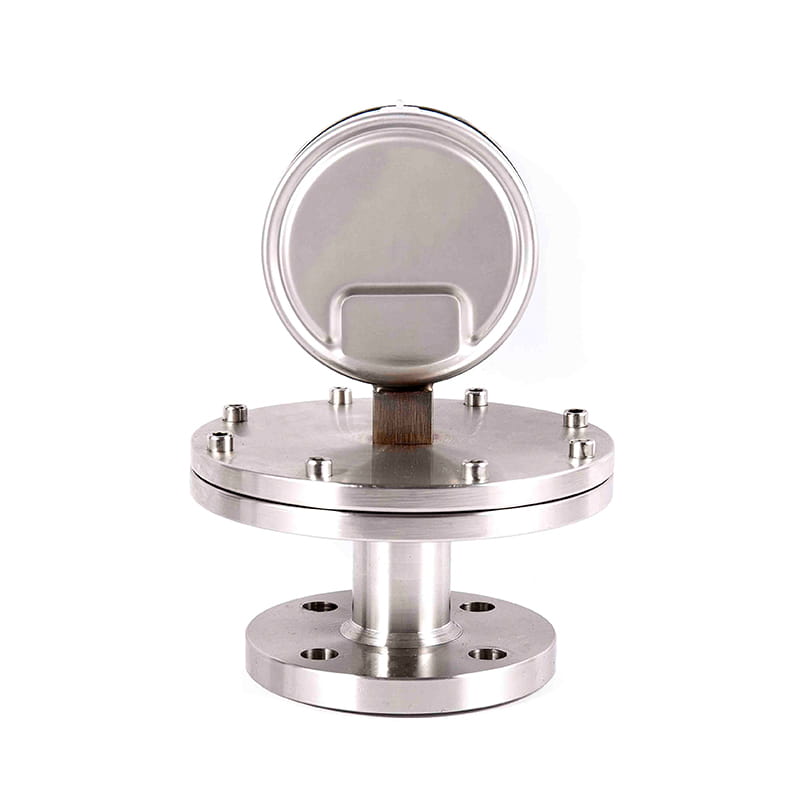

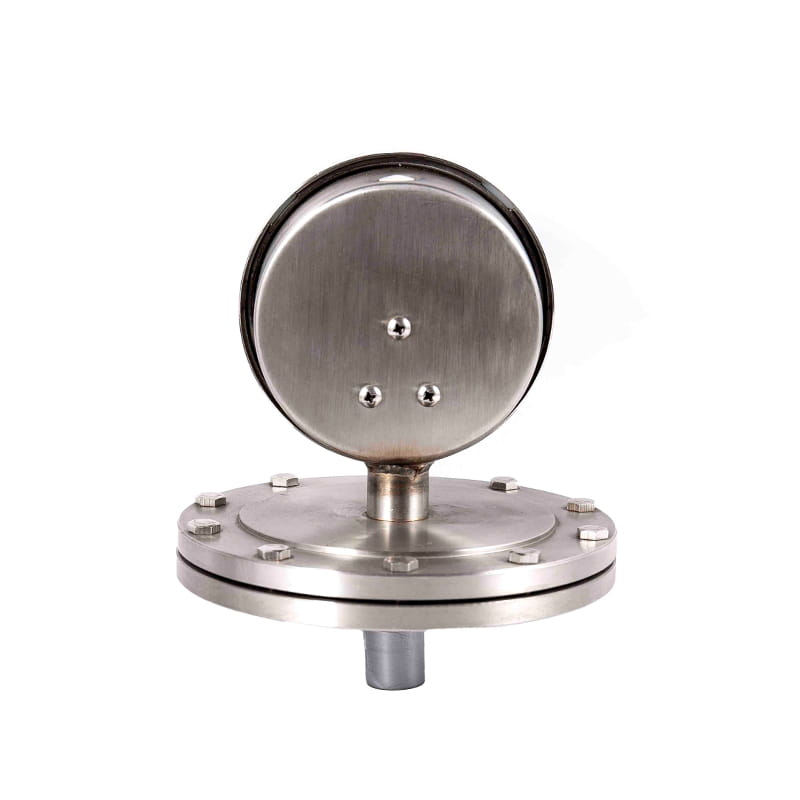

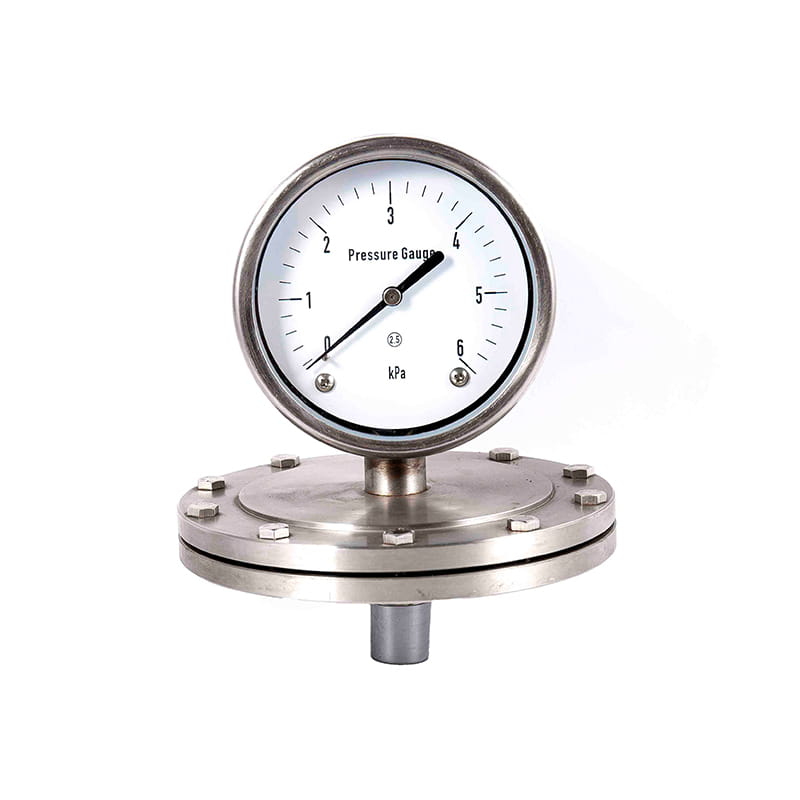

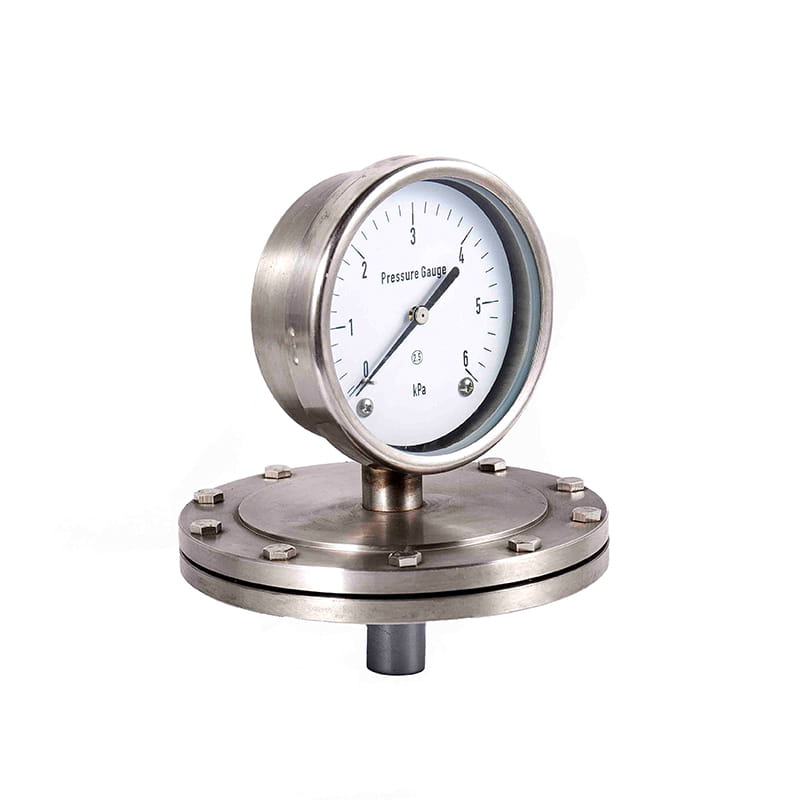

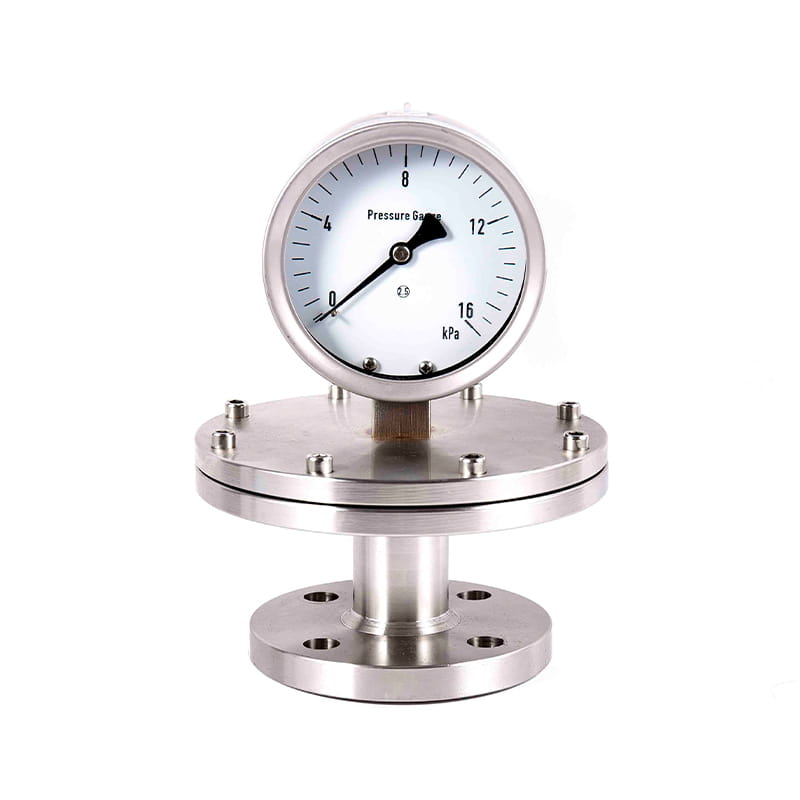

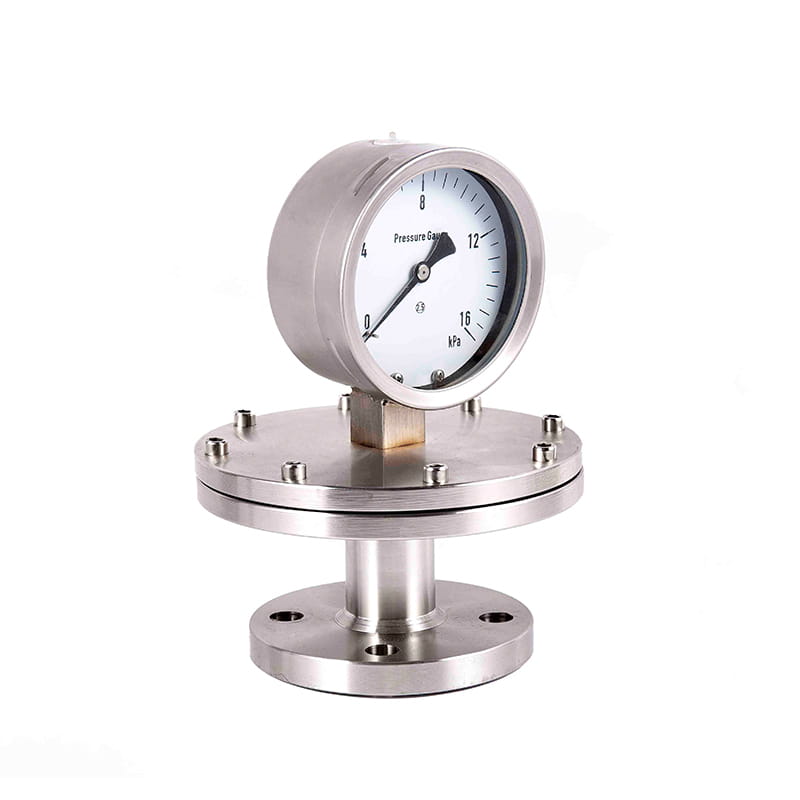

YP series diaphragm pressure gauges

◆ Model: YP100-L YP150-L YP100-F YP150-F

◆ Application: YP series instrument diaphragm and structural parts are made of stainless steel, which is suitable for measuring the pressure of liquid, gas or vapor with no explosion hazard, no crystallization, no solidification, and high viscosity.

Get A Quote

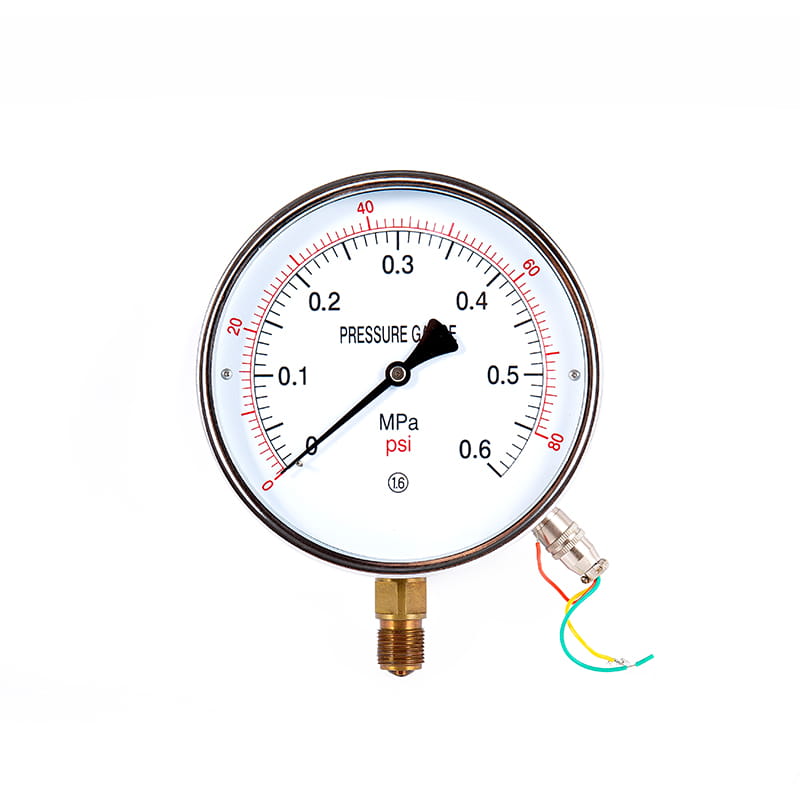

PREV：YTZ series resistor remote pressure gauges NEXT：Y-M Series diaphragm pressure gauges

Parameter
Contact Us

◆ Technical Parameters:

Model	YP100-L、YP100-F	YP150-L、YP150-F
Nominal diameter	F100	F150
Accuracy class	2.5
Measuring range （KPa）	Negative pressure: -60~0 -40~0 -25~0 -16~0 -10~0 0～10 -6～0 -4～0 -2.5～0 -1.6～0 Positive pressure: 0~1.6 0~2.5 0~4 0~6 0~1 0～1.6 0～2.5 Positive and negative pressure: -0.8~0.8 -1.2~1.2 -2~2 -3~3 -5～5 -8～8 -12～12 -20～20 -30～30
Measuring range （MPa）	Vacuum: -0.1~0 Pressure vacuum: -0.1~0.06 -0.1~0.15 -0.1~0.3 -0.1～0.5 -0.1～0.9 -0.1～1.5 -0.1～2.4 Pressure: 0~0.06 0~0.1 0~0.16 0~0.25 0~0.4 0～0.6 0～1 0～1.6 0～2.5
Use ambient temperature	-40℃～70℃
Diaphragm material	OCr18Ni12Mo2Ti; SUS316; SUS316L
Mounting type	Threaded (L); Flange (F), (F1)
Vibration resistance rating	V· H· 2
Ingress protection	IP64
Enforce the standard	JB/T 5491

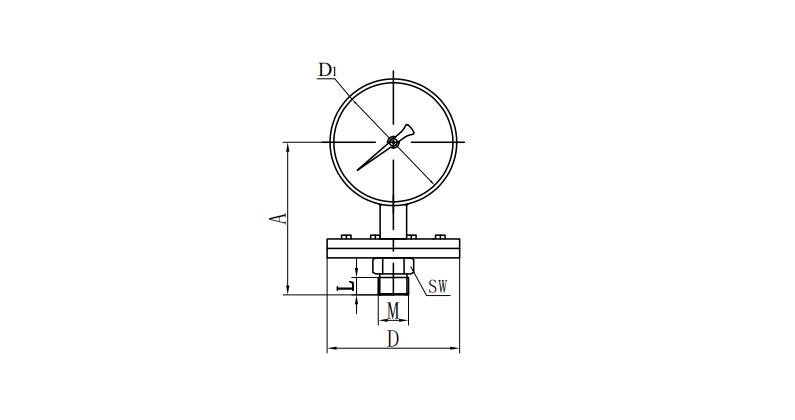

◆ External Dimensions:

Threaded (L)

Model	Dimensions(mm)
Model	A	D	D1	SW	L	M
YP100-L	135	Φ97.5 Micropressure Φ165	110	27	20	M20×1.5
YP150-L	160	Φ97.5 Micropressure Φ165	160	27	20	M20×1.5
Note: The joint thread (M) can be made into pipe thread or tapered pipe thread according to user requirements (see selection guide).
