YG high temperature resistant pressure gauge

◆ Model: YG60 YG100 YG150
◆ Use: All parts of this series of gauges are made of stainless steel, and the main parts are made of 1Cr18Ni9, OCr18Ni12Mo2Ti, SUS316, SUS316L, etc. The welding of each part is made by a special process. Among them, the corrosion-resistant high-temperature pressure gauge has excellent high-temperature and corrosion-resistant performance, suitable for corrosive environments, can detect weak corrosive, but not crystallization, non-consolidation, low viscosity high-temperature media. Widely used in petroleum, chemical, pesticide, rubber, natural gas and other industries.

Get A Quote

PREV：YLm series refrigerant pressure gauge NEXT：YEB series stainless steel diaphragm pressure gauge

Parameter
Contact Us

◆ Technical Parameters：

Model Number		YG60	YG100		YG150
Nominal Diameter		Φ60	Φ100		Φ150
Mounting Type	Ⅰ	*	*		*
	Ⅱ	*	*		*
	Ⅲ	*	/		/
	Ⅳ	*	*		*
	Ⅴ	*	/		/
	Ⅵ	*	*		*
Connector Thread		M14×1.5	M20×1.5
Accuracy Class		2.5		1.6
Measurement range （MPa）		Vacant：-0.1～0 Pressure vacuum：-0.1～0.06 -0.1～0.15 -0.1～0.3 -0.1～0.5 -0.1～0.9 -0.1～1.5 -0.1～2.4 Pressure：0～0.1 0～0.16 0～0.25 0～0.4 0～0.6 0～1 0～1.6 0～2.5 0～4 0～6 0～10 0～16 0～25 0～40 0～60 0～100、0～160、0～250
Environmental conditions of use		Temp：-40℃～70℃
Temperature		Direct Installation：≤150℃
		Temperature：≤500℃
Temperature effect error		Δ＝±（δ+KΔt） Δ——The permissible value of the display value error when the ambient temperature deviates from 20℃±5℃, and the permissible value of the display value error when the ambient temperature deviates from 20℃±5℃.% δ——the absolute value of the instrument's intrinsic error.% K——Temperature effect coefficient with a value of 0.04%/°C Δt——∣Temperature of the medium at the bourdon tube ℃ -25∣
Vibration Rating		V·H·3
Borden Tube Material		OCr18Ni12Mo2Ti；SUS316；SUS316L
Housing, connector material		1Cr18Ni9Ti；SUS304
Protection Class		IP65
Implementation Standards		GB/T 1226
Note: 1. Joint threads can be customized according to user requirements.

◆ External Dimensions:

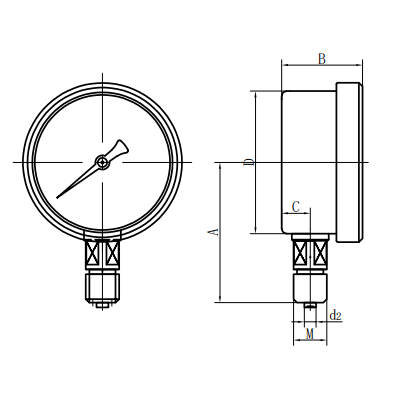

Radial direct type (Ⅰ)

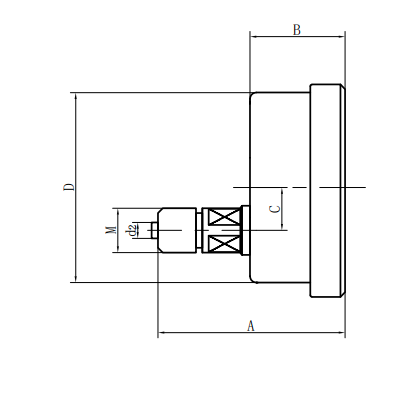

Axial eccentric direct type (Ⅱ)

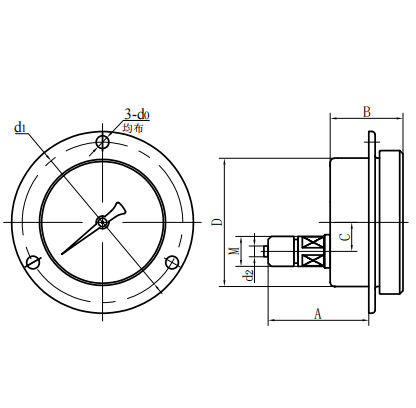

Axial concentric direct type (III)

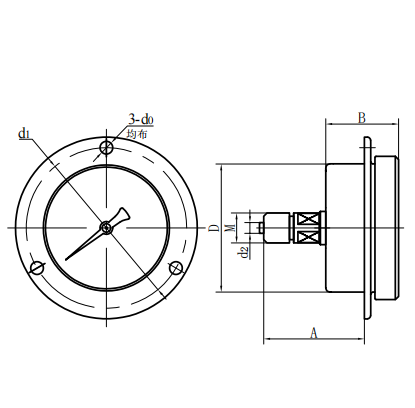

Axial eccentric insert type (IV)

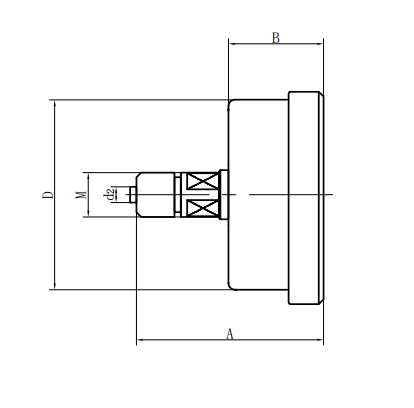

Axial concentric insertion type (V)

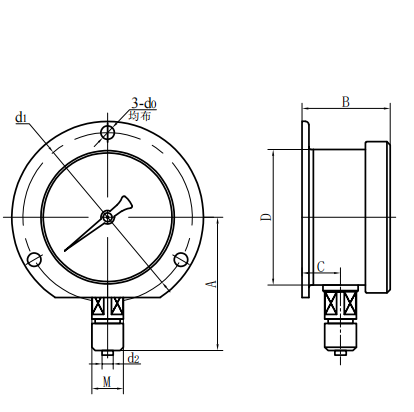

Radial convex type (VI)

Model Number	Overall Dimensions（mm）
Model Number	A	B	C	D	d0	d1	d2	M
YG60－Ⅰ	56	33	11	Φ60	/	/	Φ5	M14×1.5
YG60－Ⅱ	61	32.5	18	Φ60	/	/	Φ5
YG60－Ⅲ	61	32.5	/	Φ60	/	/	Φ5	M14×1.5
YG60－Ⅳ	55	32.5	18	Φ60	Φ5	Φ75	Φ5
YG60－Ⅴ	55	32.5	/	Φ60	Φ5	Φ75	Φ5	M14×1.5
YG60－Ⅵ	56	33	11	Φ60	Φ5	Φ75	Φ5	M14×1.5
YG100－Ⅰ	90	48	15	Φ100	/	/	Φ6	M20×1.5
YG100－Ⅱ	83	44	34	Φ100	/	/	Φ6	M20×1.5
YG100－Ⅳ	68	44	34	Φ100	Φ6	Φ118	Φ6	M20×1.5
YG100－Ⅵ	90	48	15	Φ100	Φ6	Φ118	Φ6	M20×1.5
YG150－Ⅰ	117	51	16.5	Φ150	/	/	Φ6	M20×1.5
YG150－Ⅱ	92	52	55	Φ150	/	/	Φ6	M20×1.5
YG150－Ⅳ	69	52	55	Φ150	Φ6	Φ165	Φ6	M20×1.5
YG150－Ⅵ	117	53	28	Φ150	Φ6	Φ165	Φ6	M20×1.5
