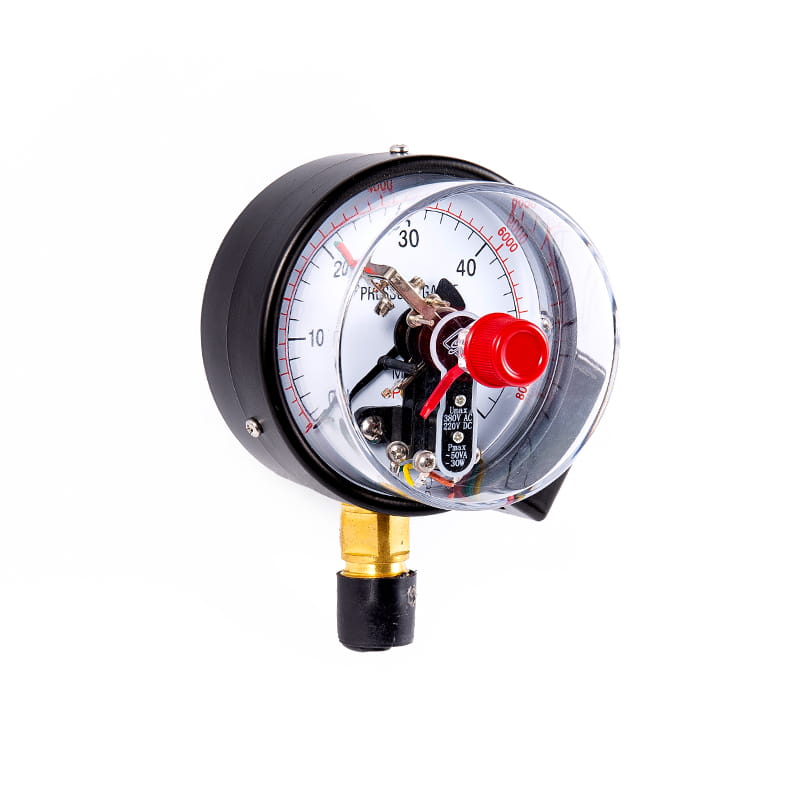

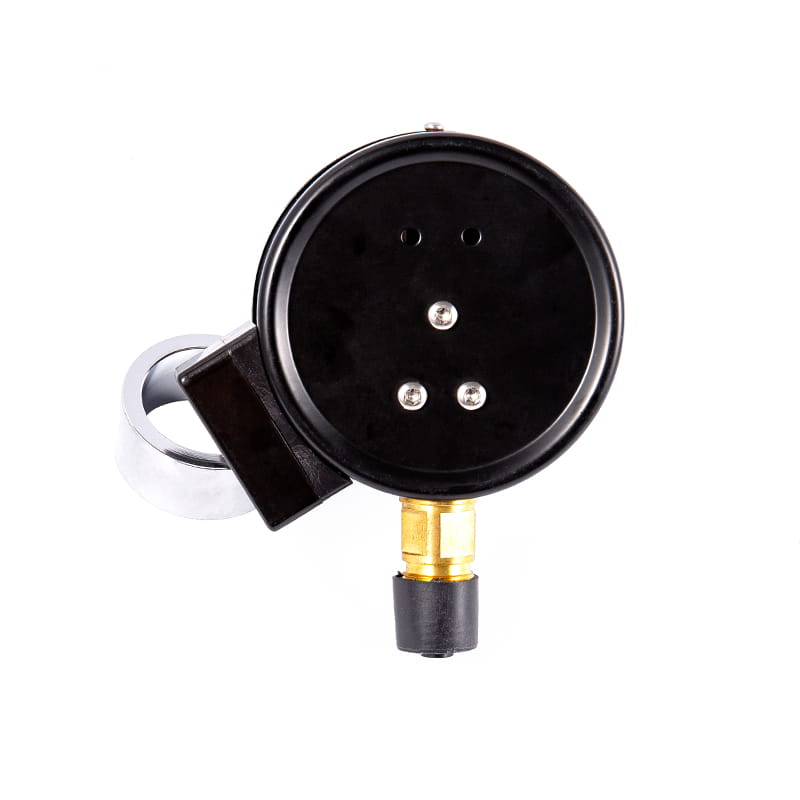

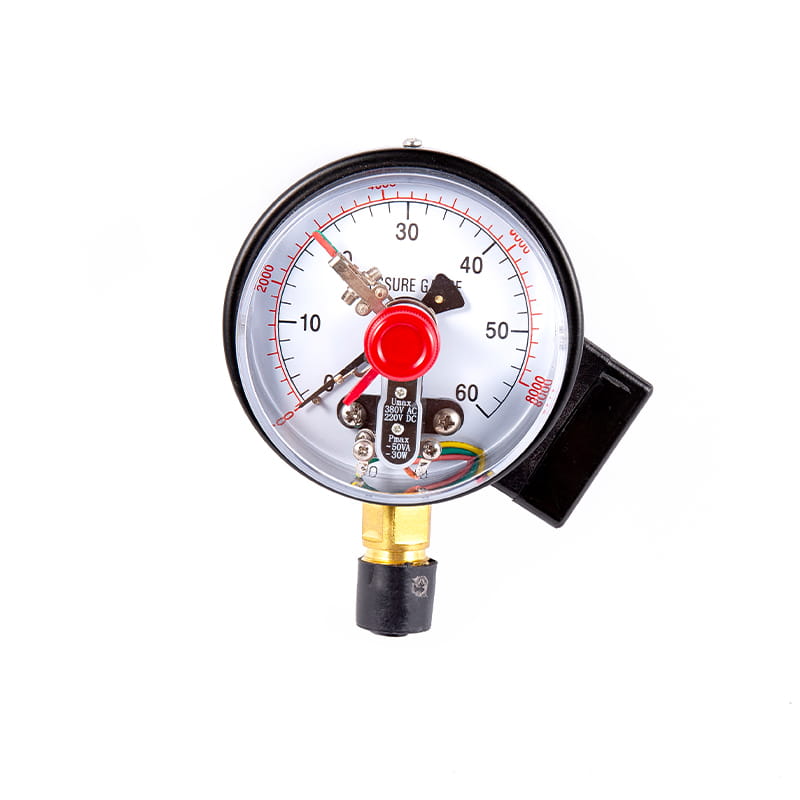

YXC series magnetic-assisted electric contact pressure gauges

◆ Model: YXC60 YX100 YXC-150

◆ Application: This type of instrument is suitable for measuring the pressure of liquids, gases or vapors without explosion hazard, no crystallization, no solidification, and no corrosive effect on copper and copper alloys. When it is equipped with a suitable circuit, it can send an alarm or automatic control to the pressure system to be measured and controlled.

YXC series products adopt magnetic-assisted electrical contact device, which has the advantages of stable and reliable action and large contact power.

◆ If it is necessary to make a shockproof type pressure gauge, it can be filled with glycerin or silicone oil.

Get A Quote

PREV：YXCh Series reed electric contact pressure gauge NEXT：CYBN series earthquake-resistant (seismic) stainless steel differential pressure gauges

Parameter
Contact Us

◆ Technical Parameters:

Model		YXC60		YXC100		YXC150
Nominal diameter		Φ60		Φ100		Φ150
quiet feign type style	Ⅰ	*		*		*
	Ⅱ	*		*		*
	Ⅲ	*		/		/
	Ⅳ	*		*		*
	Ⅴ	*		/		/
	Ⅵ	*		*		*
Fitting threads		M14×1.5		M20×1.5
Accuracy class		2.5		1.6
Measuring range （MPa）		True space: -0.1~0 Pressure vacuum: -0.1~0.06 -0.1~0.15 -0.1~0.3 -0.1～0.5 -0.1～0.9 -0.1～1.5 -0.1～2.4 Pressure: 0~0.1 0~0.16 0~0.25 0~0.4 0~0.6 0～1 0～1.6 0～2.5 0～4 0～6 0～10 0～16 0～25 0～40 0～60 0～100 0～160 0～250
Environmental conditions of use		Temperature: -40°C~70°C; Relative humidity: ≤85%
Electrical parameters		★ Maximum working voltage: 380V AC; 220V DC ★ Maximum contact power: 30VA ★ Control mode: The upper and lower limits, upper upper limits (double upper limits), lower lower limits (double lower limits) and other slow magnetic auxiliary contact switches can be adjusted in the full range
Wiring		Junction box	1		2		3	4
		Wiring color code	red		green		yellow	black
		Output terminals	upper limit		lower limit		public	earthing
Vibration resistance rating		V· H· 3
Bourdon tube material		QSn4-0.3
Ingress protection		IP54
Enforce the standard		JB/T 9273
Note: 1. The joint thread can be customized according to user requirements.

◆ Rated load reference value:

voltage (V)	Resistive load current value (A)		The value of the inductive load current （A）
voltage (V)	AC	DC	The value of the inductive load current （A）
380	0.08	/	0.045
220	0.135	0.13	0.065
110	0.27	0.25	0.18
50	0.5	0.4	0.2
≤40	≤1	/	/

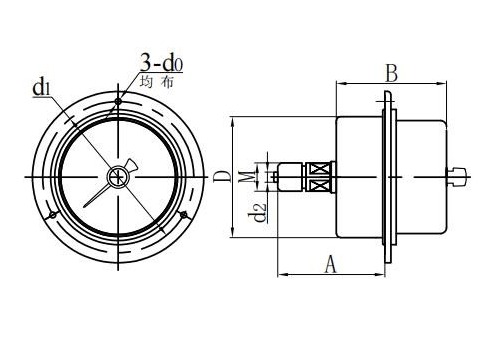

◆ Dimensions:

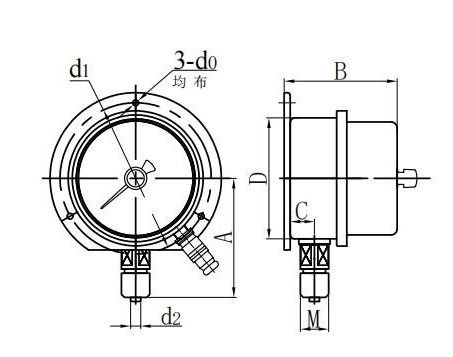

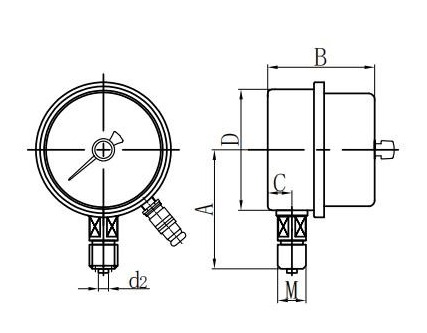

Radial Direct (I.)

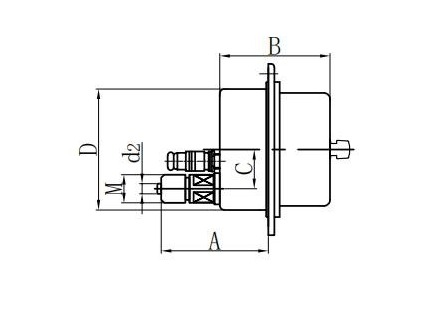

Axial Eccentric Direct (II.)

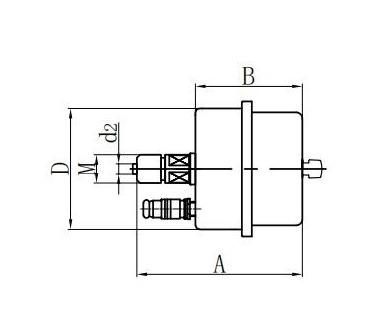

Axial concentric direct (III.)

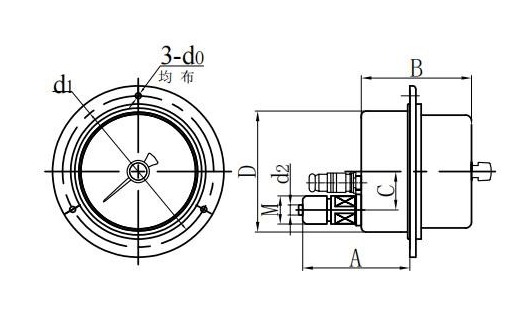

Axial eccentric flush (IV.)

Axial concentric flush mount (V.)

Radial convex mount (VI.)

Model	Dimensions(mm)
Model	A	B	C	D	d0	d1	d2	M
YXC60－Ⅰ	54	30	12	Φ60	/	/	Φ5	M14×1.5
YXC60－Ⅱ	63	34	18	Φ60	/	/	Φ5
YXC60－Ⅲ	58	30	/	Φ60	/	/	Φ5	M14×1.5
YXC60－Ⅳ	45	34	18	Φ60	Φ5	Φ75	Φ5
YXC60－Ⅴ	45	34	/	Φ60	Φ5	Φ75	Φ5	M14×1.5
YXC60－Ⅵ	54	30	12	Φ60	Φ5	Φ75	Φ5	M14×1.5
YXC100－Ⅰ	89	72	17	Φ100	/	/	Φ6	M20×1.5
YXC100－Ⅱ	112	72	30	Φ100	/	/	Φ6	M20×1.5
YXC100－Ⅳ	78	72	30	Φ100	Φ6	Φ118	Φ6	M20×1.5
YXC100－Ⅵ	89	72	17	Φ100	Φ6	Φ118	Φ6	M20×1.5
YXC150－Ⅰ	113	79	18	Φ150	/	/	Φ6	M20×1.5
YXC150－Ⅱ	118	79	45(30)	Φ150	/	/	Φ6	M20×1.5
YXC150－Ⅳ	115	79	45(30)	Φ150	Φ6	Φ165	Φ6	M20×1.5
YXC150－Ⅵ	113	79	18	Φ150	Φ6	Φ165	Φ6	M20×1.5
