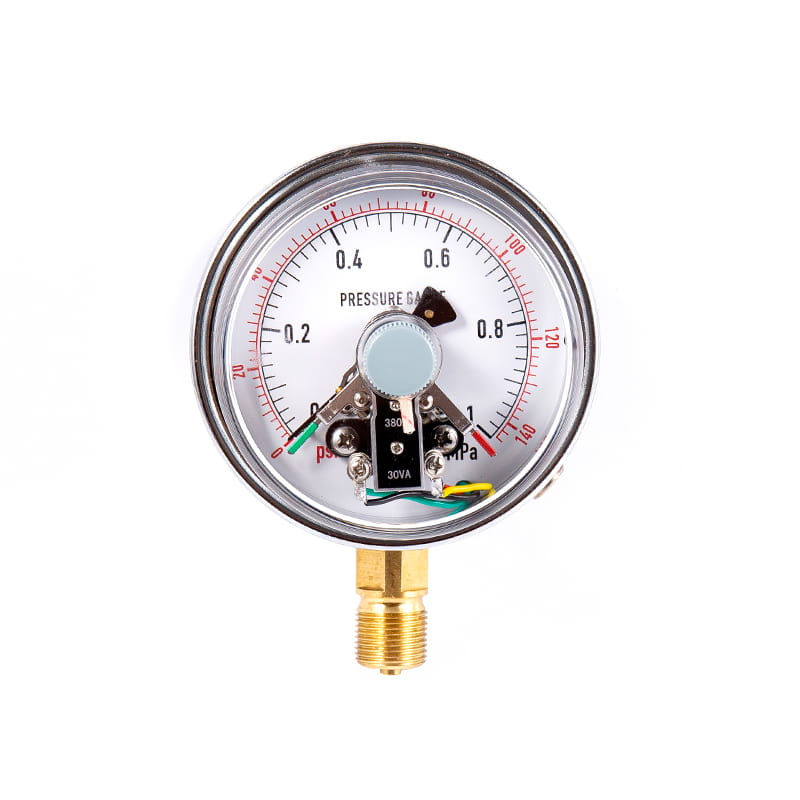

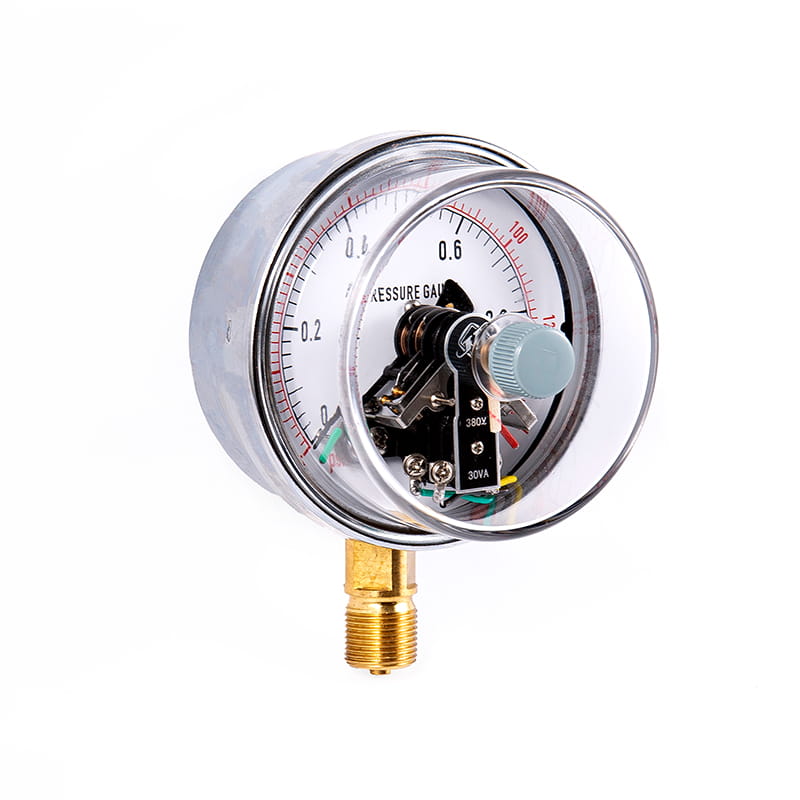

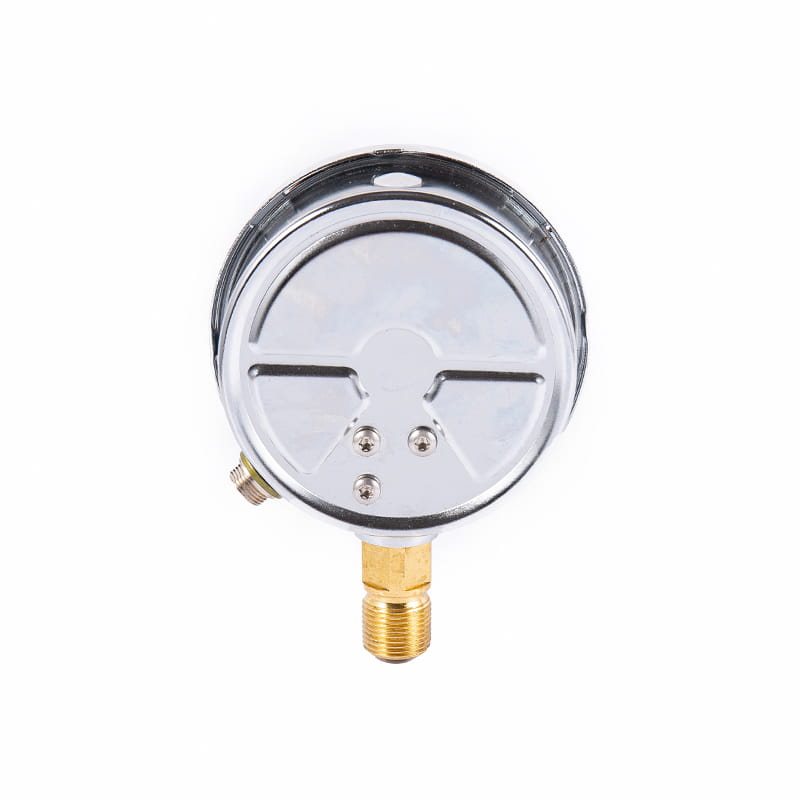

YXCh Series reed electric contact pressure gauge

◆ Model: YXCh100 YXCh150

◆ Application: Reed electric contact pressure gauge is suitable for measuring the pressure of liquids, gases or vapors without explosion hazard, no crystallization, no solidification, and no corrosive effect on copper and copper alloys. When it is equipped with a suitable circuit system, it can send an alarm or automatic control to the pressure system to be measured and controlled.

Reed electric contact pressure gauge improves the contact into a vacuum device, which avoids the poor contact caused by oxidation of the contact, so it has the characteristics of fast and sensitive response and reliable contact contact, and is a rookie that can replace the magnetic contact pressure gauge under the working conditions of low power and low voltage.

◆ If it is necessary to make a shockproof type pressure gauge, it can be filled with glycerin or silicone oil.

The Reed electric contact pressure gauge features a 1.6 accuracy class, meeting the requirements for general pressure monitoring. It provides stable readings with controllable errors, making it ideal for installation in piping systems, air compressors, water treatment equipment, and general mechanical devices.
According to the parameter table, a wide range of measurement ranges are available, including:
● Vacuum range: -0.1 to 0
● Negative pressure range: -0.1 to -0.06 / -0.1 to -0.5 / -0.1 to -2.4 MPa
● Positive pressure range: 0 to 0.1 / 0 to 0.6 / 0 to 1.6 / 0 to 10 / 0 to 25 / 0 to 160 / 0 to 250 MPa
This wide range of measurement options allows the pressure gauge to be used in various scenarios, from micro-pressure monitoring to high-pressure system control, and is particularly suitable for industrial environments with multiple operating conditions.
The Reed switch control offers high reliability and sensitive operation.
The reed switch contact structure has the following advantages:
No sparks, no mechanical friction, and long contact life;
Fast action and high repeatability, suitable for frequent start-stop control.

Get A Quote

◆ Technical Parameters:

Model		YXCh100			YXCh150
Nominal diameter		Φ100			Φ150
Mounting type	Ⅰ	*			*
	Ⅱ	*			*
	Ⅳ	*			*
	Ⅵ	*			*
Fitting threads		M20×1.5
Accuracy class		1.6
Measuring range （MPa）		True space: -0.1~0 Pressure vacuum: -0.1~0.06 -0.1~0.15 -0.1~0.3 -0.1~0.5 -0.1～0.9 -0.1～1.5 -0.1～2.4 Pressure: 0~0.1 0~0.16 0~0.25 0~0.4 0~0.6 0～1 0～1.6 0～2.5 0～4 0～6 0～10 0～16 0～25 0～40 0～60 0～100 0～160 0～250
Environmental conditions of use		Temperature: -10°C~55°C; Relative humidity: ≤75%
Electrical parameters		★ Rated voltage: 24V DC ★ Rated current: 0.25A ★ Electrical life: 105 times ★ Control mode: The full scale can adjust the upper and lower limits, upper upper limits (double upper limits), lower lower limits (double lower limits) and other slow reed switches
Wiring		Aviation plugs	1	2		3	4
		Line color	red	green		yellow	black
		Output terminals	upper limit	lower limit		public	earthing
Vibration resistance rating		V· H· 3
Bourdon tube material		QSn4-0.3
Ingress protection		IP54
Enforce the standard
Note: The joint thread can be made into pipe thread or tapered pipe thread according to user requirements (see selection guide).

◆ Dimensions:

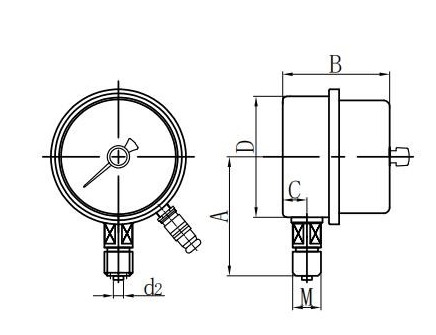

Radial Direct (I.)

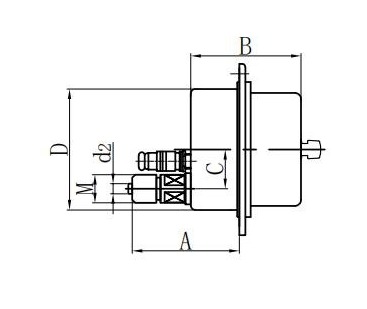

Axial Eccentric Direct (II.)

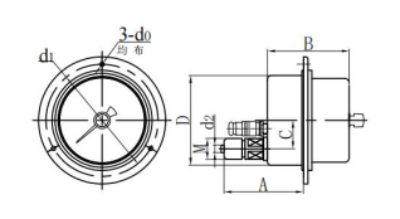

Axial eccentric flush mount (IV.)

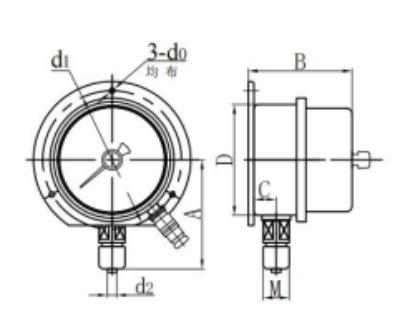

Radial convex mount (VI.)

Model	Dimensions(mm)
Model	A	B	C	D	d0	d1	d2	M
YXCh100-Ⅰ	89	72	17	Φ100	/	/	Φ6	M20×1.5
YXCh100-Ⅱ	112	72	30	Φ100	/	/	Φ6	M20×1.5
YXCh100-Ⅳ	78	72	30	Φ100	Φ6	Φ118	Φ6	M20×1.5
YXCh100-Ⅵ	89	72	17	Φ100	Φ6	Φ118	Φ6	M20×1.5
YXCh150-Ⅰ	113	79	18	Φ150	/	/	Φ6	M20×1.5
YXCh150-Ⅱ	118	79	45(30)	Φ150	/	/	Φ6	M20×1.5
YXCh150-Ⅳ	115	79	45(30)	Φ150	Φ6	Φ165	Φ6	M20×1.5
YXCh150-Ⅵ	113	79	18	Φ150	Φ6	Φ165	Φ6	M20×1.5
