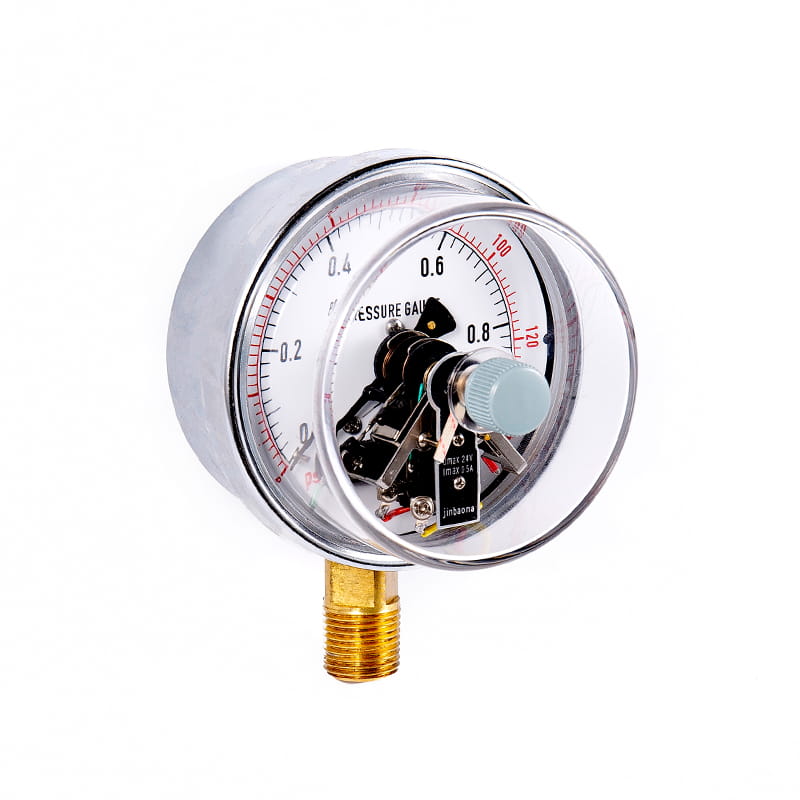

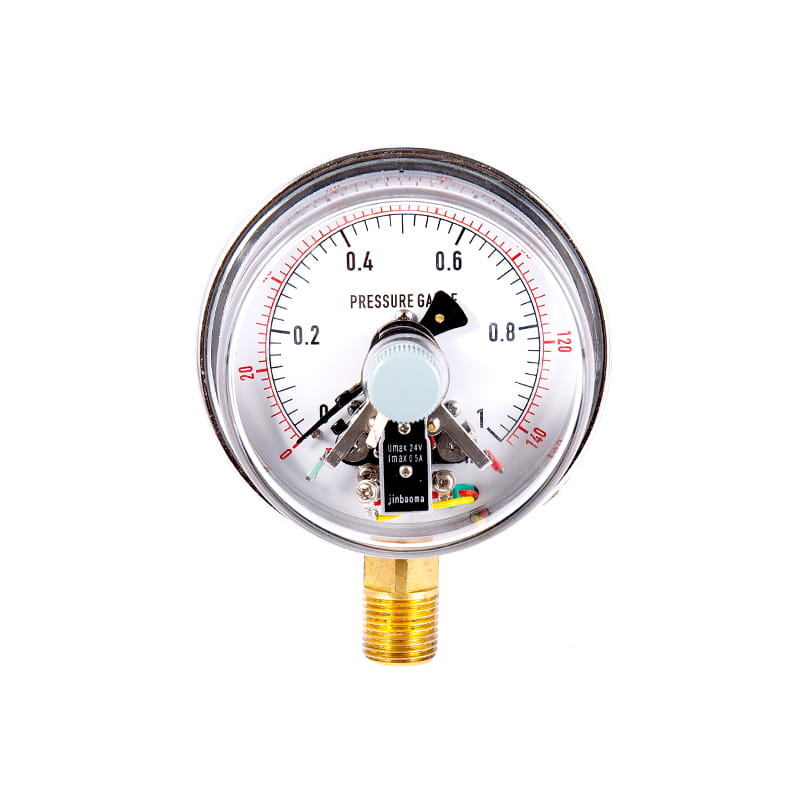

YXCm series magnetic sensitive electric contact pressure gauge

◆ Model: YXCm100 YXCm150

◆ Uses: This kind of instrument is an ideal alternative to the magnetic-assisted electric contact pressure gauge, it retains the advantages of the traditional electric contact pressure gauge with intuitive indication and simple adjustment, and makes fundamental improvements to the inside of the instrument, using magnetic induction integrated circuit to collect signals, with no mechanical contact, no spark anti-interference, fast and sensitive response, safe and reliable work, accurate signal setting and other characteristics. It can be easily interconnected with PC boards, optocouplers, program controllers and other electronic circuits, and can directly drive small power relays or contactors.

The instrument is suitable for measuring the pressure of liquids, gases or vapors that are non-explosive, non-crystallized, non-solidifying, and have no corrosive effect on copper and copper alloys.

◆ If it is necessary to make a shockproof type pressure gauge, it can be filled with glycerin or silicone oil.

Get A Quote

PREV：YXD series photoelectric electric contact pressure gauge NEXT：YXCh Series reed electric contact pressure gauge

Parameter
Contact Us

◆ Technical Parameters:

Model		YXCm100			YXCm150
Nominal diameter		Φ100			Φ150
Mounting type	Ⅰ	*			*
	Ⅱ	*			*
	Ⅳ	*			*
	Ⅵ	*			*
Fitting threads		M20×1.5
Accuracy class		1.6
Measuring range （MPa）		True space: -0.1~0 Pressure vacuum: -0.1~0.06 -0.1~0.15 -0.1~0.3 -0.1~0.5 -0.1～0.9 -0.1～1.5 -0.1～2.4 Pressure: 0~0.1 0~0.16 0~0.25 0~0.4 0~0.6 0～1 0～1.6 0～2.5 0～4 0～6 0～10 0～16 0～25 0～40 0～60 0～100 0～160 0～250
Environmental conditions of use		Temperature: -10°C~55°C; Relative humidity: ≤75%
Electrical parameters		★ Max Load: 5A 220V AC; 5A 30V DC ★ Power supply voltage: 24V DC ★ Power consumption: ≤1.5VA ★ Electrical life: 105 times ★ Control mode: full-scale adjustable upper and lower limits, upper upper limits (double upper limits), lower lower limits (double lower limits) and other slow magnetic induction switches
Wiring		Aviation plugs	1	2		3	4	5
		Line color	red	green		yellow	black	palm tree
		Output terminals	upper limit	lower limit		public	power supply negative electrode	power supply cathode
Vibration resistance rating		V· H· 3
Bourdon tube material		QSn4-0.3
Ingress protection		IP54
Enforce the standard
Note: The joint thread can be made into pipe thread or tapered pipe thread according to user requirements (see selection guide).

◆ Dimensions:

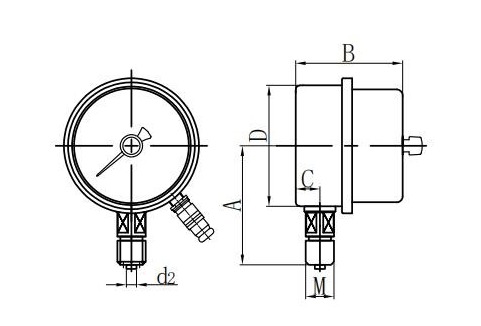

Radial Direct (I.)

Axial Eccentric Direct (II.)

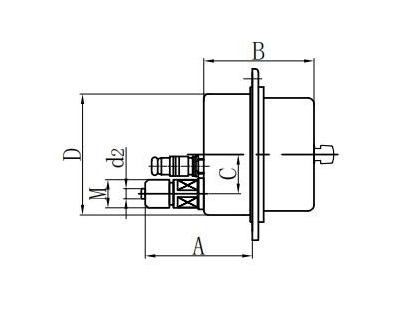

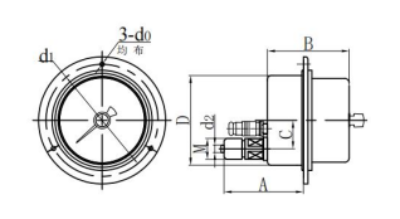

Axial eccentric flush mount (IV.)

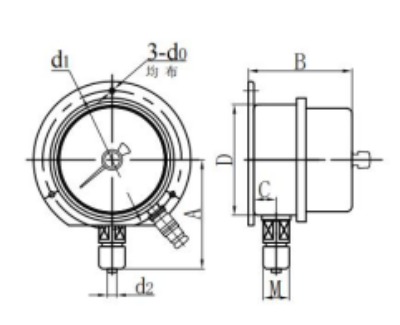

Radial convex mount (VI.)

Model	Dimensions(mm)
Model	A	B	C	D	d0	d1	d2	M
YXCm100-Ⅰ	89	72	17	Φ100	/	/	Φ6	M20×1.5
YXCm100-Ⅱ	112	72	30	Φ100	/	/	Φ6	M20×1.5
YXCm100-Ⅳ	78	72	30	Φ100	Φ6	Φ118	Φ6	M20×1.5
YXCm100-Ⅵ	89	72	17	Φ100	Φ6	Φ118	Φ6	M20×1.5
YXCm150-Ⅰ	113	79	18	Φ150	/	/	Φ6	M20×1.5
YXCm150-Ⅱ	118	79	45(30)	Φ150	/	/	Φ6	M20×1.5
YXCm150-Ⅳ	115	79	45(30)	Φ150	Φ6	Φ165	Φ6	M20×1.5
YXCm150-Ⅵ	113	79	18	Φ150	Φ6	Φ165	Φ6	M20×1.5
