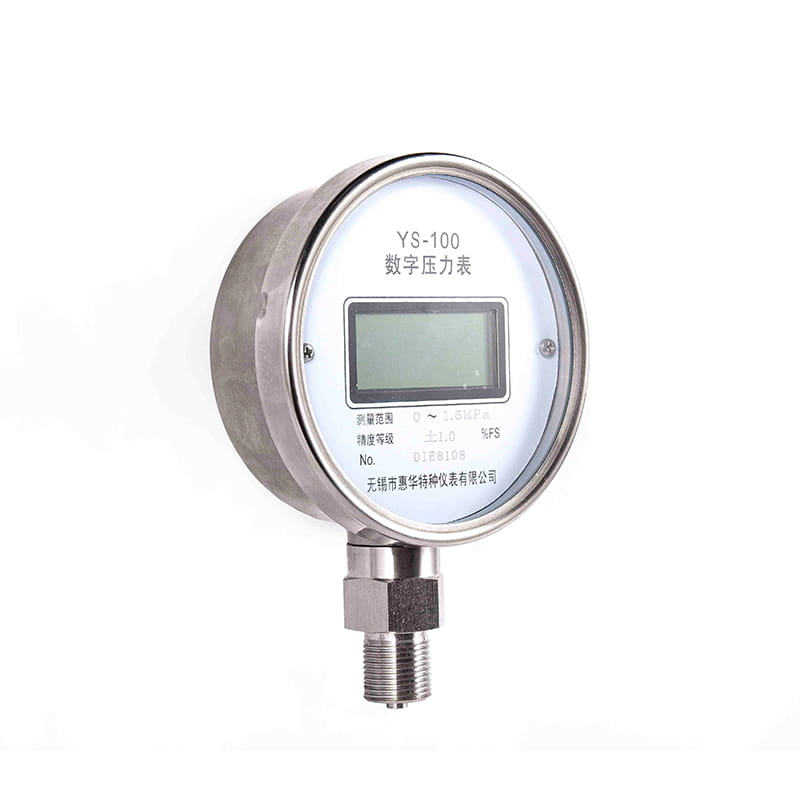

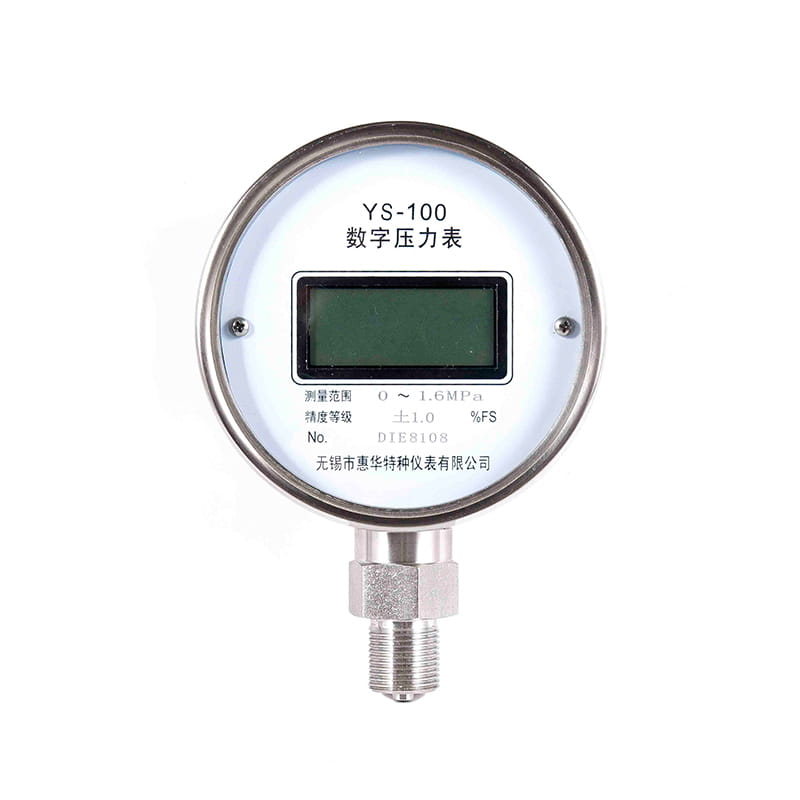

◆ Model: YS100 YS150
◆ Introduction: This digital pressure gauge has beautiful shape, stable performance and accurate measurement; it combines the world's leading microprocessor technology and advanced analogue-to-digital conversion algorithm to achieve high precision and low power consumption.
Adopting imported chip, it can memorise and keep the highest pressure peak value and the lowest pressure valley value in the process of instrument data acquisition and measurement. Adopting large-screen liquid crystal display technology to make the data clear and easy to read. Unique backlight technology can be used normally at night.

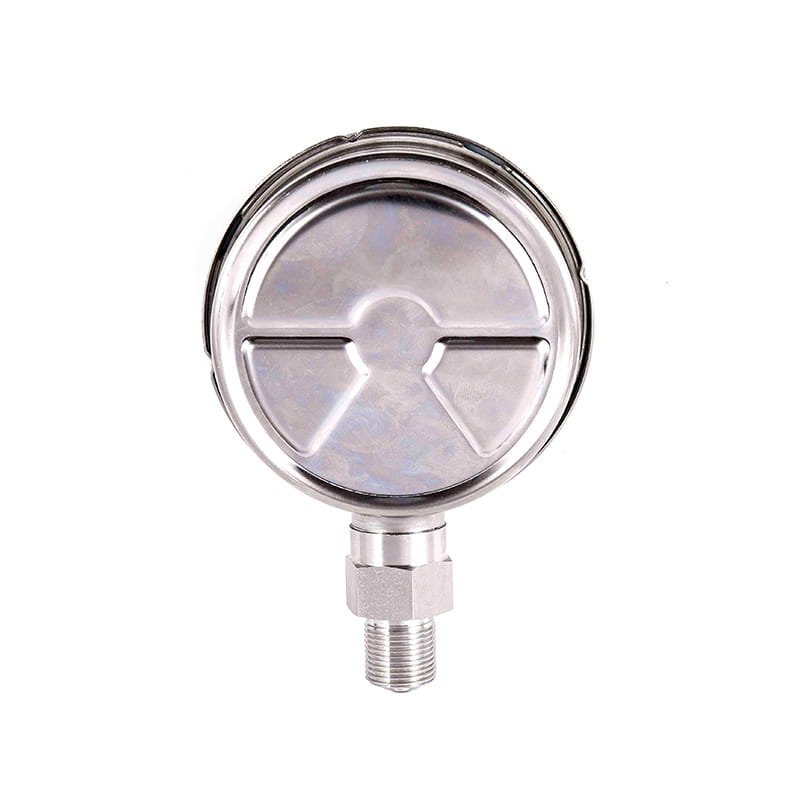

Shell made of stainless steel, corrosion resistance, resistance to mechanical vibration, the body as a whole using sealing technology, can be applied in a variety of complex environments.
This product has the same performance as foreign digital pressure gauges, which is an ideal choice to replace imported instruments and traditional mechanical gauges.
◆ Main use:
1. It can be used to calibrate general pressure gauges, precision pressure gauges, blood pressure monitors or other pressure instruments. It can also be It can also be widely used for precise measurement of pressure; 2.
2. Oilfield water injection, wellhead vessel equipment pressure measurement, power equipment pipeline pump inlet and outlet pressure measurement; 3.
3. Petrochemical industry: vacuum, micro pressure and corrosive gas and liquid pressure in the production process
Petrochemical industry: vacuum, micro pressure and corrosive gas and liquid pressure in the production process Measurement; 4.
4. OEM application of hydraulic system, refrigeration and process monitoring.
5. High temperature medium, viscous medium and liquid height measurement; 6.
6. Air conditioners, gas processing equipment, ventilators, medical equipment, labouratories, compressors and isobaric pressure measurement of force.
Measurement of force.
◆ Technical Parameters:
|
Model |
YS-100 |
YS-150 |
||||
|
Nominal diameter |
Φ100 |
Φ150 |
||||
|
Mounting type |
Ⅰ |
* |
* |
|||
|
Ⅱ |
* |
* |
||||
|
Ⅳ |
* |
* |
||||
|
Ⅵ |
* |
* |
||||
|
Fitting threads |
M20×1.5 |
|||||
|
Measuring range |
Measurement method |
Accuracy class (%FS) |
Guaranteed accuracy temperature range |
|||
|
(0~60)Pa |
Differential pressure |
1.6 |
20℃±5℃ |
|||
|
(0~250)Pa |
Differential pressure |
0.5； 1.0 |
||||
|
(0~1)kPa |
Differential pressure |
0.1； 0.2 |
||||
|
(0~2)kPa |
Differential pressure |
0.05 |
0℃~50℃ |
|||
|
(0~5、10、16、25)kPa |
Gauge pressure, differential pressure |
|||||
|
(0~40、60、100、160、250)kPa |
Gauge pressure, absolute pressure |
0.02 |
20℃±5℃ |
|||
|
(0~0.4、0.6、1、1.6、2.5、4、6)MPa |
||||||
|
0.05 |
0℃~50℃ |
|||||
|
(0~10、16、25、40、60)MPa |
||||||
|
(0~100)MPa |
Gauge pressure |
0.05 |
0℃~50℃ |
|||
|
(0~160)MPa |
Gauge pressure |
0.1 0.2 |
0℃~50℃ |
|||
|
(0~250)MPa |
Gauge pressure |
0℃~50℃ |
||||
|
The pressure unit introduced above uses Pa, and other pressure units can also be used in practical application, such as: Kgf/cm2、bar、mbar、psi、mmH2o、mmHg、atm |
||||||
|
Environmental conditions of use |
Temperature: -10°C~50°C; Relative humidity: <<b12>95%; Atmospheric pressure: 86~106kPa |
|||||
|
Communication interface |
★ Communication serial port: RS232 ★ Baud rate: 2400, 4800, 9600 optional (factory default 9600) ★ Data length: 8 bits; Stop bits: 2 bits ★ Meter address: 1~112 |
|||||
|
Additional features |
★ Temperature measurement: -30°C~90°C; Resolution: ±0.1°C ★ Peak Recording: Records the maximum and minimum pressure values that occur during the measurement ★ Overvoltage alarm: The alarm threshold can be set arbitrarily within the measurement range ★ Timer shutdown: You can set a timer to shut down |
|||||
|
Analog dial |
★ Pressure Percentage Indication: The pointer displays the percentage of the range of the pressure measurement in the form of a fan ★ Pressure fluctuation indication: The swing of a pointer indicates how much the adjacent secondary pressure measurement fluctuates ★ Pressure Alarm Pressure Threshold Indication: The arrangement of three pointers is used to show whether the current pressure value exceeds the alarm threshold |
|||||
|
On-screen display |
FSTN LCD screen; 5-digit display; Blue backlight |
|||||
|
Power supply mode |
Built-in battery (please refer to the instruction manual for battery model) |
|||||
|
Seismic rating |
V· H· 3 |
|||||
|
Ingress protection |
IP63 |
|||||
|
Enforce the standard |
JB/T 7392 |
|||||
|
Note: It can also be made into pipe threads or tapered pipe threads according to user requirements (see selection guide). |
||||||
◆ Dimensions:
|
Radial Direct (I.) |
Axial Eccentric Direct (II.) |
|
Axial eccentric flush mount (IV.) |
Radial convex mount (VI.) |
|
Model |
Dimensions(mm) |
|||||||
|
A |
B |
C |
D |
d0 |
d1 |
d2 |
M |
|
|
YS100-Ⅰ |
100 |
48 |
16 |
Φ100 |
/ |
/ |
Φ6 |
M20×1.5 |
|
YS100-Ⅱ |
152 |
48 |
19 |
Φ100 |
/ |
/ |
Φ6 |
M20×1.5 |
|
YS100-Ⅳ |
90 |
48 |
19 |
Φ100 |
Φ6 |
Φ118 |
Φ6 |
M20×1.5 |
|
YS100-Ⅵ |
100 |
48 |
16 |
Φ100 |
Φ6 |
Φ118 |
Φ6 |
M20×1.5 |
|
YS150-Ⅰ |
113 |
53 |
22 |
Φ150 |
/ |
/ |
Φ6 |
M20×1.5 |
|
YS150-Ⅱ |
90 |
53 |
55 |
Φ150 |
/ |
/ |
Φ6 |
M20×1.5 |
|
YS150-Ⅳ |
69 |
53 |
55 |
Φ150 |
Φ6 |
Φ165 |
Φ6 |
M20×1.5 |
|
YS150-Ⅵ |
113 |
53 |
22 |
Φ150 |
Φ6 |
Φ165 |
Φ6 |
M20×1.5 |
