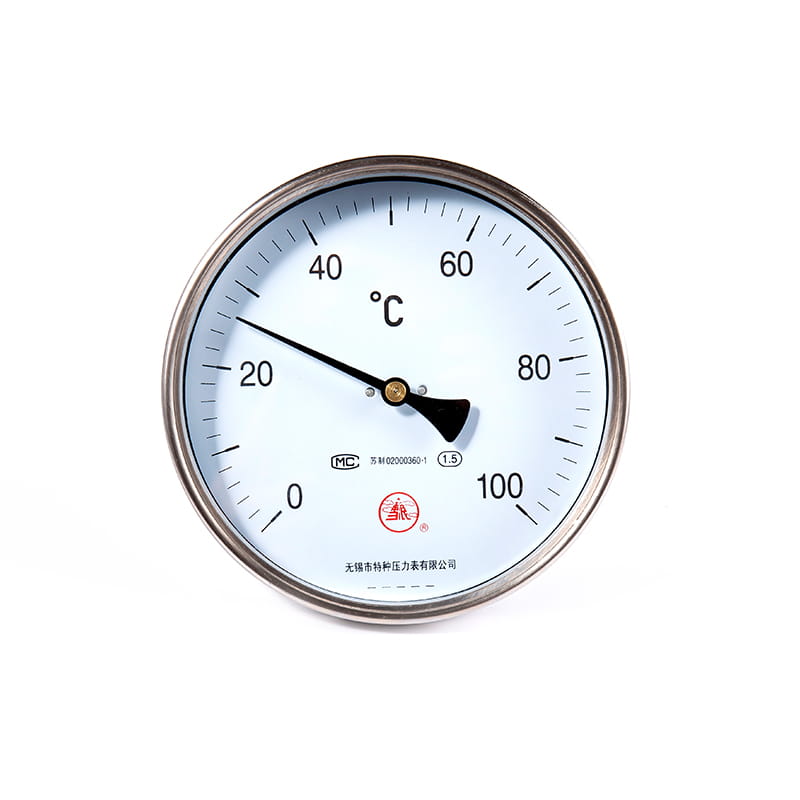

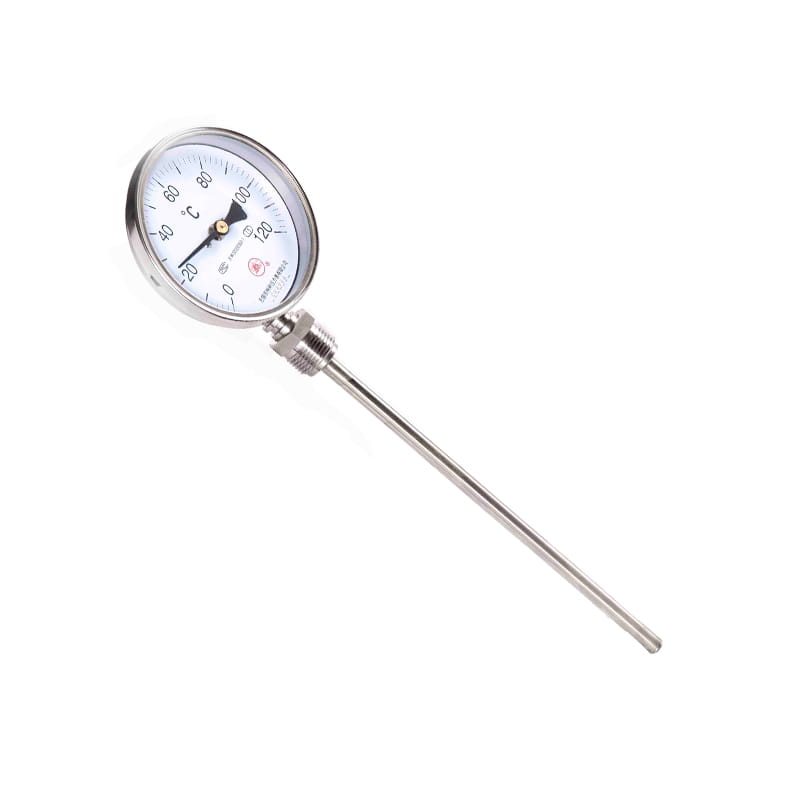

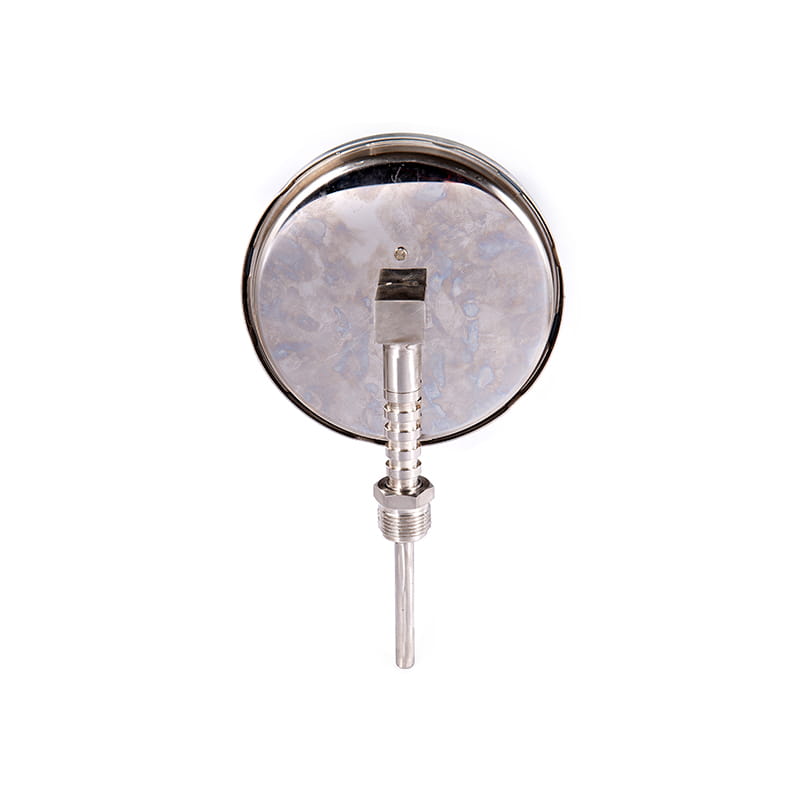

WSS series bimetallic thermometer

◆ Model: WSS-3 WSS-4 WSS-5

◆ Application: Bimetal thermometer has the characteristics of no mercury damage, clear indication, sturdiness and shock resistance. Suitable for on-site inspection of liquids, gases and vapors at low to medium temperatures. The instrument is made of stainless steel, which has good waterproof and corrosion resistance. It is widely used in petroleum, chemical, metallurgy, textile, food and other industries.

Get A Quote

PREV：WSSX series electric contact bimetallic thermometer NEXT：No next article

Parameter
Contact Us

◆ Technical Parameters:

Model	WSS-3		WSS-4			WSS-5
Nominal Diameter(mm)	60		100			150
Fitting threads	M16×1.5			M27×2
Diameter of protection tube (mm)	6			10
Protective Tube Withstand Pressure(MPa)	6.3
Accuracy class	1.5
Measuring range (°C.))	-60～0	0～50			0～100		0～150
Cell value (°C.))	1	1			2		2
Measuring range (°C.))	0～200	0～300			0～400		0～500
Cell value (°C.))	5	5			10		10
Insertion length (mm).	L=75； 100； 150； 200； 250； 300； 400； 500 ┅┅ 2000
Time constant	≤40s
Enforce the standard	JB/T 8803
Note: The joint thread can be made into pipe threads G1/2, G3/4 and so on according to user requirements.

◆ Dimensions:

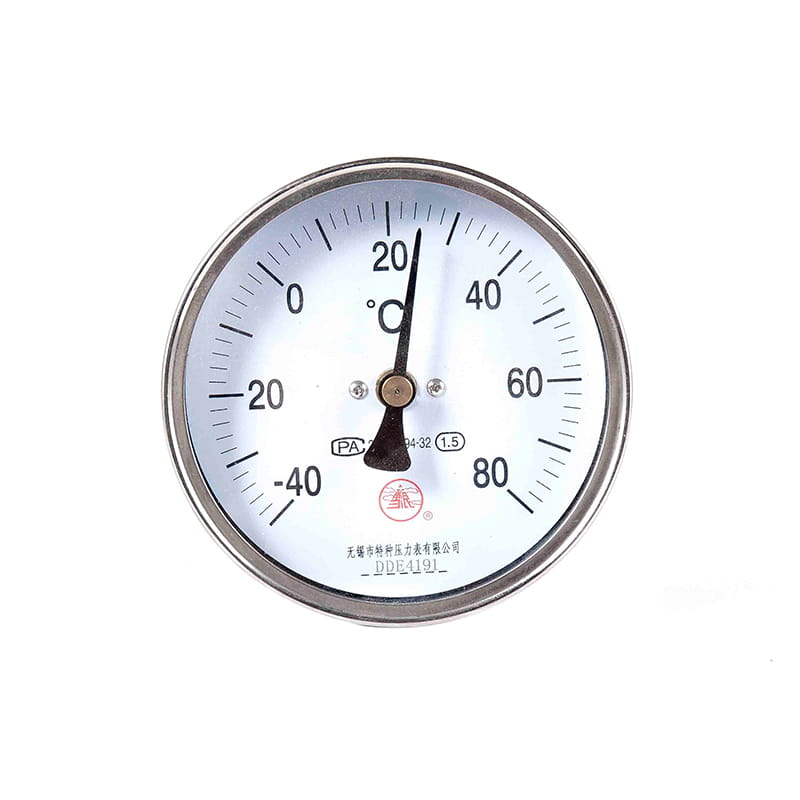

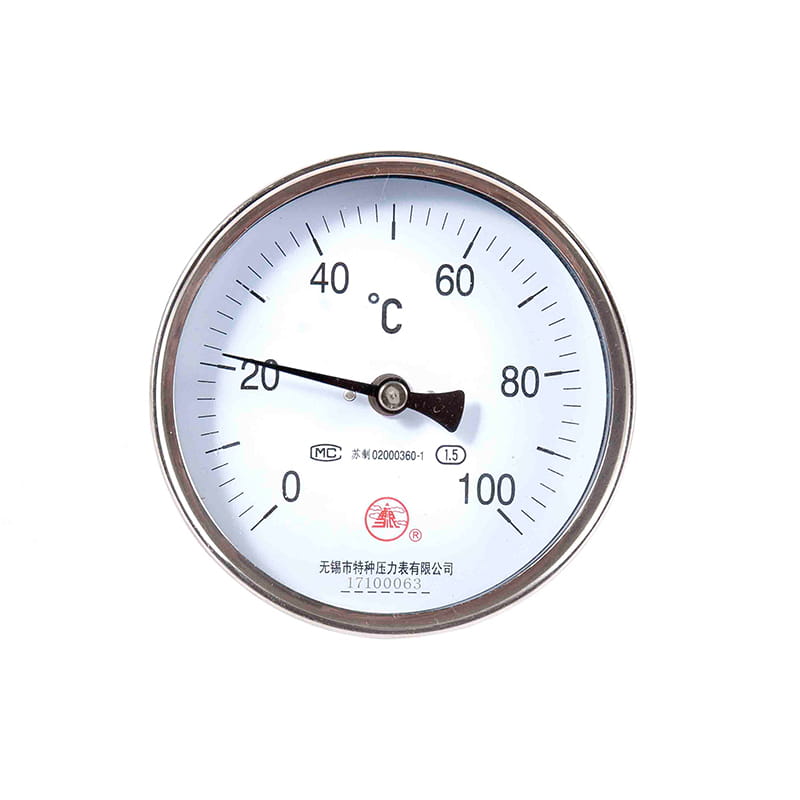

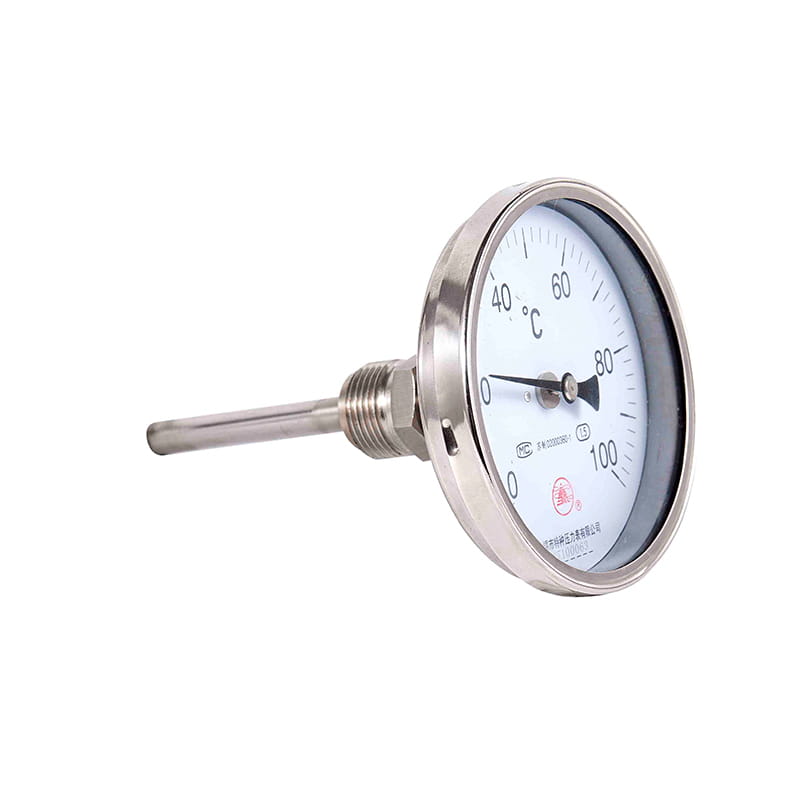

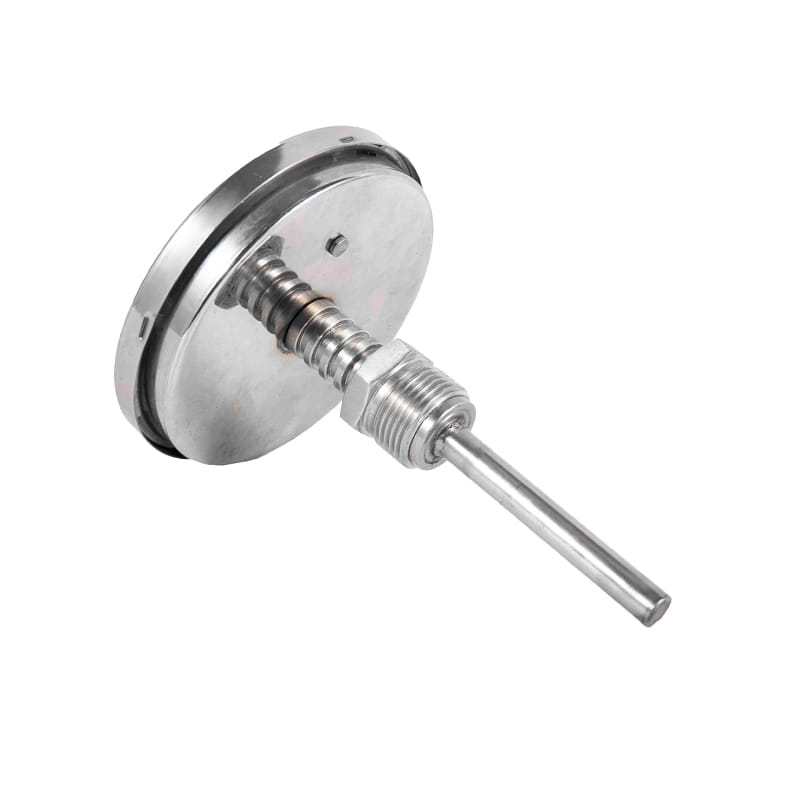

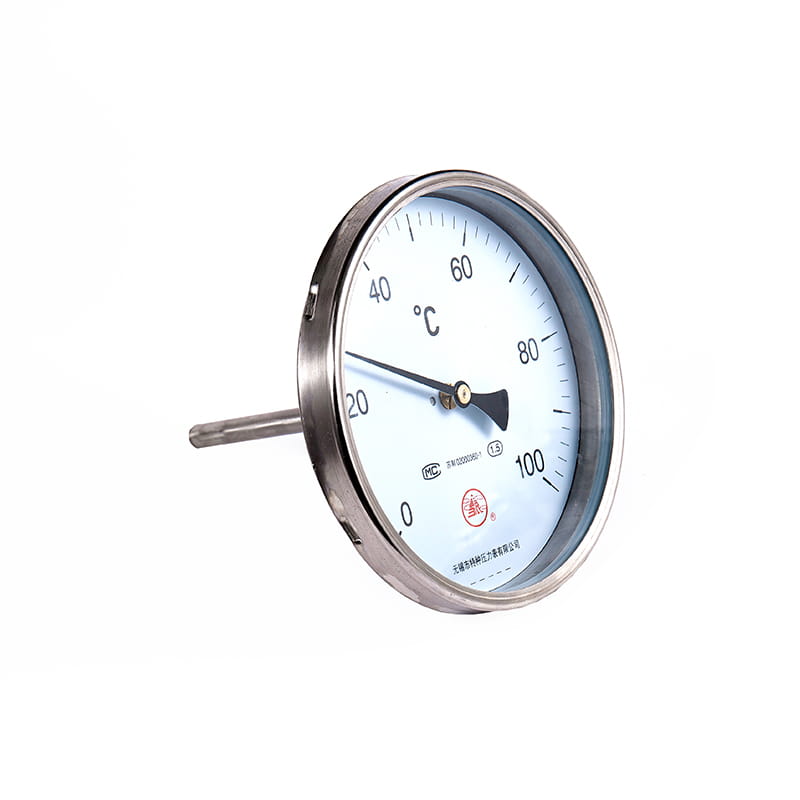

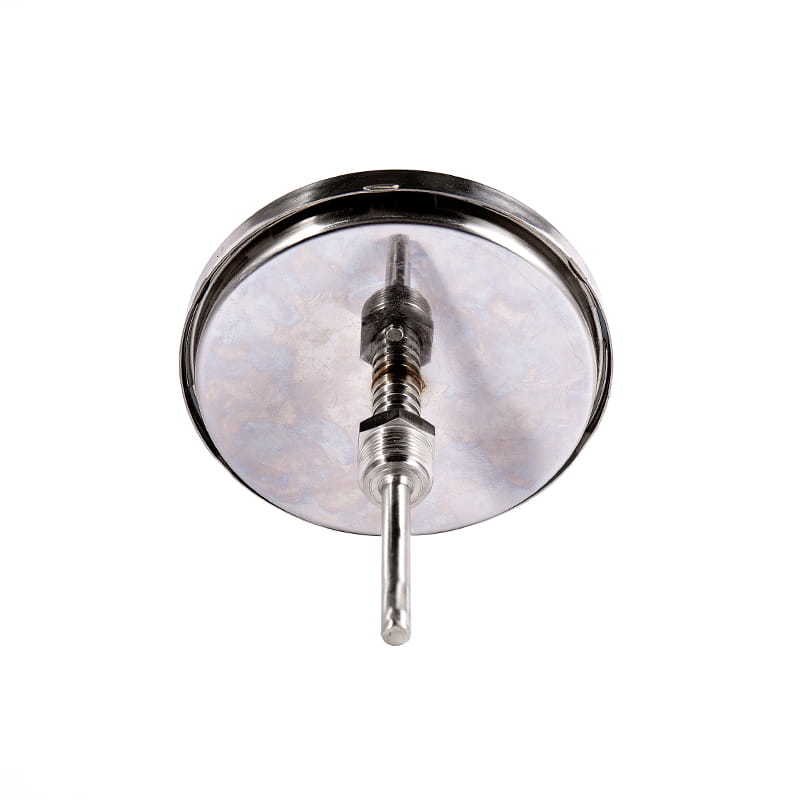

Axial Mounting(01)

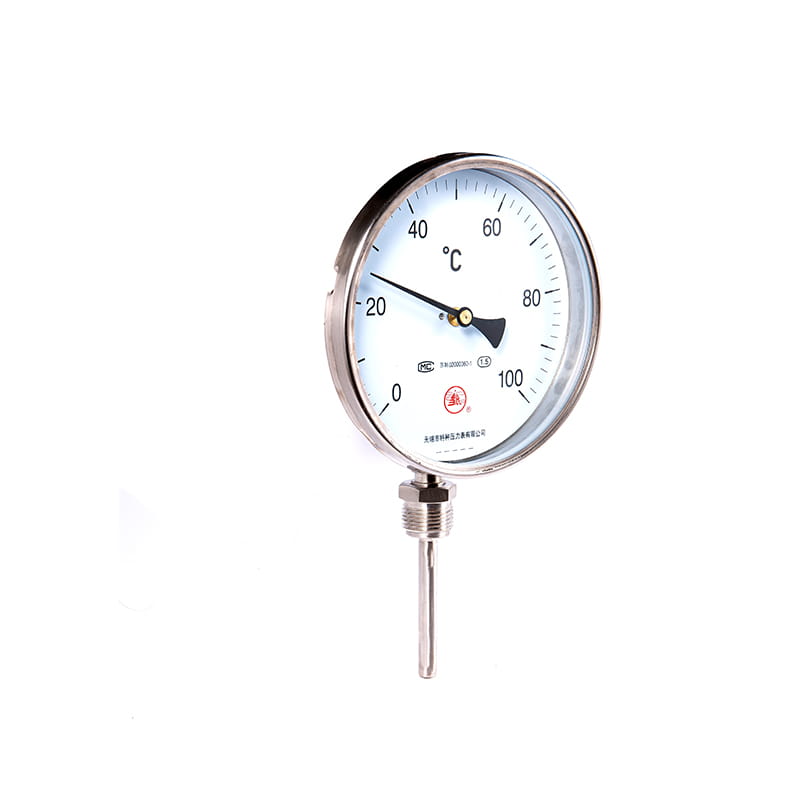

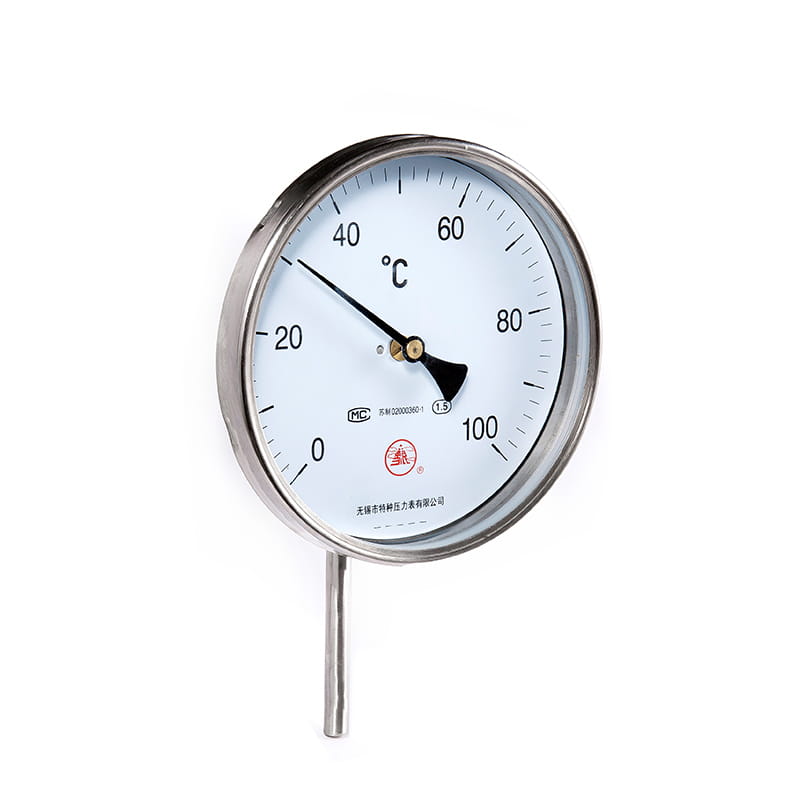

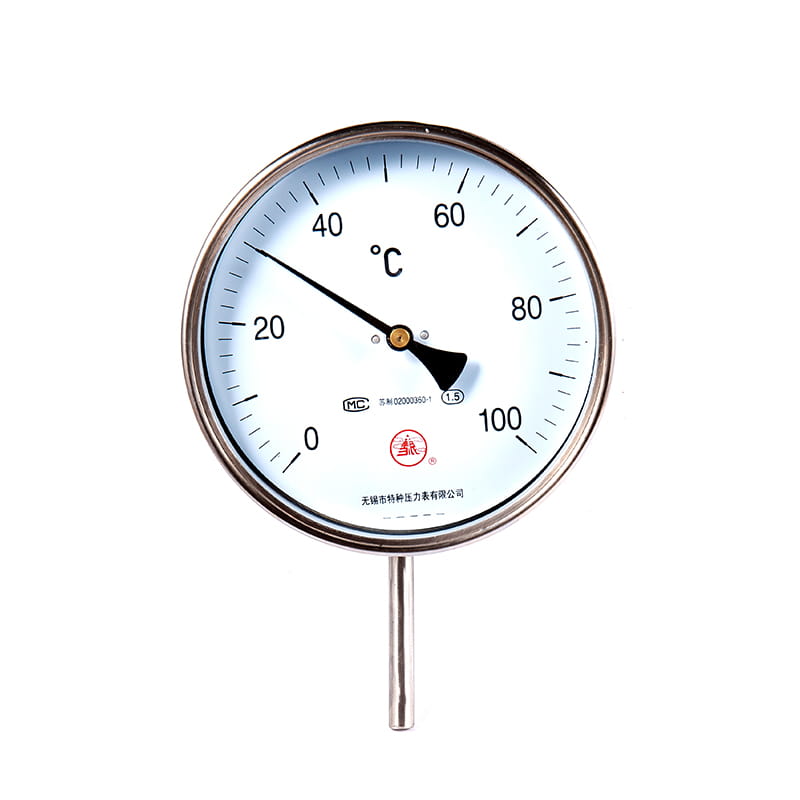

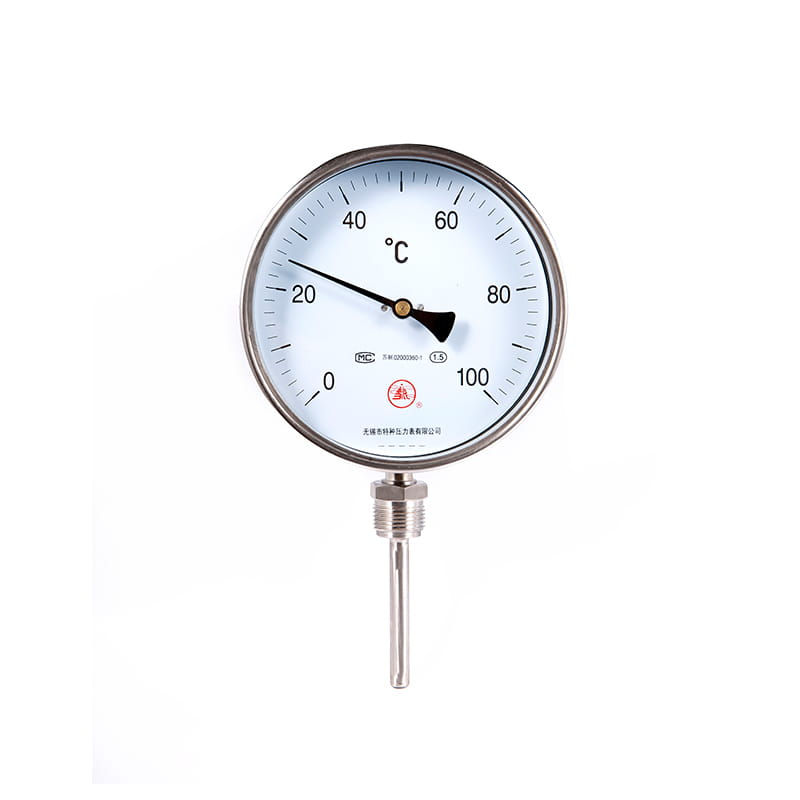

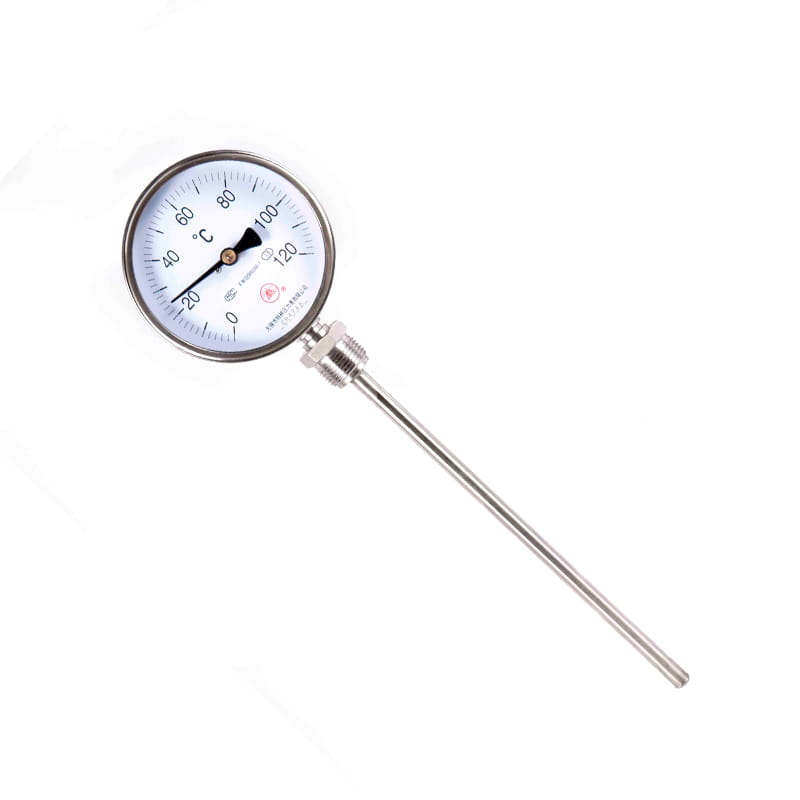

Radial Mounting(11)

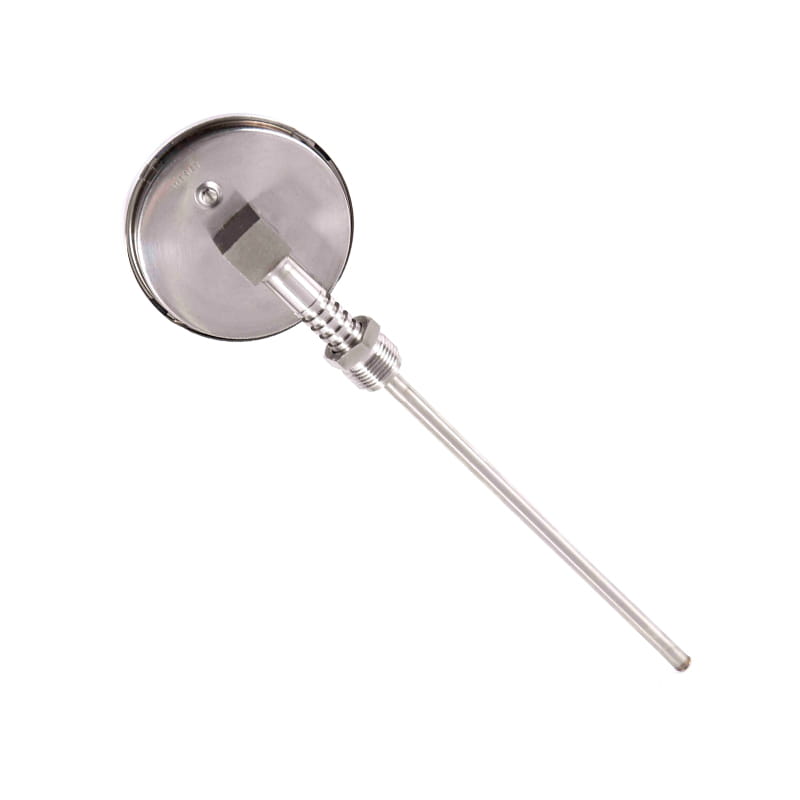

120⁰ Mounting(21)

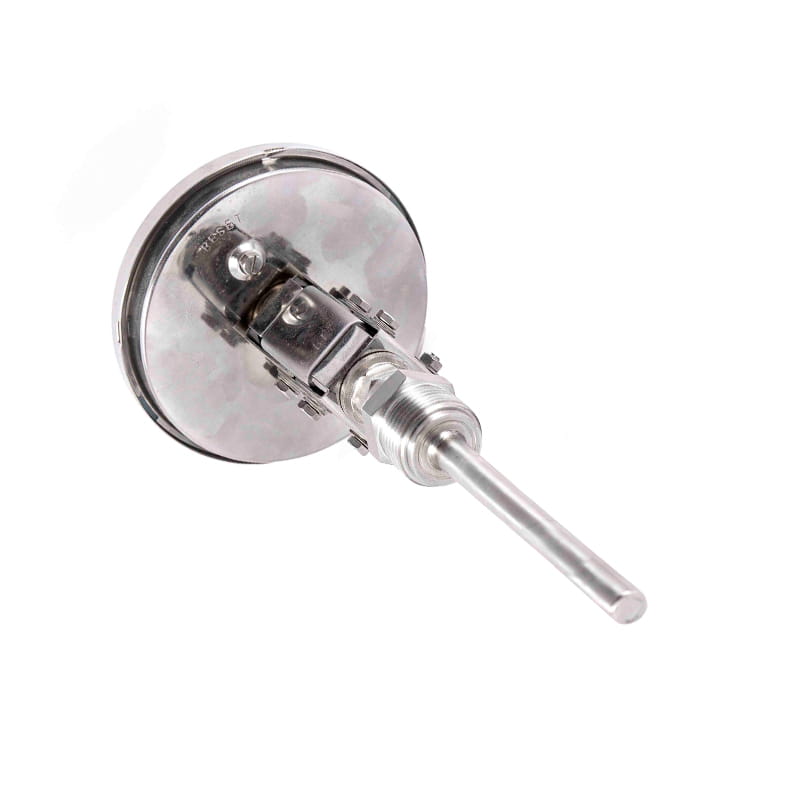

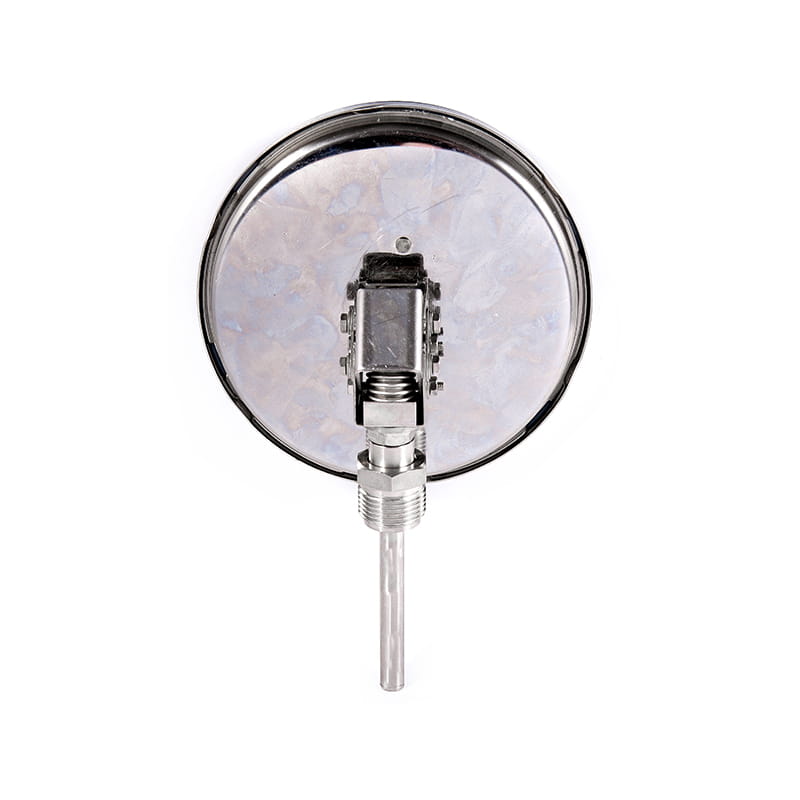

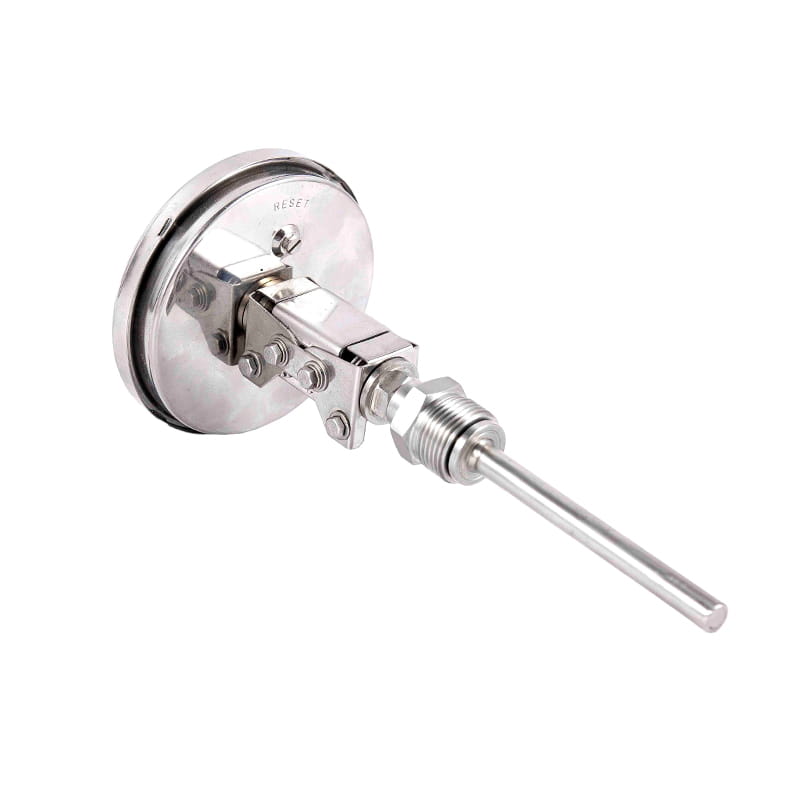

Gimbal Mounting(81)

Model	Dimensions(mm)
Model	D	H	L	L1	L2	L3	M
WSS-30□	Φ60		75； 100； 150； 200； 250； 300； 400； 500； 600； …… 2000	62	12		M16×1.5
WSS-31□		46		60
WSS-32□		44		55
WSS-40□	Φ100			72	16		M27×2
WSS-41□		46		94
WSS-42□		44		82
WSS-48□		58		64
WSS-50□	Φ150			72	16
WSS-51□		46		112
WSS-52□		44		82
WSS-58□		58		64
