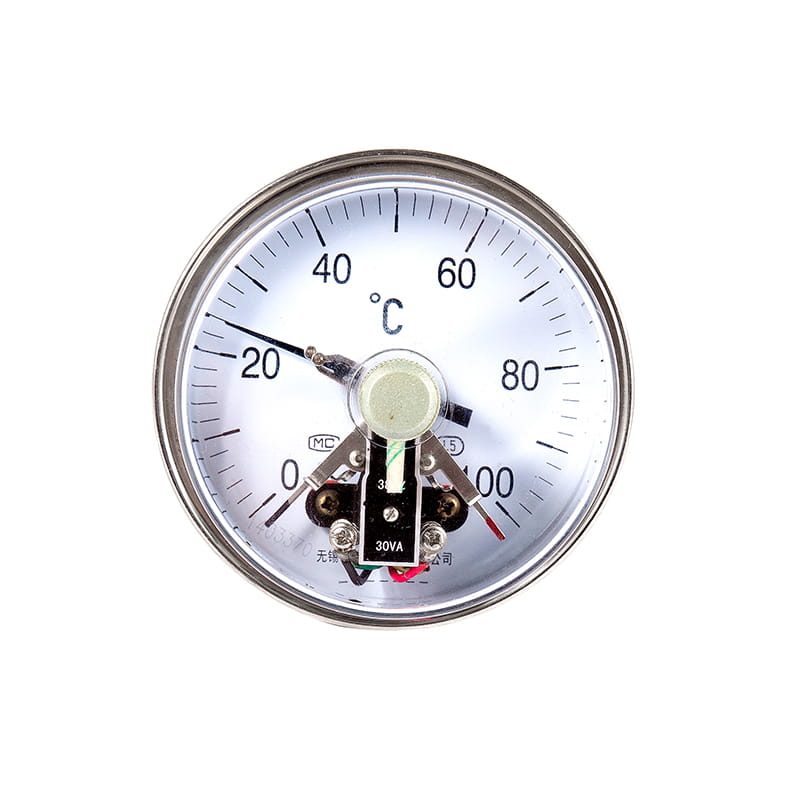

WSSXC series magnetic assisted electric contact bimetallic thermometer

◆ Model: WSSXC-4

◆ Application: This series of thermometers has the characteristics of no mercury damage, clear indication, sturdiness and shock resistance. Suitable for on-site inspection of liquids, gases and vapors at low to medium temperatures. When it is equipped with corresponding electrical components, it can send alarm or automatic control to the temperature system to be measured and controlled. The instrument is made of stainless steel, which has good waterproof and corrosion resistance. It is widely used in petroleum, chemical, metallurgy, textile, food and other industries.

Get A Quote

PREV：WSSXCh Series reed electric contact bimetallic thermometer NEXT：WSSX series electric contact bimetallic thermometer

Parameter
Contact Us

◆ Technical Parameters:

Model	WSSXC-4			WSSXC-5
Nominal diameter (mm).	Φ100			Φ150
Fitting threads	M27×2
Diameter of protection tube (mm)	10
Protective Tube Withstand Pressure(MPa)	6.3
Accuracy class	1.5
Measuring range (°C.))	-60～0	0～50	0～100		0～150
Cell value (°C.))	1	1	2		2
Measuring range (°C.))	0～200	0～300	0～400		0～500
Cell value (°C.))	5	5	10		10
Insertion length (mm).	L=75； 100； 150； 200； 250； 300； 400； 500 ┅┅ 2000
Time constant	≤40s
Electrical parameters	WSSXC-3	Contact capacity: 30VA; Maximum voltage: 220V AC
	WSSXC-4 WSSXC-5	Contact capacity: 30VA; Maximum voltage: 380V AC; 220V DC
Terminal blocks Wiring	1	2	3		4
	Upper limit output	Lower limit output	The output is common		earthing
Ingress protection	IP55
Enforce the standard	JB/T 8803
Note: The joint thread can be made into pipe threads G1/2, G3/4 and so on according to user requirements.

◆ Dimensions:

Axial Mounting(01)

Radial Mounting(11)

120⁰ Mounting(21)

Gimbal Mounting(81)

Model	Dimensions(mm)
Model	D	H	L	L1	L2	L3	M
WSSXC-401	Φ107	/	100； 150； 200； 250； 300； 400； …… 2000	72	16	42	M27×2
WSSXC-411	Φ107	46		94	16	42	M27×2
WSSXC-421	Φ107	44		82	16	42	M27×2
WSSXC-481	Φ107	58		64	16	42	M27×2
WSSXC-501	Φ150	/		72	16	42	M27×2
WSSXC-511	Φ150	36		115	16	42	M27×2
WSSXC-521	Φ150	44		82	16	42	M27×2
WSSXC-581	Φ150	58		64	16	42	M27×2
