WSSX series stainless steel electric contact bimetallic thermometer

◆ Model: WSSX-4

◆ Application: The electric contact bimetal thermometer has the characteristics of no mercury damage, clear indication, sturdiness and shock resistance. Suitable for on-site inspection of liquids, gases and vapors at low to medium temperatures. When it is equipped with corresponding electrical components, it can send alarm or automatic control to the temperature system to be measured and controlled. The instrument is made of stainless steel, which has good waterproof and corrosion resistance. It is widely used in petroleum, chemical, metallurgy, textile, food and other industries.

Get A Quote

PREV：WSSXC series magnetic assisted electric contact bimetallic thermometer NEXT：WSS series waterproof bimetallic thermometer

Parameter
Contact Us

◆ Technical Parameters:

Model	WSSX-4
Nominal Diameter(mm)	Φ100
Fitting threads	M27×2
Diameter of protection tube (mm)	10
Protective Tube Withstand Pressure(MPa)	6.3
Accuracy class	1.5
Measuring range (°C.))	-60～0	0～50	0～100		0～150
Cell value (°C.))	1	1	2		2
Measuring range (°C.))	0～200	0～300	0～400		0～500
Cell value (°C.)	5	5	10		10
Insertion length (mm).	L=75； 100； 150； 200； 250； 300； 400； 500 ┅┅ 2000
Time constant	≤40s
Electrical parameters	WSSX-3	Contact capacity: 10VA; Maximum voltage: 220V AC
	WSSX-4 WSSX-5	Contact capacity: 10VA; Maximum voltage: 380V AC; 220V DC
Terminal blocks Wiring	1	2		3		4
	Upper limit output	Lower limit output		The output is common		earthing
Ingress protection	IP55
Enforce the standard	JB/T 8803
Note: The joint thread can be made into pipe threads G1/2, G3/4 and so on according to user requirements.

◆ Dimensions:

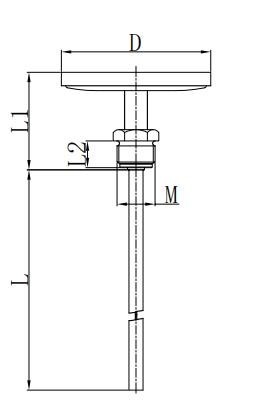

Axial Mounting(01)

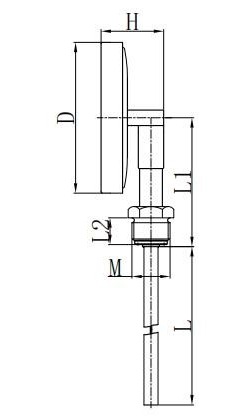

Radial Mounting(11)

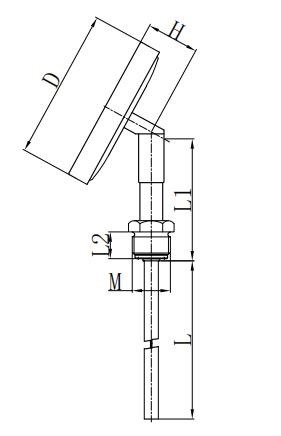

120⁰ Mounting(21)

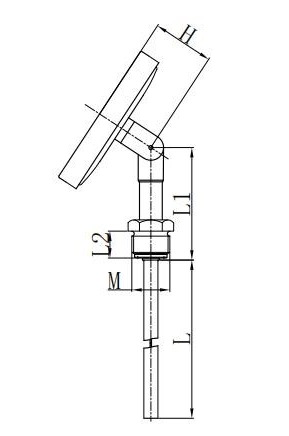

Gimbal Mounting(81)

Model	Dimensions(mm)
Model	D	H	L	L1	L2	L3	M
WSSX-401	Φ100	/	75； 100； …… 2000	72	16	42	M27×2
WSSX-411	Φ100	35		94	16	42	M27×2
WSSX-421	Φ100	44		82	16	42	M27×2
WSSX-481	Φ100	58		64	16	42	M27×2
