YSX series intelligent digital (electric contact) pressure gauge

◆ Model: YSX100

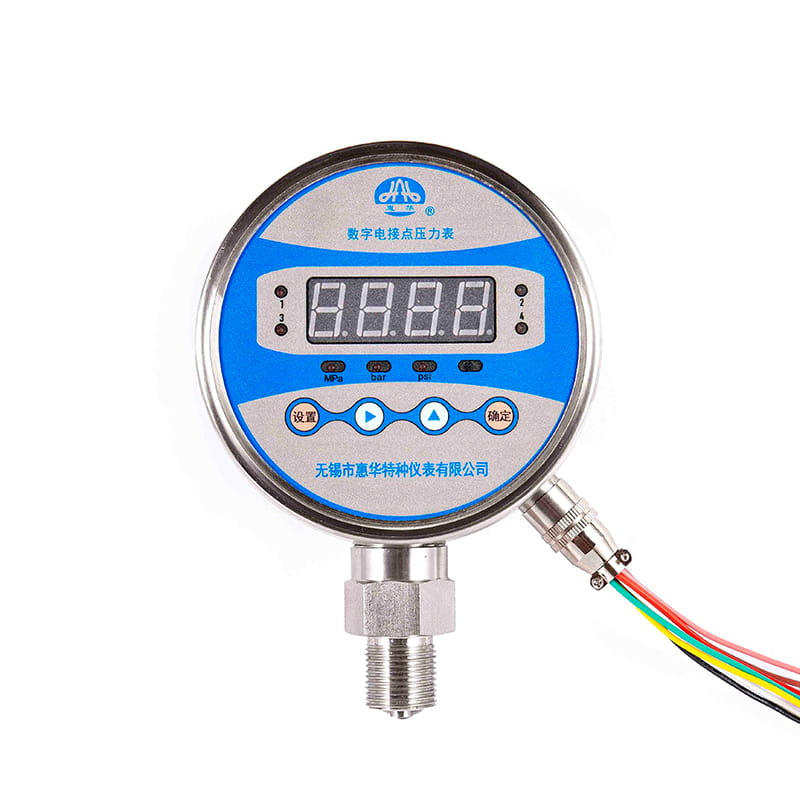

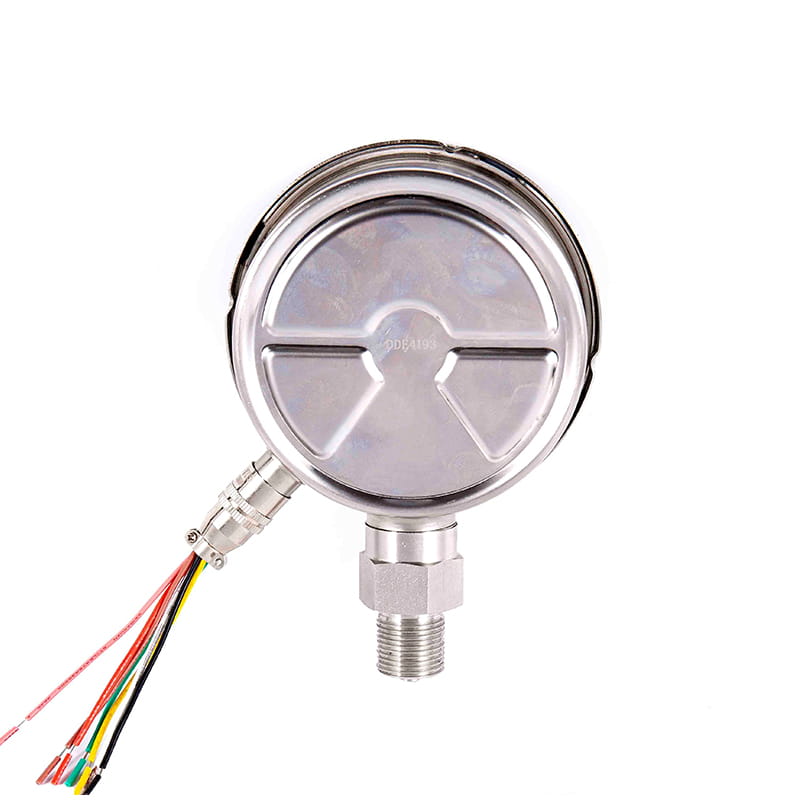

◆ Introduction: Intelligent digital electric word contact pressure gauge is a set of pressure display, signal control, pressure transmission in one of the intelligent products carefully developed by our company, using high-precision diffusion silicon pressure sensor, high-speed analog-to-digital conversion chip, combined with a variety of pressure control, analog signal practical module software program, with high cost performance, stable and reliable work, long service life and other advantages.

Four-digit LED digital display for clear reading in the dark. MPa, kg/cm2, Psi, bar and other pressure units can be switched arbitrarily.

A variety of module preset functions, multi-channel intelligent signal output, make the process control concise and practical:

Bit control signal: relay, thyristor, transistor (PNP type or NPN type) optional.

analog transmission signals; 4mA~20mA DC standard current signal, 1V~5V, 1V~10V standard DC voltage signal are optional, and have range migration function.

It has a pressure source overload protection setting to protect the equipment from an unsafe state of over-pressure use. The password lock function of the parameter setting prevents others from illegally changing the set parameters and affecting the normal operation of the device.

Get A Quote

PREV：YSZC-4 series compact pressure transmitter NEXT：YS series digital pressure gauge

Parameter
Contact Us

◆ Technical Parameters:

Model	YXS100
Installation:	Ⅰ、Ⅱ、Ⅳ、Ⅵ
Fitting threads	M20×1.5
Accuracy class	0.5； 1.0； 1.6 (Optional)
Measuring range （KPa）	-40～0 -25～0 -16～0 -10～0 -6～0 -4～0 0～4 0～6 0～10 0～16 0～25 0～40 -2～2 -3～3 -5～5 -8～8 -12～12 -20～20
Measuring range （MPa）	True space: -0.1~0 Pressure vacuum: -0.1~0.06 -0.1~0.15 -0.1~0.3 -0.1~0.5 -0.1~0.9 -0.1~1.5 -0.1~2.4 Pressure: 0~0.1 0~0.16 0~0.25 0~0.4 0～0.6 0～1 0～1.6 0～2.5 0～4 0～6 0～10 0～16 0～25 0～40 0～60 0～100
Environmental conditions of use	Temperature: -10°C~85°C; Relative humidity: 5%~85%
Electrical parameters	★ Power supply (optional): 24V DC; 220V AC ★ power consumption: ≤1.5W ★ Relay Output: Max Load: 3A 220V AC; 3A 30V DC Electrical life: 100,000 times ★ Transistor output: Max Load: 0.5A 24V DC ★ Thyristor output: 5A 220V AC Electrical life: 1000000 times ★ Control channel: independent four-way switch unit can be set arbitrarily within the range ★ Analog Signal Output: Standard current signal: (4~20)mA DC Standard voltage signal: (1~5)V, (1~10)V DC
Ingress protection	IP63
Seismic rating	V· H· 3
Over-range range	10% of the range
Data update rate	3 times/sec
Wiring	Please refer to the instruction manual for details
Enforce the standard	JB/T 7392
Note: It can also be made into pipe threads or tapered pipe threads according to user requirements (see selection guide).

◆ Dimensions:

Radial Direct (I.)

Axial Eccentric Direct (II.)

Axial eccentric flush mount (IV.)

Radial convex mount (VI.)

Model	Dimensions(mm)
Model	A	B	C	D	d0	d1	d2	M
YXS100-Ⅰ	100	48	16	Φ100	/	/	Φ6	M20×1.5
YXS100-Ⅱ	152	48	19	Φ100	/	/	Φ6	M20×1.5
YXS100-Ⅳ	90	48	19	Φ100	Φ6	Φ118	Φ6	M20×1.5
YXS100-Ⅵ	100	48	16	Φ100	Φ6	Φ118	Φ6	M20×1.5
