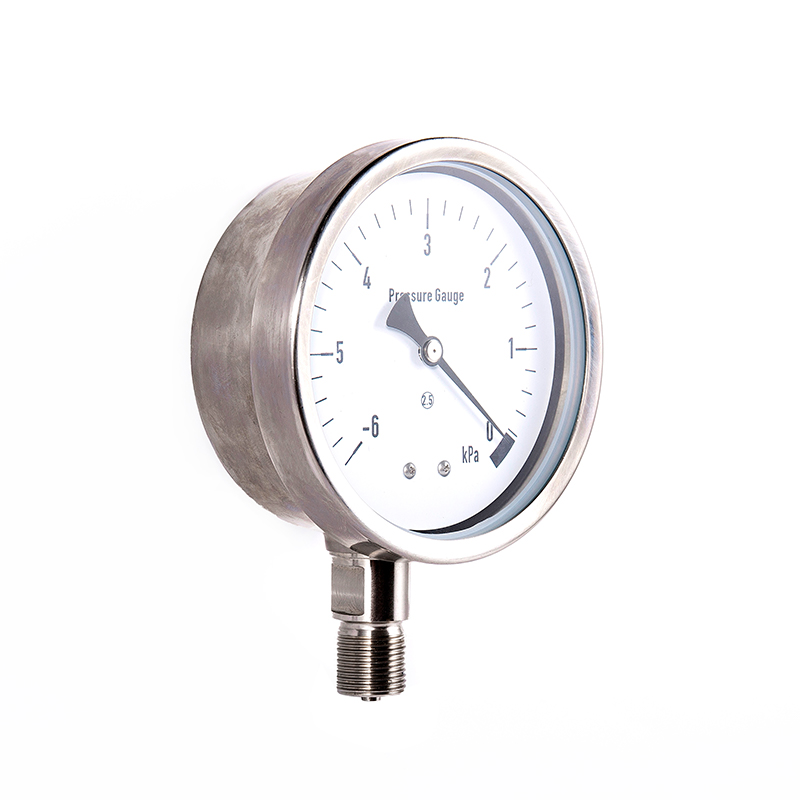

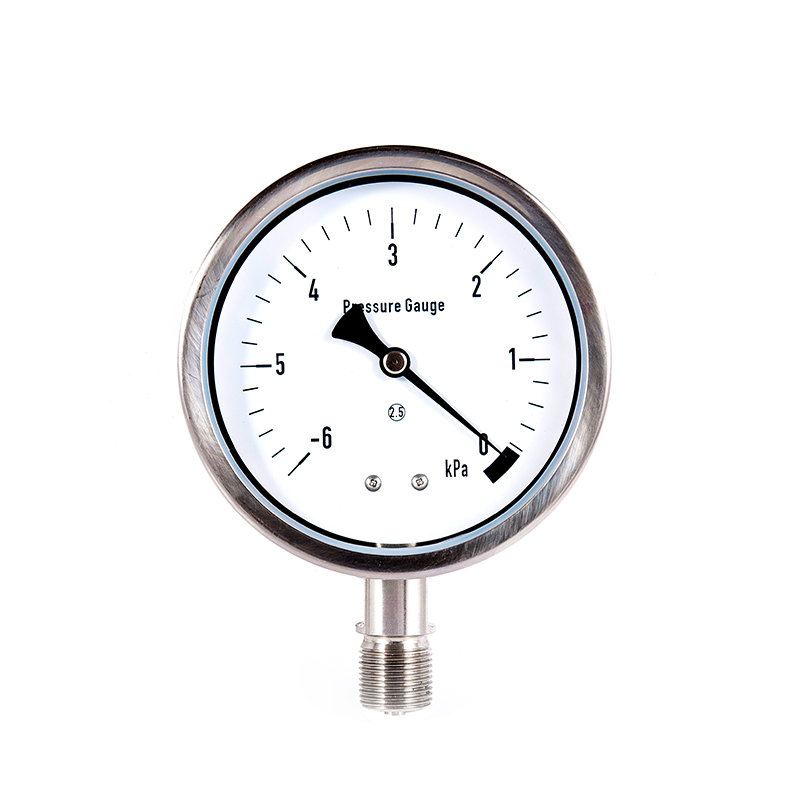

YEB series stainless steel diaphragm pressure gauge

◆ Model：YEB60 YEB100 YEB150
◆ Use: This series of instruments are suitable for measuring the low micro-pressure of gases without explosion danger, non-crystallization, non-condensation, and some corrosive gases. The instrument shell and pressure guide system are made of 1Cr18Ni9, and the membrane box is made of 0Cr17Ni12Mo2, 316, 316L.

Get A Quote

PREV：YG high temperature resistant pressure gauge NEXT：YE series diaphragm pressure gauge

Parameter
Contact Us

◆ Technical Parameters：

Model Number		YEB60	YEB100	YEB150
Nominal Diameter		Φ60	Φ100	Φ150
Mounting Type	Ⅰ	*	*	*
	Ⅱ	/	*	*
	Ⅲ	*	/	/
	Ⅳ	/	*	*
	Ⅴ	*	/	/
Connector Thread		M14×1.5	M20×1.5
Accuracy Class		1.6；2.5
Measurement range （kPa）		-40～0 -25～0 -16～0 -10～0 -6～0 -4～0 0～4 0～6 0～10 0～16 0～25 0～40 -2～2 -3～3 -5～5 -8～8 -12～12 -20～20
Environmental Conditions Of Use		Temp：-25℃～55℃； Relative Humidity：≤80％
Vibration Rating		V·H·2
Membrane Box Material		0Cr17Ni12Mo2、SUS316、SUS316L
Housing, connector material		1Cr18Ni9、SUS304
Protection Class		IP65
Implementation Standards		JB/T 9274
Note: 1. Joint threads can be customized according to user requirements.

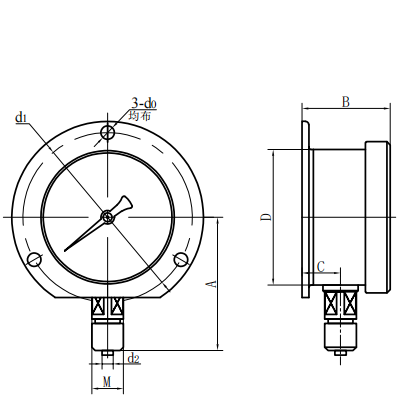

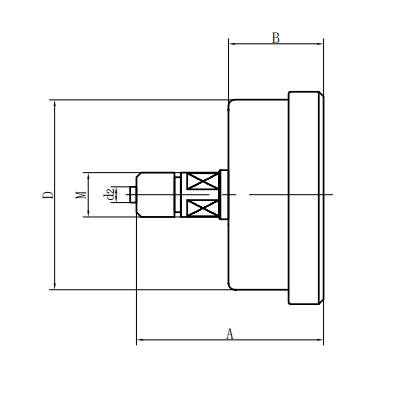

◆ External Dimensions:

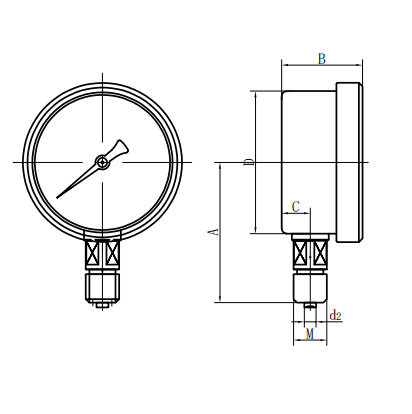

Radial direct type (Ⅰ)

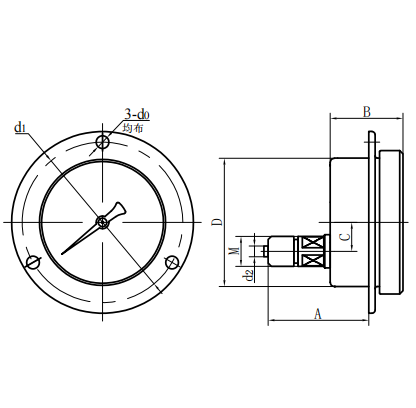

Axial eccentric direct type (Ⅱ)

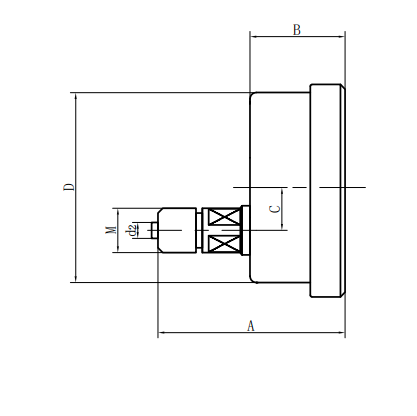

Axial concentric direct type (III)

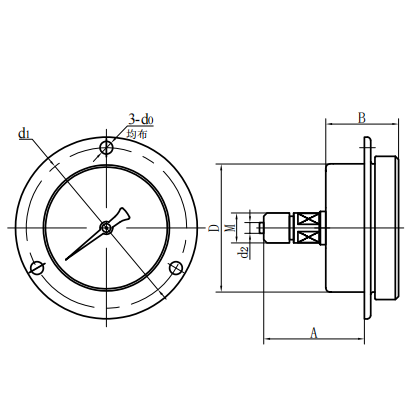

Axial eccentric insert type (IV)

Axial concentric insertion type (V)

Radial convex type (VI)

Model Number	Overall Dimensions（mm）
Model Number	A	B	C	D	E	d2	M
YEB60－Ⅰ	58	35	11	φ60	5	φ4.5	M10×1
YEB60－Ⅲ	58	35	/	φ60	5	φ4.5	M10×1

YEB100－Ⅰ	93	50	16.5	Φ100	16.5	φ6	M20×1.5
YEB100－Ⅲ	85	50	/	Φ100	16.5	φ6	M20×1.5

YEB150－Ⅰ	118	53	18.5	φ150	19	φ6	M20×1.5
YEB150－Ⅲ	96	53	/	φ150	19	φ6	M20×1.5
