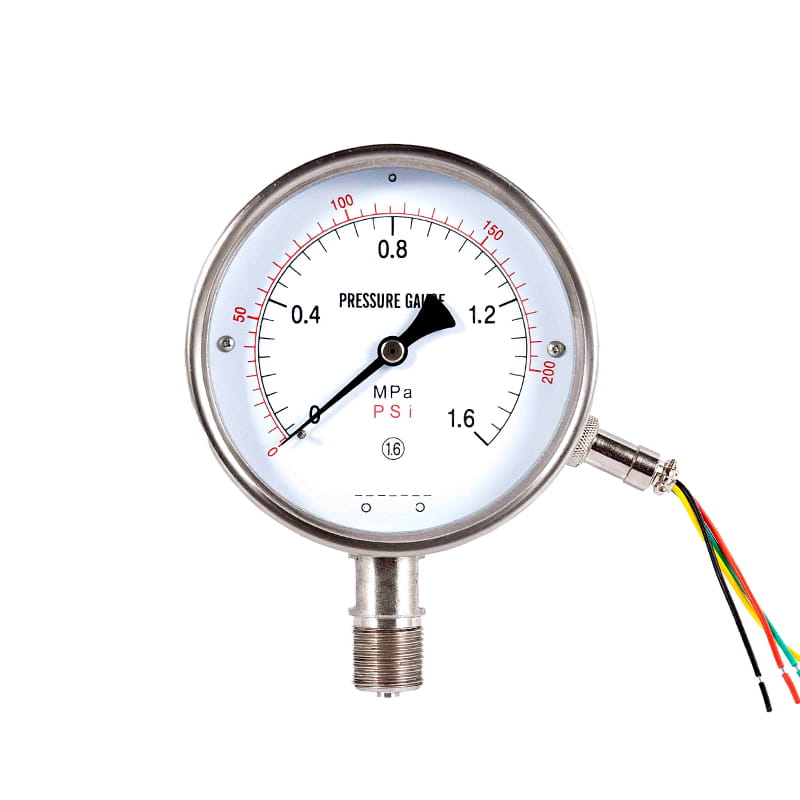

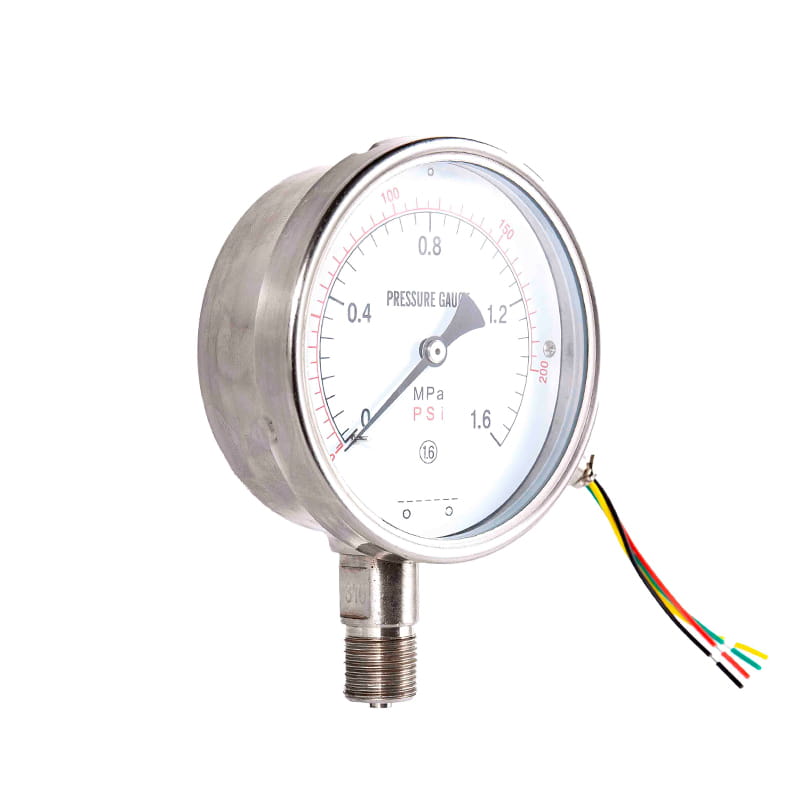

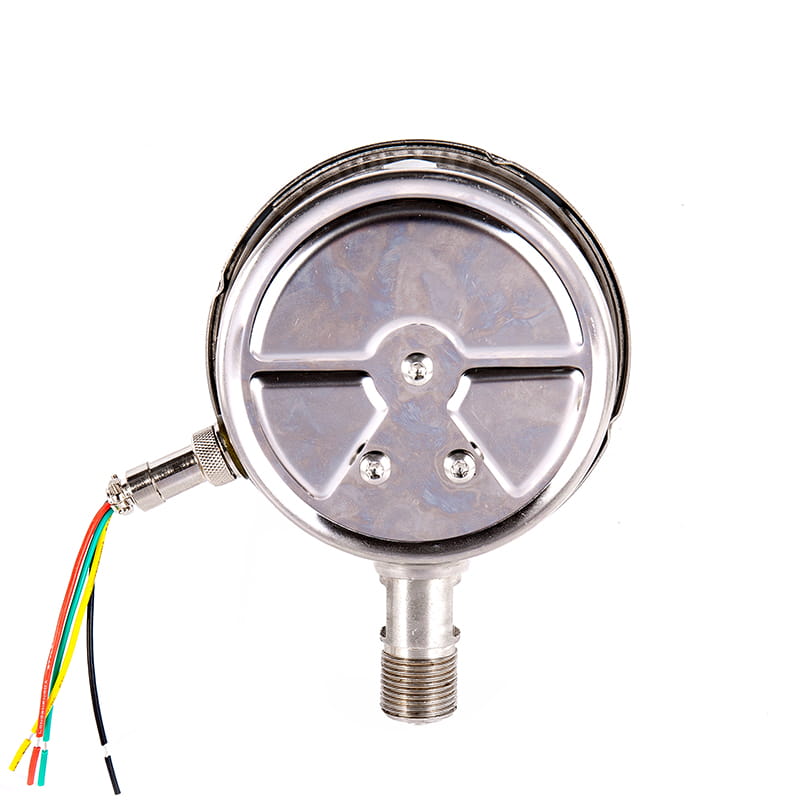

YTZ series resistor remote pressure gauges

◆ Model: YTZ100, YTZ-150

◆ Application: This type of instrument is suitable for measuring the pressure of liquids, gases or vapors without explosion hazard, no crystallization, no solidification, and no corrosive effect on copper and copper alloys.

Made of stainless steel, it can be used to measure the pressure of liquids, gases or vapors that are weakly corrosive, but not explosive, crystallized or solidify.

It can not only indicate the pressure value on the spot, but also transmit the measured pressure value to the secondary instrument at the remote measurement point in the form of electric value through the synchronous potentiometer set inside the instrument, so as to realize centralized detection and remote control.
◆ If it is necessary to make a shockproof type pressure gauge, it can be filled with glycerin or silicone oil.

Get A Quote

◆ Technical Parameters:

Model		YTZ100		YTZ150
Nominal diameter		F100		F150
quiet feign type style	Ⅰ	*		*
	Ⅱ	*		*
	Ⅳ	*		*
	Ⅵ	*		*
Fitting threads		M20×1.5
Accuracy class		1.6
Measuring range （MPa）		True space: -0.1~0 Pressure vacuum: -0.1~0.06 -0.1~0.15 -0.1~0.3 -0.1～0.5 -0.1～0.9 -0.1～1.5 -0.1～2.4 Pressure: 0~0.1 0~0.16 0~0.25 0~0.4 0~0.6 0～1 0～1.6 0～2.5 0～4 0～6 0～10 0～16 0～25 0～40 0～60 0～100 0～160 0～250
Environmental conditions of use		Temperature: -25°C~55°C; Relative humidity: 5%~85%
Electrical parameters		★ Operating voltage: between terminals ① and ② ≤6V DC ★ Starting resistance value: 3～20Ω ★ Fullness resistance value: 310～370Ω or 340～400Ω (Measurement of the starting resistance value and the full resistance value is 1 and 2 terminals)
Wiring		1	2		3
		Resistance Start	Resistance ends		Brush ends
Vibration resistance rating		V· H· 3
Ingress protection		IP54
Enforce the standard		JB/T 10203
Note: The joint thread can be made into pipe thread or tapered pipe thread according to user requirements (see selection guide).

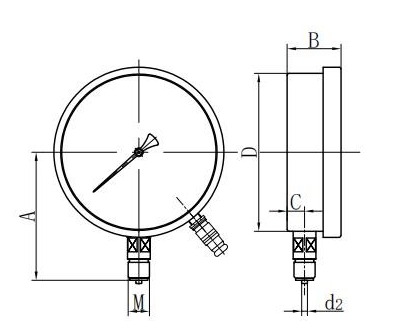

Radial Direct (I.)

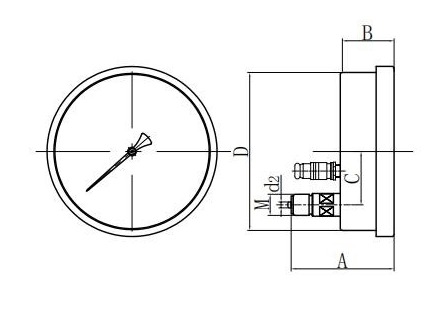

Axial Eccentric Direct (II.)

Axial eccentric flush mount (IV.)

Radial convex mount (VI.)

Model	Dimensions(mm)
Model	A	B	C	T	d0	d1	D2	M
YTZ100－Ⅰ	88	43	16	F98	/	/	F6	M20×1.5
YTZ100－Ⅱ	83	44	30	F100	/	/	F6	M20×1.5
YTZ100－Ⅳ	68	44	30	F100	F6	F118	F6	M20×1.5
YTZ100－Ⅵ	89	44	17	F100	F6	F118	F6	M20×1.5
YTZ150－Ⅰ	112	47	17	F150	/	/	F6	M20×1.5
YTZ150－Ⅱ	88	49	30	F150	/	/	F6	M20×1.5
YTZ150－Ⅳ	85	49	30	F150	F6	F165	F6	M20×1.5
YTZ150－Ⅵ	115	49	18	F150	F6	F165	F6	M20×1.5
