The gas monitoring alarm system is designed for optimal safety and usability. It features a user-friendly interface with both audible and visual alerts, ensuring immediate awareness of potential gas leaks. The high-resolution 128 x 64 dot matrix LCD screen displays critical information clearly. Weighing approximately 1.5 kg, the device is made from durable aluminum die-cast material, providing explosion-proof and anti-corrosion properties. Its compact dimensions (200 × 160 × 80 mm) allow for easy installation in various settings. This system is essential for industrial facilities, laboratories, and residential buildings, promoting safety and compliance with regulations by continuously monitoring gas levels.
Product technical parameters and functional characteristics
1.Power supply: DC24V
2.Output: Standard 4~20mA signal output /485 communication output
3.Range: 0~100%LEL (combustible gas); 0~1000PPM (toxic gas); 0~30%VOL (Oxygen)
4.With independent sound and light alarm active output interface
5.128*64 high count array LCD screen, unique large character design, clear numbers
6.Two alarm values are designed to facilitate the separate control of early warning and alarm
7.Infrared remote control function, convenient remote operation
8.The display value and 4~20mA can be calibrated on site, which is convenient to adjust and improve the accuracy of the instrument
9.Dimensions: 200×160×80mm (L×W×H)
10.Shell material: die-cast aluminum, explosion-proof and anti-corrosion
11.Weight: ≈ 1.5Kg (net weight of instrument)
12.Explosion-proof mark: Ex d IIC T6 Gb
Shape structure and terminal

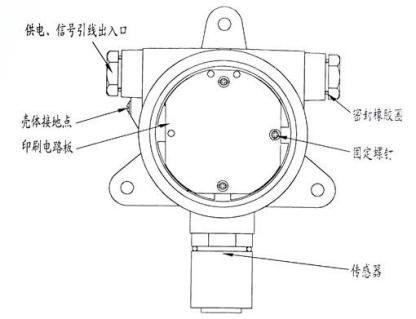

The outline structure diagram is shown in Figure 3:

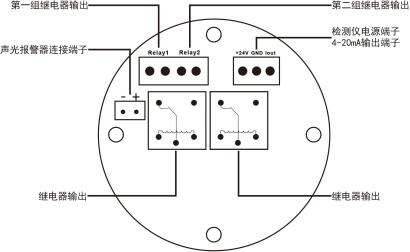

Figure 4 shows the description of the gas detection transmitter baseplate terminal block:
