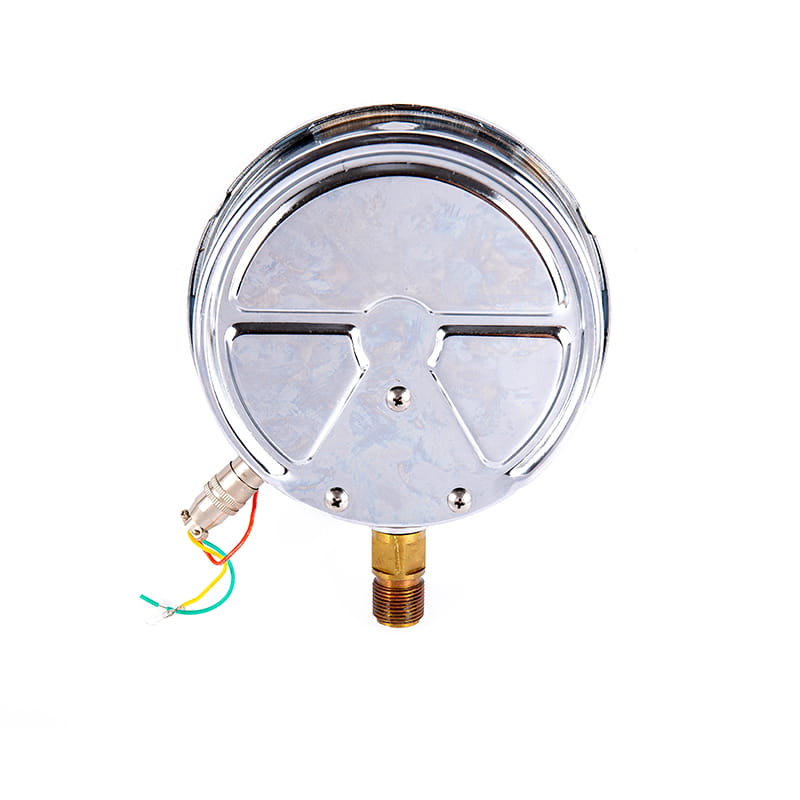

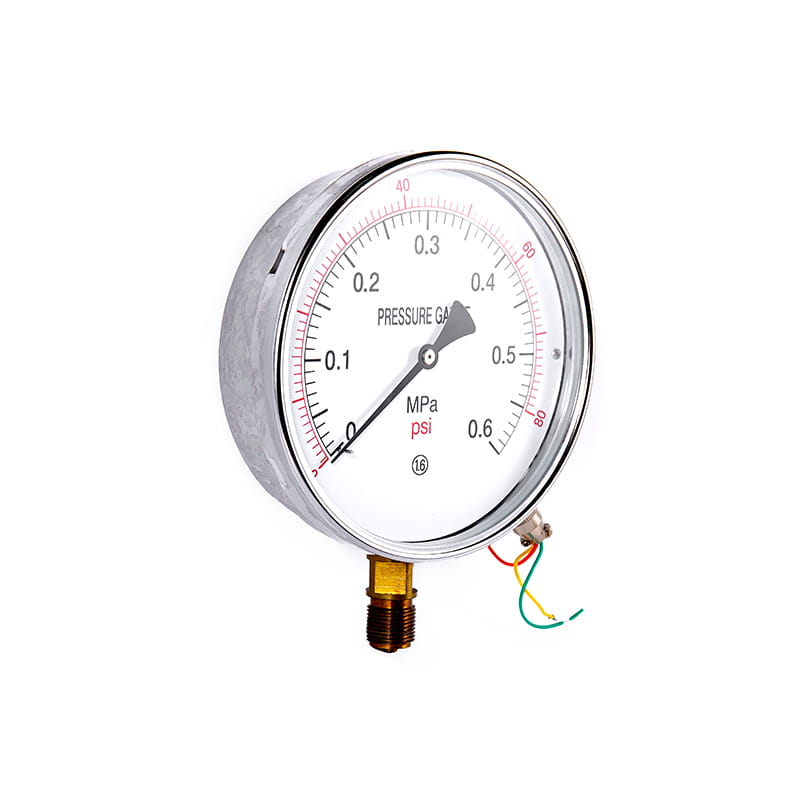

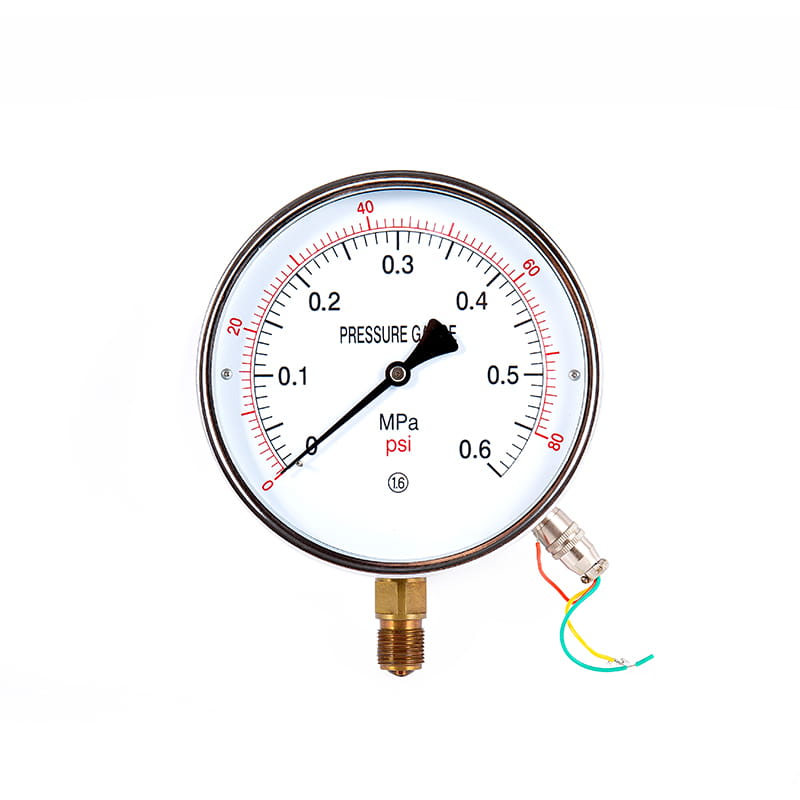

YTT remote pressure gauges

◆ Model: YTT100 YTT100A YTT150 YTT150A

◆ Application: This type of instrument is suitable for measuring the pressure of liquids, gases or vapors without explosion hazard, no crystallization, no solidification, and no corrosive effect on copper and copper alloys.

In addition to the local indication of the pressure value, the instrument can also continuously output (0~10) mA or (4~20) mA DC signal, which can be transmitted to the control room at a long distance, and can be used with intelligent digital display instruments to form an automatic system for display, recording, adjustment and control.

The instrument has undergone a major transformation inside, the original differential transformer has been removed and replaced with a diffusion silicon voltage-sensing element, so that the local display part and the signal output part have become two independent systems, and the output signal accuracy and reliability have been greatly improved, and the accuracy can reach 1.0 or even 0.5 level.
◆ If it is necessary to make a shockproof type pressure gauge, it can be filled with glycerin or silicone oil.

Get A Quote

PREV：YD series positioning pressure gauges NEXT：YTZ series resistor remote pressure gauges

Parameter
Contact Us

◆ Technical Parameters:

Model		YTT100	YTT150	YTT100A	YTT150A
Nominal diameter		Φ100	Φ150	Φ100	Φ150
Mounting type	Ⅰ	*	*	*	*
	Ⅱ	*	*	*	*
	Ⅳ	*	*	*	*
	Ⅵ	*	*	*	*
Electrical parameters		★ Power supply: 24V DC ★ Output signal: (4~20)mA DC ★ Load resistance: 250Ω		★ Power supply: 220V AC ★ Output signal: (0~10)mA DC ★ Load resistance: ≤1.5kΩ
Wiring
Accuracy class		1.6
Signal output accuracy		1.0； 0.5
Measuring range （MPa）		True space: -0.1~0 Pressure vacuum: -0.1~0.06 -0.1~0.15 -0.1~0.3 -0.1~0.5 -0.1～0.9 -0.1～1.5 -0.1～2.4 Pressure: 0~0.1 0~0.16 0~0.25 0~0.4 0~0.6 0～1 0～1.6 0～2.5 0～4 0～6 0～10 0～16 0～25 0～40 0～60 0～100 0～160 0～250
Environmental conditions of use		Temperature: -10°C~55°C; Relative humidity: ≤85%
Vibration resistance rating		V· H· 3
Ingress protection		IP54
Enforce the standard		JB/T 10203
Fitting threads		M20×1.5
Note: The joint thread can be made into pipe thread or tapered pipe thread according to user requirements (see selection guide).

◆ Dimensions:

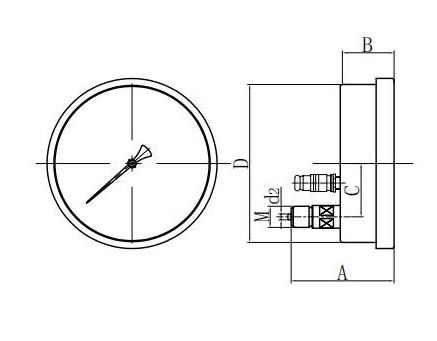

Radial Direct (I.)

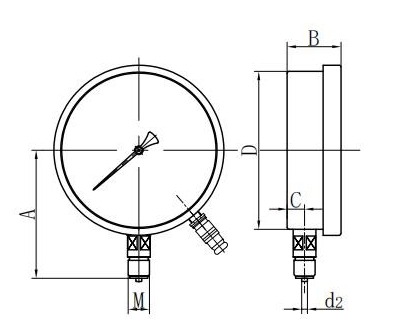

Axial Eccentric Direct (II.)

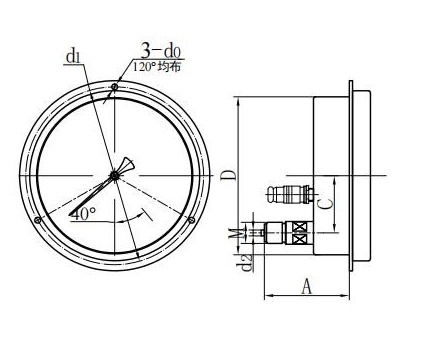

Axial eccentric flush mount (IV.)

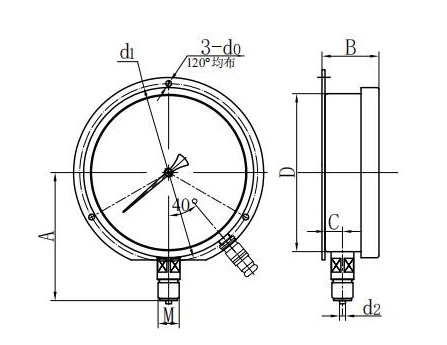

Radial convex mount (VI.)

Model	Dimensions(mm)
Model	A	B	C	D	d0	d1	d2	M
YTT100-Ⅰ YTT100A-Ⅰ	89	45	17	Φ98	/	/	Φ6	M20×1.5
YTT100-Ⅱ YTT100A-Ⅱ	83	45	34	Φ98	/	/	Φ6	M20×1.5
YTT100-Ⅳ YTT100A-Ⅳ	68	45	34	Φ98	Φ6	Φ118	Φ6	M20×1.5
YTT100-Ⅵ YTT100A-Ⅵ	89	45	17	Φ98	Φ6	Φ118	Φ6	M20×1.5
YTT150-Ⅰ YTT150A-Ⅰ	116	48	19	Φ148	/	/	Φ6	M20×1.5
YTT150-Ⅱ YTT150A-Ⅱ	90	49	55	Φ148	/	/	Φ6	M20×1.5
YTT150-Ⅳ YTT150A-Ⅳ	69	49	55	Φ148	Φ6	Φ165	Φ6	M20×1.5
YTT150-Ⅵ YTT150A-Ⅵ	116	48	20	Φ148	Φ6	Φ165	Φ6	M20×1.5
