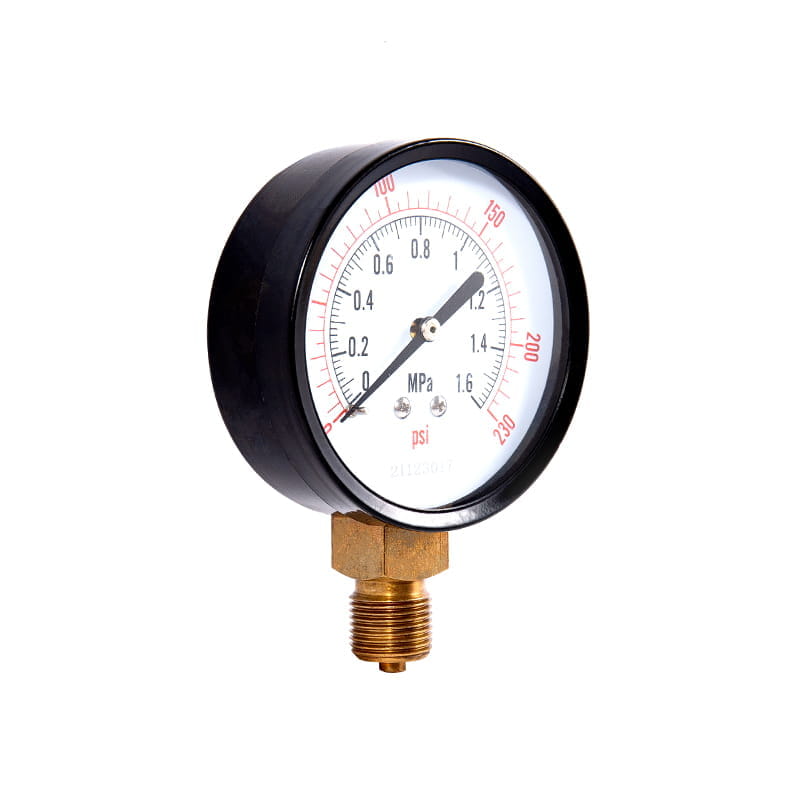

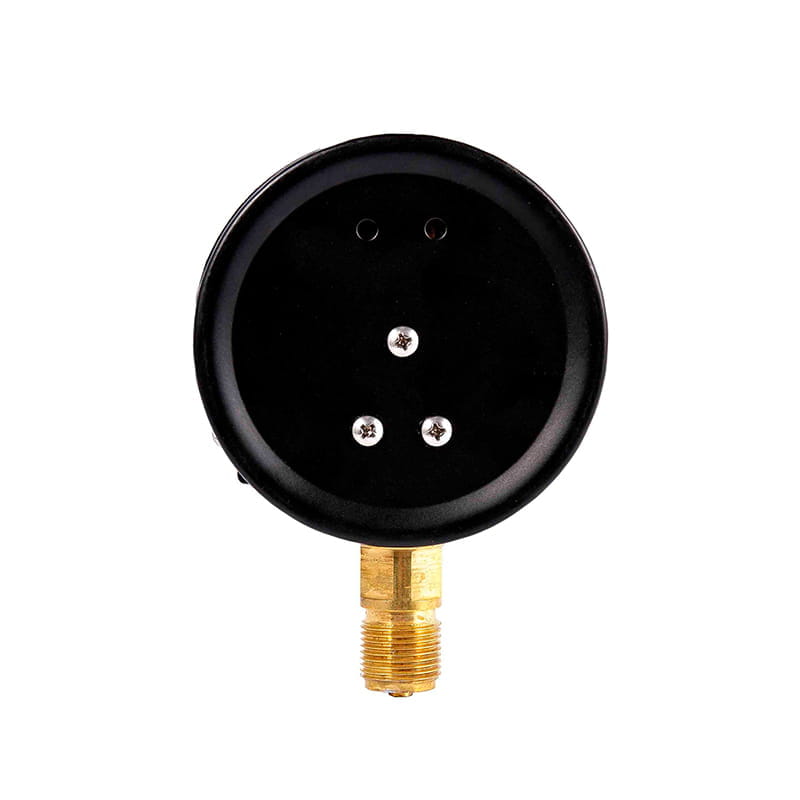

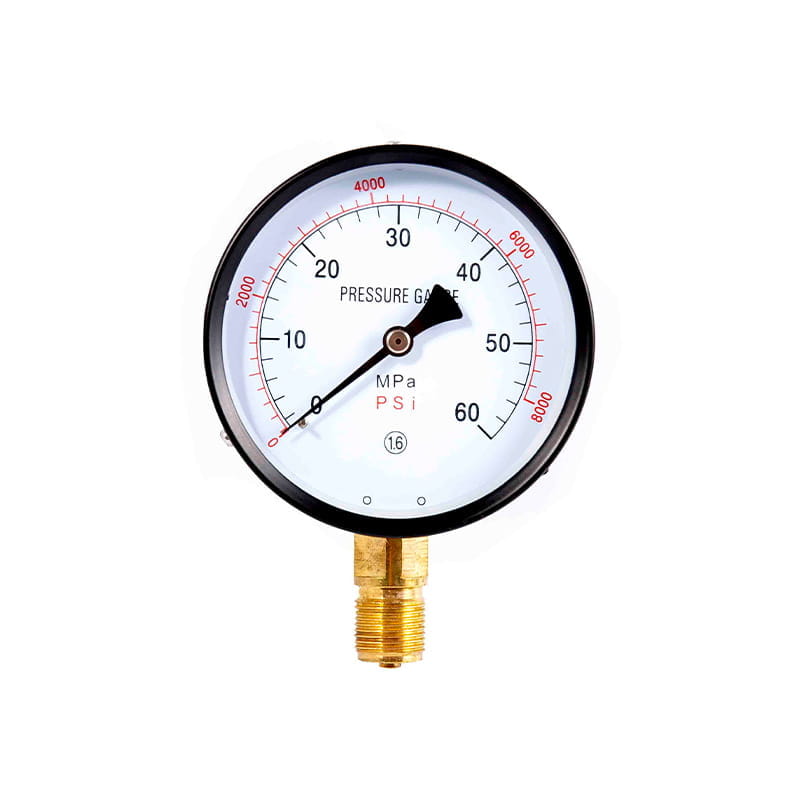

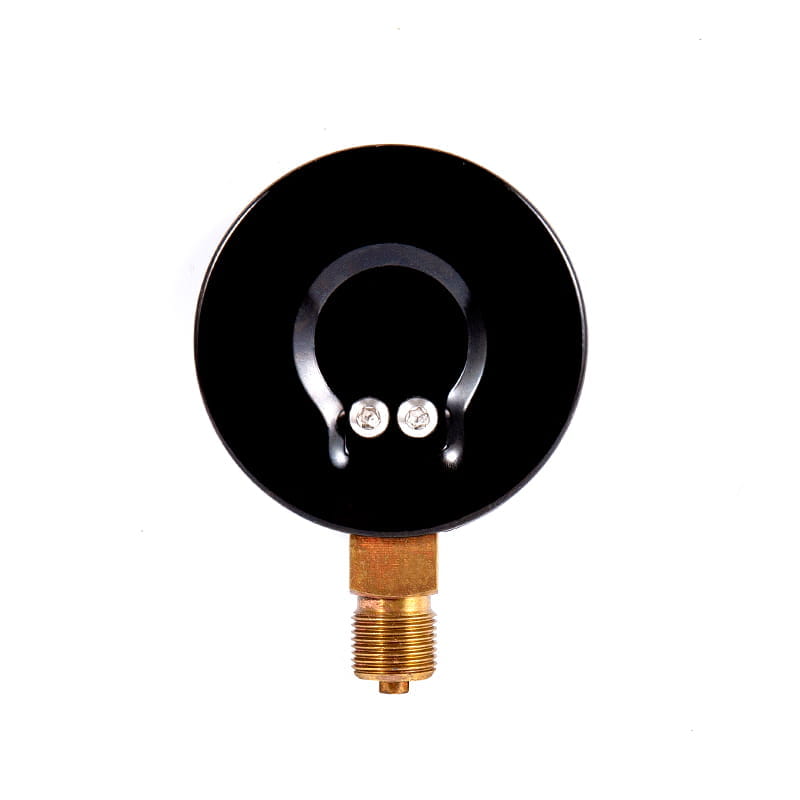

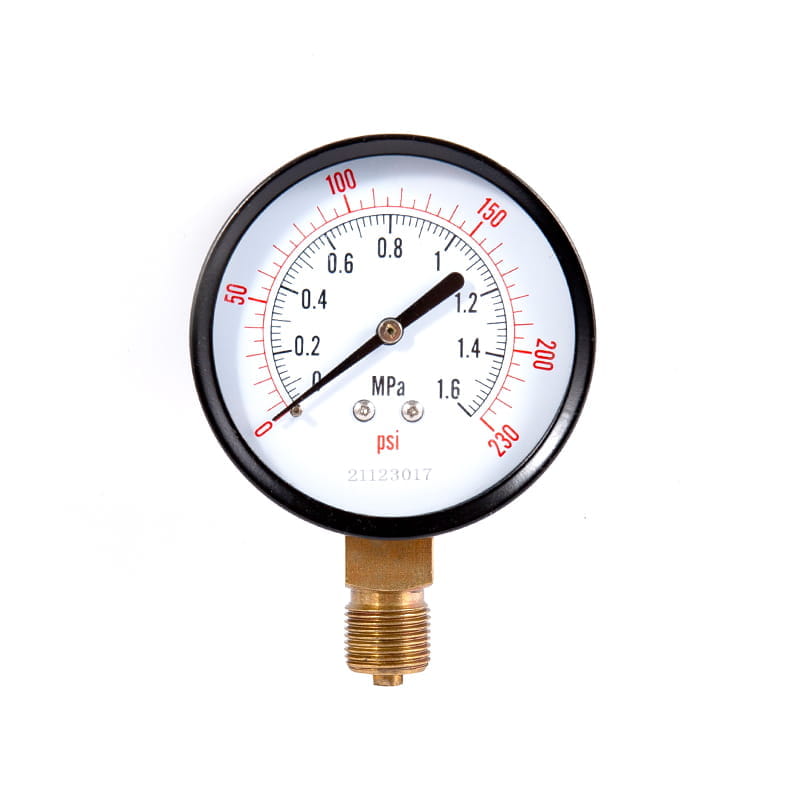

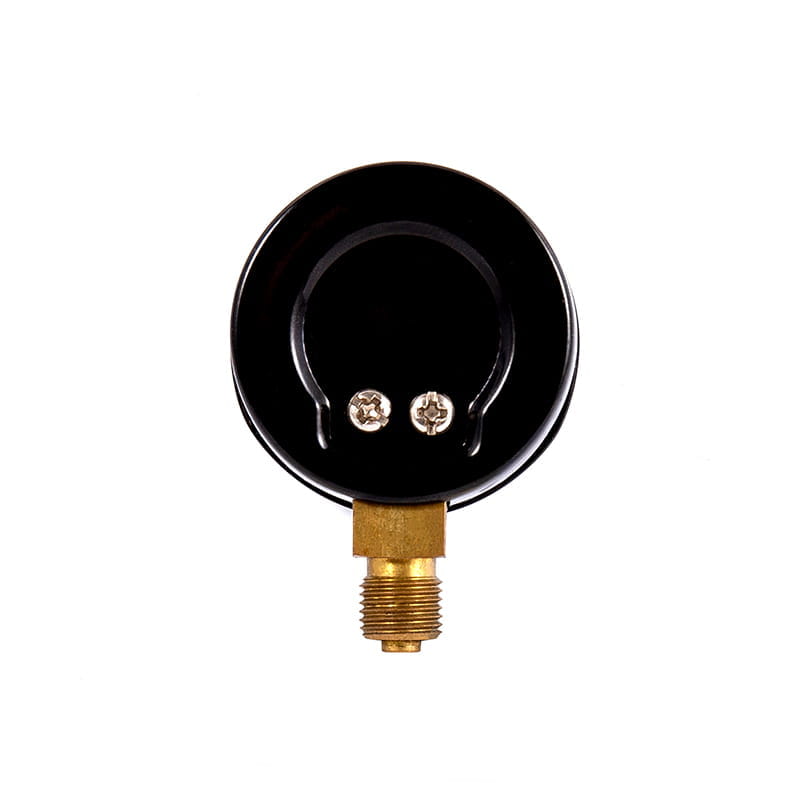

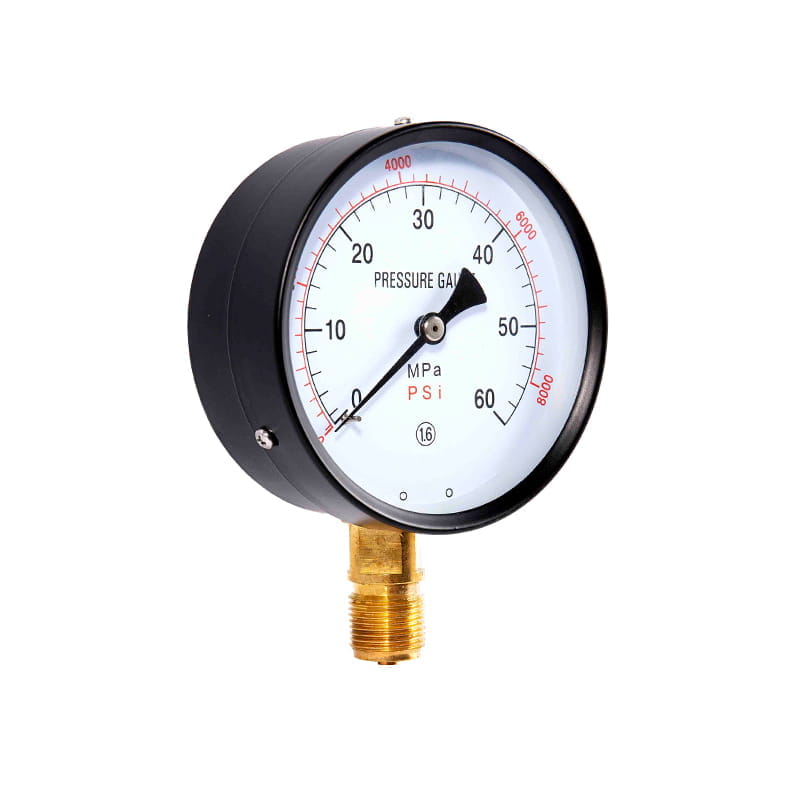

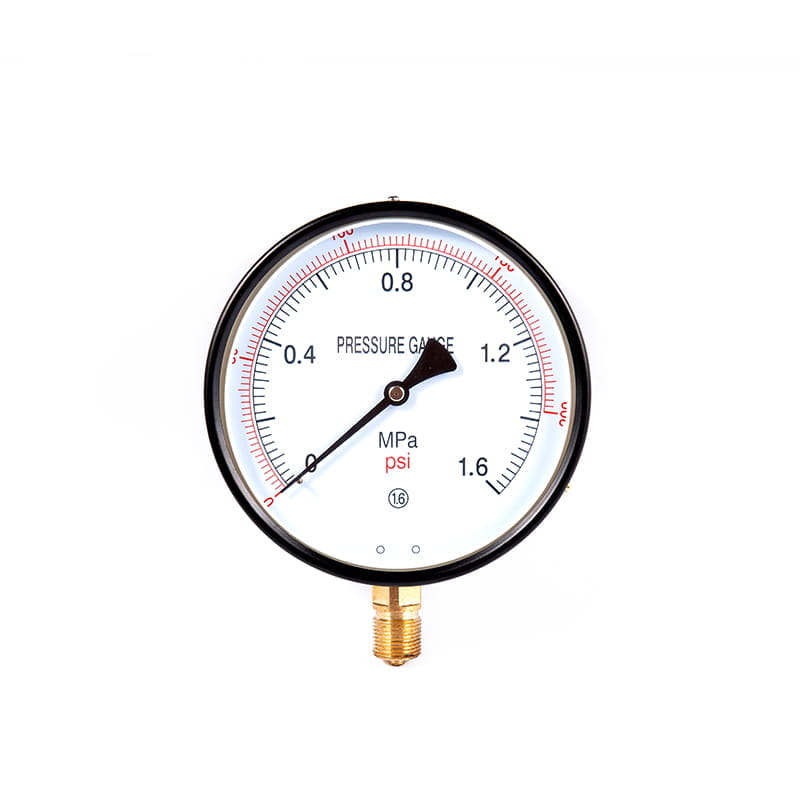

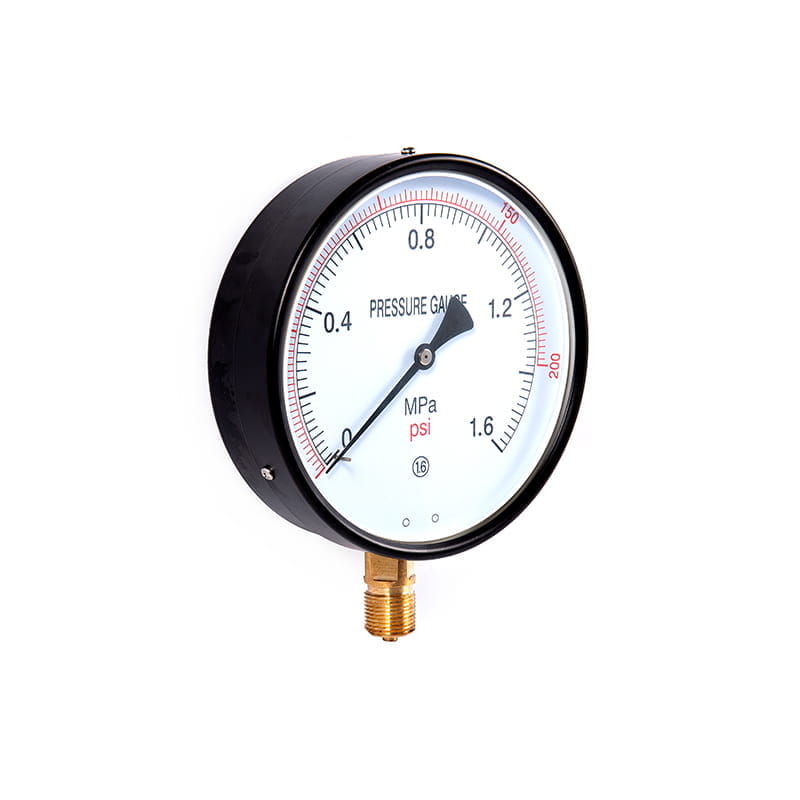

Y series general pressure gauge

◆ Model: Y40 Y50 Y60 Y75 Y100 Y150 Y200 Y250
◆ Use: This series of instruments is suitable for measuring the pressure of liquid, gas or steam which has no danger of explosion, does not crystallize, does not solidify, and has no corrosive effect on copper and copper alloy.
◆ In practical application, according to the special characteristics of various media (such as oil ban, fire prevention, corrosion resistance, etc.), the requirements of the instrument are different, so this series of instruments derive many corresponding special instruments, their nominal diameter, installation type, connector thread, accuracy level, measuring range, etc. are the same as the general pressure gauges, and there are mainly two categories:
1.1 Suitable for measuring the pressure of flammable and explosive media. It is strictly prohibited to contact with greasy flammable substances. Degreasing treatment is made before leaving the factory, and it is tested for no grease.
1.1.1 YO series oxygen pressure gauge
1.1.2 YH series hydrogen pressure gauge
1.1.3 YY series acetylene pressure gauge
1.2 The materials used are resistant to the corrosion of the medium or the instrument has no influence on the medium, and ensure that the detecting elements and interfaces are clean and free of grease.
1.2.1 YA series ammonia pressure gauge
1.2.2 YDq series nitrogen pressure gauge

Get A Quote

PREV：YN series earthquake-resistant (seismic) pressure gauge NEXT：No next article

Parameter
Contact Us

◆ Technical Parameters：

Model Number		Y40	Y50	Y60	Y75	Y100	Y150	Y200	Y250
Nominal Diameter		Φ40	Φ50	Φ60	Φ75	Φ100	Φ150	Φ200	Φ250
Installation Form	Ⅰ	*	*	*	*	*	*	*	*
	Ⅱ	/	/	*	/	*	*	*	*
	Ⅲ	*	*	*	*	/	/	/	/
	Ⅳ	/	/	*	/	*	*	/	/
	Ⅴ	*	*	*	*	/	/	/	/
	Ⅵ	/	/	*	*	*	*	/	/
Connector Thread		M10×1		M14×1.5		M20×1.5
Accuracy Class		2.5				1.6
Measurement range （MPa）		Vacant：-0.1～0 Pressure vacuum：-0.1～0.06 -0.1～0.15 -0.1～0.3 -0.1～0.5 -0.1～0.9 -0.1～1.5 -0.1～2.4 Pressure：0～0.1 0～0.16 0～0.25 0～0.4 0～0.6 0～1 0～1.6 0～2.5 0～4 0～6 0～10 0～16 0～25 0～40 0～60 0～100 0～160
Environmental conditions of use		Temp：-40℃～70℃
Vibration Rating		V·H·3
Borden Tube Material		QSn4-0.3
Protection Class		IP54、IP65
Implementation standards		GB/T 1226
Note: 1. Joint threads can be customized according to user requirements.

◆ External Dimensions:

Radial direct type (Ⅰ)

Axial eccentric direct type (Ⅱ)

Axial concentric direct type (III)

Axial eccentric insert type (IV)

Axial concentric insertion type (V)

Radial convex type (VI)

Model Number	Overall dimensions（mm）
Model Number	A	B	C	D	d0	d1	d2	M
Y40－Ⅰ	38	25	8.5	Φ41	/	/	Φ3.5	M10×1
Y40－Ⅲ	45	26	/	Φ41	/	/	Φ3.5	M10×1
Y40－Ⅴ	38	26	/	Φ41	Φ3.5	Φ53	Φ3.5	M10×1
Y50－Ⅰ	50	29	9.5	Φ52	/	/	Φ4	M10×1
Y50－Ⅲ	54	29	/	Φ52	/	/	Φ4	M10×1
Y50－Ⅴ	47	29	/	Φ52	Φ4	Φ64	Φ4	M10×1
Y60－Ⅰ	54	30	12	Φ60	/	/	Φ5	M14×1.5
Y60－Ⅱ	63	34	18	Φ60	/	/	Φ5	M14×1.5
Y60－Ⅲ	58	30	/	Φ60	/	/	Φ5	M14×1.5
Y60－Ⅳ	45	34	18	Φ60	Φ5	Φ75	Φ5	M14×1.5
Y60－Ⅴ	45	34	/	Φ60	Φ5	Φ75	Φ5	M14×1.5
Y60－Ⅵ	54	30	12	Φ60	Φ5	Φ75	Φ5	M14×1.5
Y75－Ⅰ	62	31	10	Φ75	/	/	Φ5	M14×1.5
Y75－Ⅲ	54	32	/	Φ75	/	/	Φ5	M14×1.5
Y75－Ⅴ	54	32	/	Φ75	Φ5	Φ91	Φ5	M14×1.5
Y75－Ⅵ	62	32	10	Φ75	Φ5	Φ91	Φ5	M14×1.5
Y100－Ⅰ	89	44	17	Φ100	/	/	Φ6	M20×1.5
Y100－Ⅱ	83	44	30	Φ100	/	/	Φ6	M20×1.5
Y100－Ⅳ	68	44	30	Φ100	Φ6	Φ118	Φ6	M20×1.5
Y100－Ⅵ	89	44	18	Φ100	Φ6	Φ118	Φ6	M20×1.5
Y150－Ⅰ	115	49	17	Φ150	/	/	Φ6	M20×1.5
Y150－Ⅱ	88	49	55	Φ150	/	/	Φ6	M20×1.5
Y150－Ⅳ	85	49	55	Φ150	Φ6	Φ165	Φ6	M20×1.5
Y150－Ⅵ	115	49	18	Φ150	Φ6	Φ165	Φ6	M20×1.5
Y200－Ⅰ	140	53	20	Φ200	/	/	Φ6	M20×1.5
Y200－Ⅱ	92	53	53	Φ200	/	/	Φ6	M20×1.5
Y250－Ⅰ	165	53	20	Φ250	/	/	Φ6	M20×1.5
Y250－Ⅱ	92	53	53	Φ250	/	/	Φ6	M20×1.5
