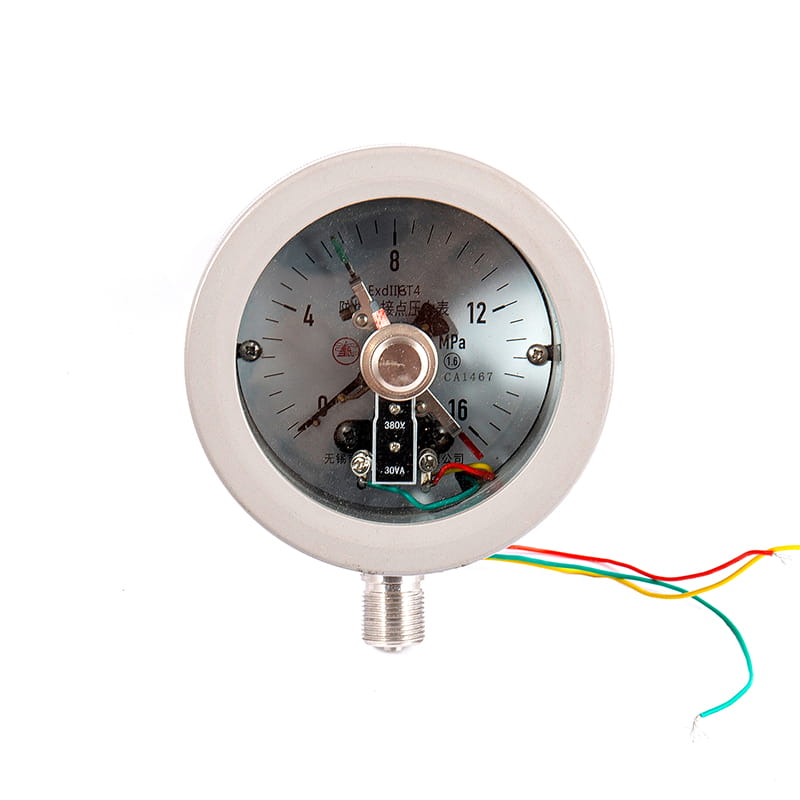

YTX-B series explosion-proof electric contact pressure gauge

◆ Model: YTX100B YTX150B

◆ Uses: This series of instruments is specially used in the surrounding environment of combustible media and explosive mixture danger of places, measuring the pressure of liquids and gases, with the corresponding electrical devices, can achieve alarm or automatic control and other functions.

The instrument adopts a magnetic electrical contact, which has the characteristics of large suction force and reliable contact.

This instrument complies with the requirements in GB 3836.1-2010 "Explosive atmospheres – Part 1: General requirements for equipment" and GB3836.2-2010 "Explosive atmospheres – Part 2: Equipment protected by flameproof enclosures "d".

This instrument is installed in a place where there is an explosive gas mixture of class II or less on site. However, the installation site should be free of gases that do not corrosive to the product shell.

Get A Quote

PREV：YS series digital pressure gauge NEXT：YXD series photoelectric electric contact pressure gauge

Parameter
Contact Us

◆ Technical Parameters:

Model		YTX100B	YTX150B
Nominal diameter		Φ100	Φ150
Mounting type	Ⅰ	*	*
	Ⅵ	*	*
Fitting threads		M20×1.5
Accuracy class		1.6
Measuring range （MPa）		Pressure vacuum: -0.1~0.15 -0.1~0.3 -0.1~0.5 -0.1～0.9 -0.1～1.5 -0.1～2.4 Pressure: 0~0.16 0~0.25 0~0.4 0~0.6 0～1 0～1.6 0～2.5 0～4 0～6 0～10 0～16 0～25 0～40 0～60 0～100 0～160 0～250
Environmental conditions of use		Temperature: -10°C~55°C
Electrical parameters		★ Maximum working voltage: 380V AC; 220V DC ★ Maximum contact power: 30VA ★ Control mode: full-scale adjustable single upper limit, single lower limit, upper and lower limit, upper upper limit (double upper limit), lower limit (double lower limit) and other slow magnetic electric contact switches
Wiring		See the attached drawing of the instrument housing
Explosion-proof certificate number		GYB03196
Flameproof marking		ExdⅡBT4
Ingress protection		IP54
Seismic rating		V· H· 3
Note: The joint thread can be made into pipe thread or tapered pipe thread according to user requirements (see selection guide).

◆ Dimensions: (use this figure first, if you can't use it, please redraw it according to the real thing)

Radial Direct (I.)

Radial Convex (VI.)

Model	Dimensions(mm)
Model	A	B	C	D	d0	d1	d2	M
YTX100B－Ⅰ	95	130	60	Φ100	/	/	Φ6	M20×1.5
YTX150B－Ⅵ	130	182	105	Φ160	Φ195	Φ6.6	Φ6	M20×1.5
