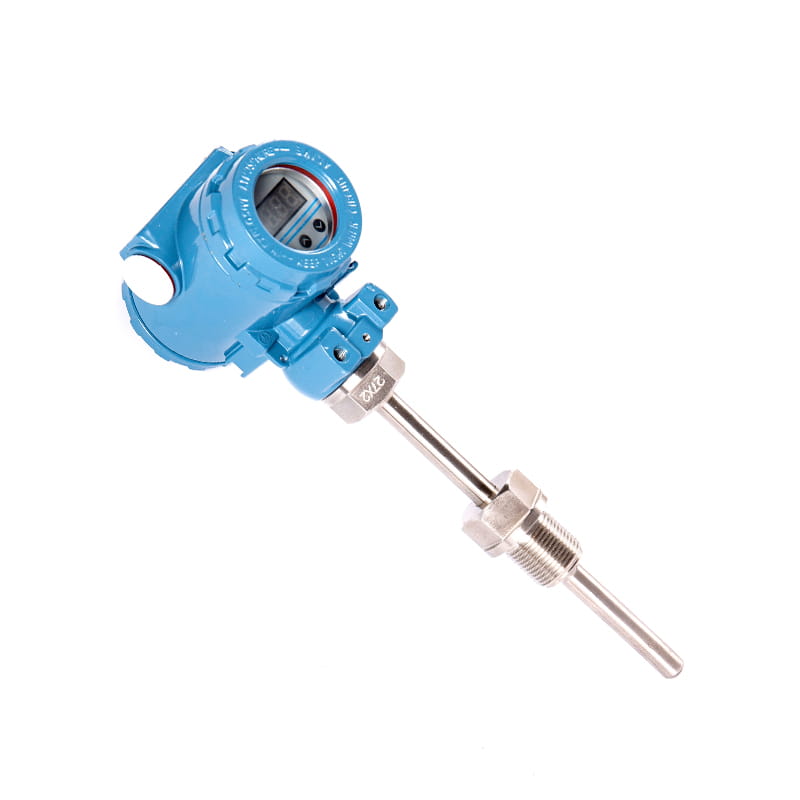

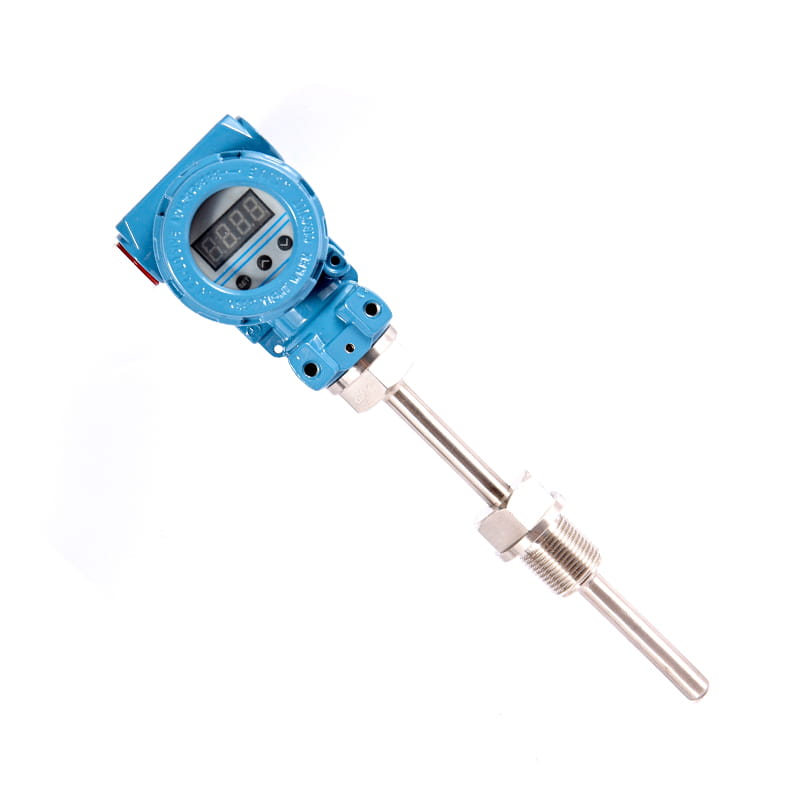

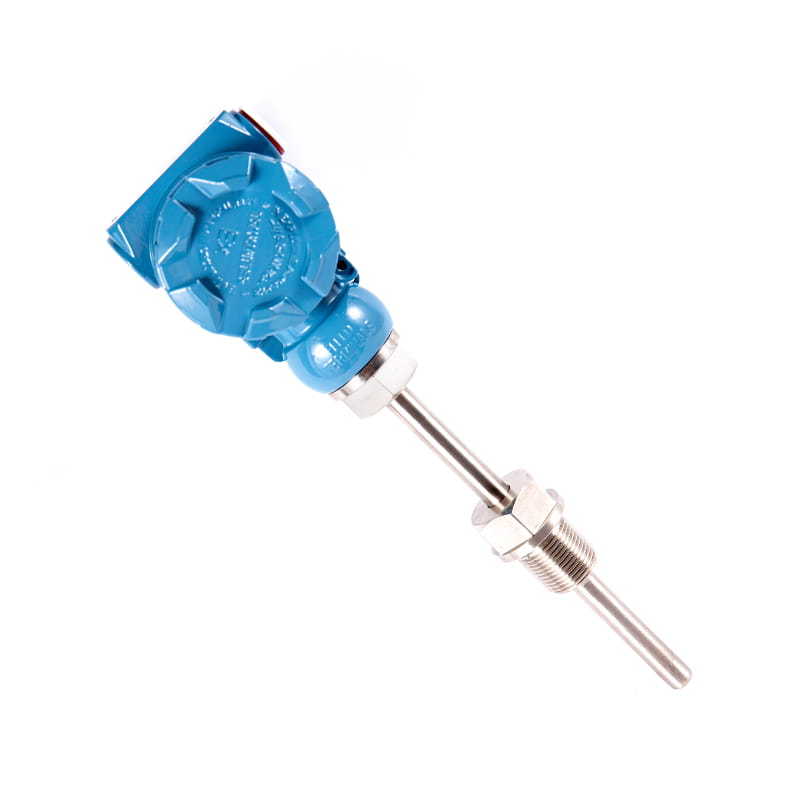

WSZC-2 integrated temperature transmitter

◆ Model: WSZC-2

◆ Overview: The transmitter is composed of advanced circuit module integration technology, which can be connected with different temperature sensors to realize the measurement of temperature and medium, and output standard voltage signal or current signal.

◆ Features:

1. The range is adjustable, and the range adjustment and the zero adjustment do not affect each other.

2. Ultra-wide working environment temperature: -40°C~125°C.

3. The compensation accuracy of the cold end of the thermocouple is high, and the compensation accuracy is ±0.5°C in the whole temperature range.

4. Special heat dissipation device to effectively control heat conduction.

5. On-site digital or analog display.

Get A Quote

PREV：No previous article NEXT：WSZC-1 temperature transmitter

Parameter
Contact Us

◆ Technical Parameters:

Range	-200°C~1800°C (according to the selected thermocouple, RTD)
Supply voltage	24V DC(12V DC~36V DC)
accuracy	±0.1% F.S； ±0.2% F.S； ±0.5% F.S
Two-wire current signal output	4mA~20mA(250Ω) (linear relationship with the temperature to be detected)
Input line resistance	≤50Ω
Ambient temperature influences	0.02% FS/℃
Operating temperature range	-25℃~85℃
Thermocouple cold junction compensation error	Less than 0.5% (0.8°C for S-indexing)
