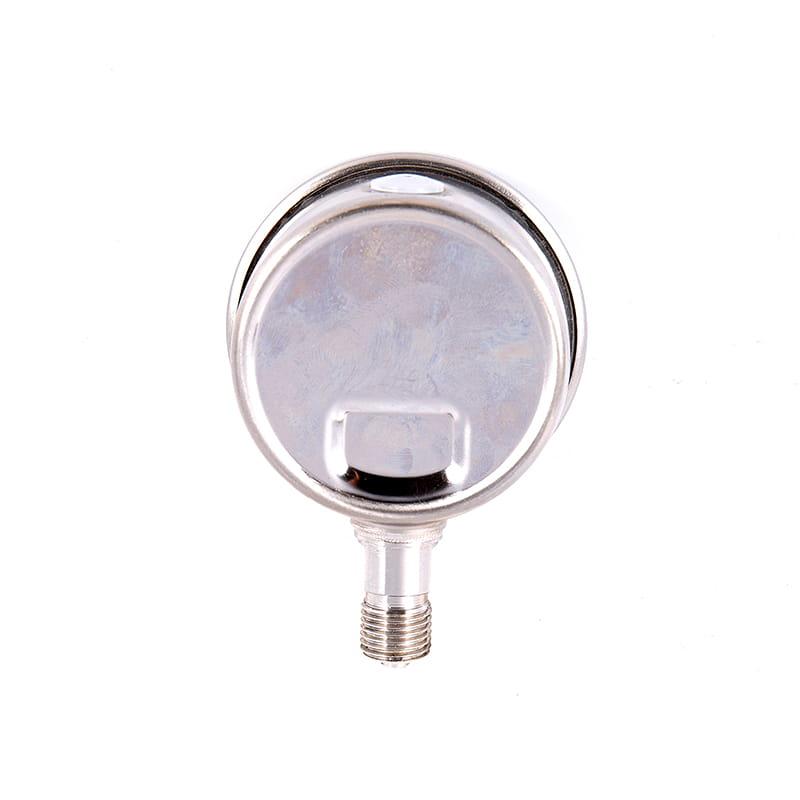

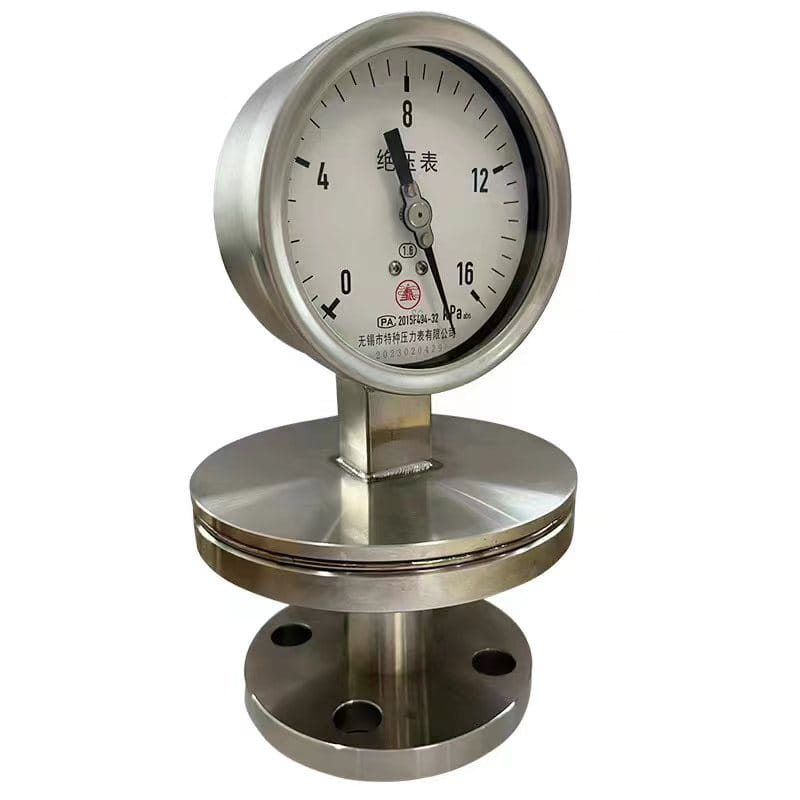

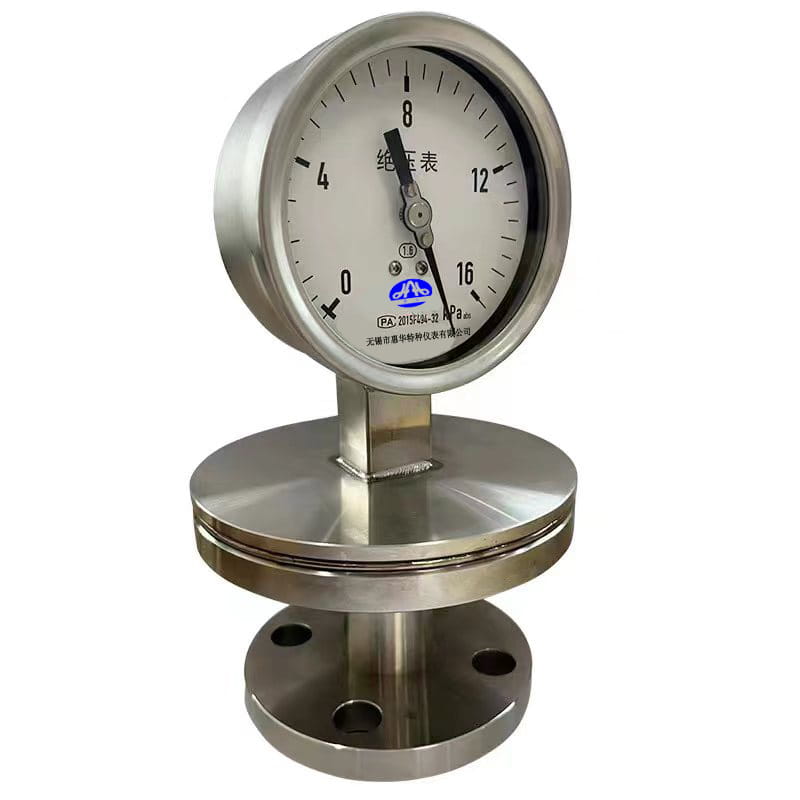

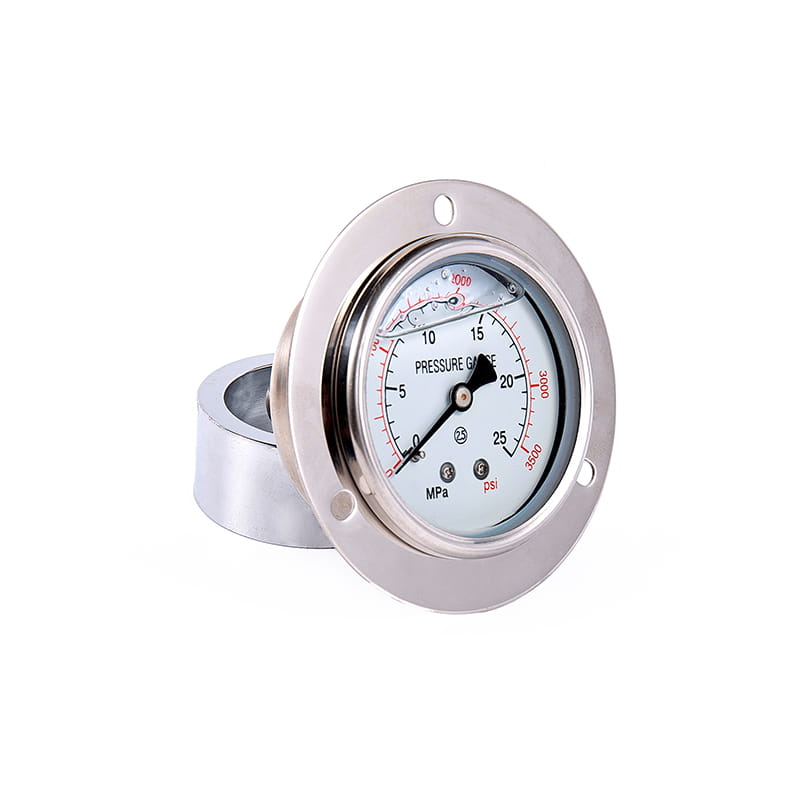

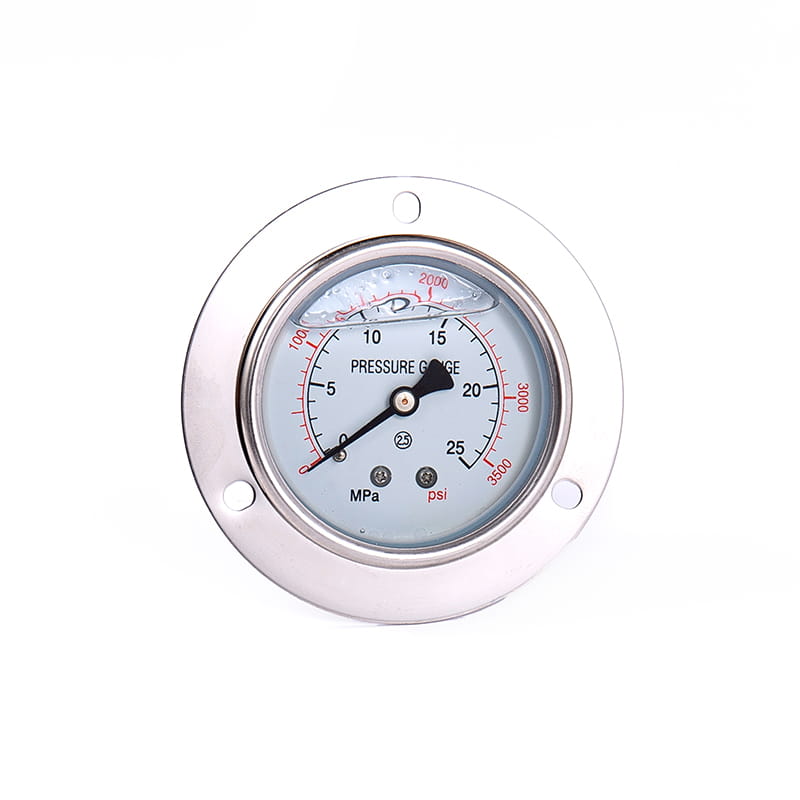

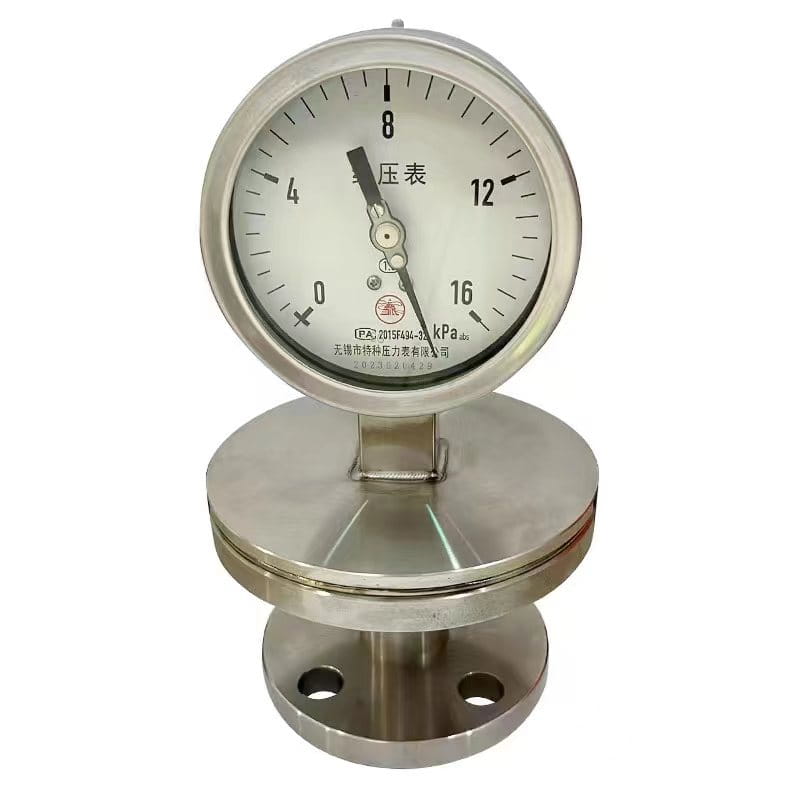

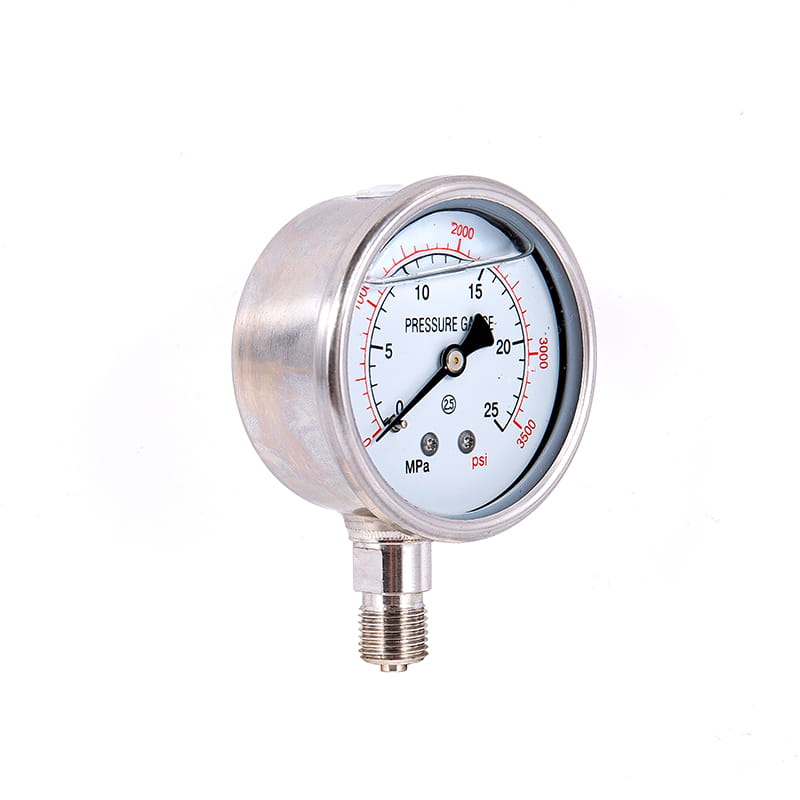

YJY series absolute pressure gauge

◆ Model: YJY100 YJY150
◆ Use: Absolute pressure refers to the pressure which is higher than absolute pressure zero with absolute pressure zero (absolute vacuum) as the reference. Absolute pressure value can be expressed by the following formula:
Absolute pressure value = vacuum (negative pressure) value + atmospheric pressure value
Absolute pressure gauge is mainly used to monitor or measure the absolute pressure in some vacuum equipments (e.g. vacuum packaging machinery, equipments for monitoring condensation pressure and vapor pressure of liquid, etc.).
◆ Working pressure: Static load is used up to 3/4 of the upper limit value of measurement, exchange load is used up to 2/3 of the upper limit value of measurement, and short-time pressure is used up to the upper limit value of measurement.

Get A Quote

PREV：Y-M Series diaphragm pressure gauges NEXT：YQ series safety pressure gauge

Parameter
Contact Us

◆ Technical Parameters：

model number		YJY100	YJY150
Nominal Diameter		Φ100	Φ150
Installation form	Ⅰ	*	*
	Ⅱ	*	*
	Ⅳ	*	*
	Ⅵ	*	*
Connector Thread		M20×1.5
Accuracy Class		0.4；1.0；1.6；2.5
Measurement range （MPa）		0～0.1 0～0.16 0～0.25 0～0.4 0～0.6 0～1 0～1.6 0～2.5 0～4 0～6 0～10
Environmental conditions of use		temp：-40℃～70℃（Accuracy Class：0.4） -50℃～160℃（Accuracy Class：1.0~2.5） relative humidity：≦80 %
vibration rating		V·H·2；V·H·3
protection class		IP65
Implementation standards
Note: 1. Joint threads can be customized according to user requirements.

◆ External Dimensions:

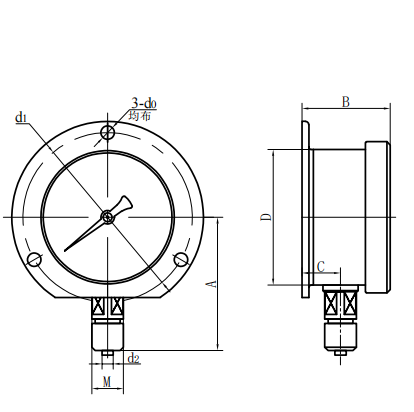

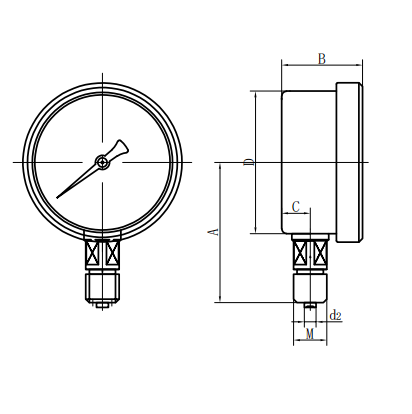

Radial direct type (Ⅰ)

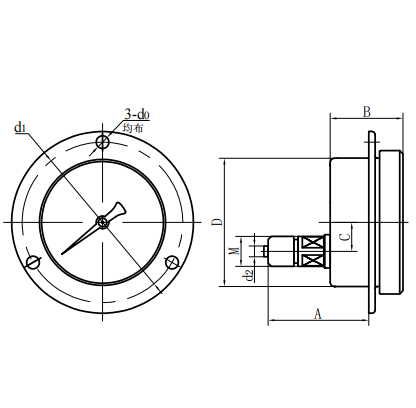

Axial eccentric direct type (Ⅱ)

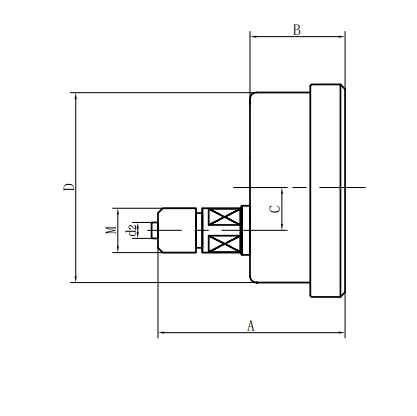

Axial concentric direct type (III)

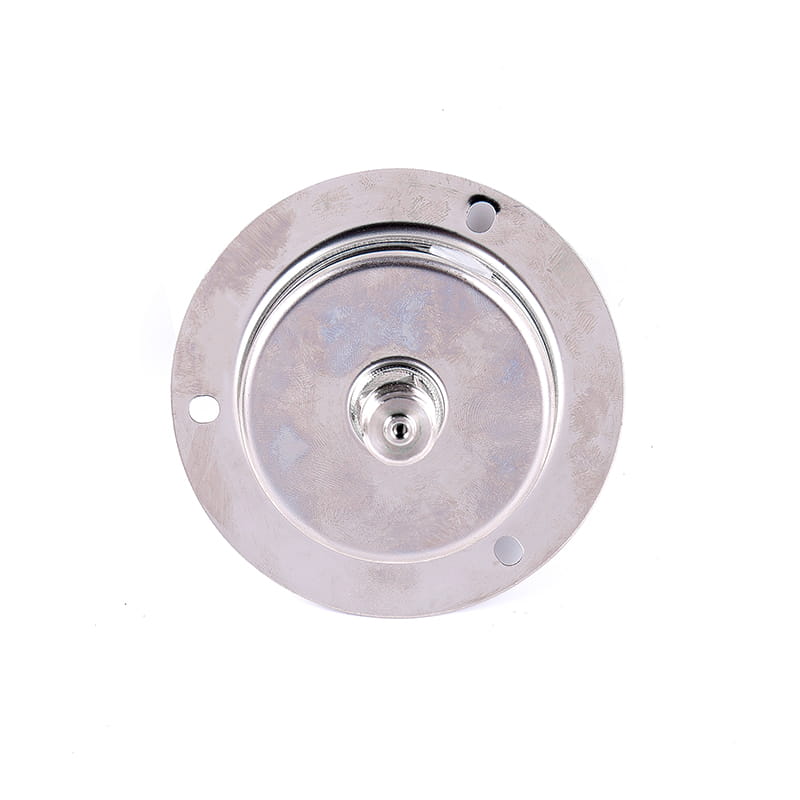

Axial eccentric insert type (IV)

model number	Overall dimensions（mm）
model number	A	B	C	D	d0	d1	d2	M
YJY100－Ⅰ	90	48	15	Φ100	/	/	Φ6	M20×1.5
YJY100－Ⅱ	83	44	34	Φ100	/	/	Φ6	M20×1.5
YJY100－Ⅳ	68	44	34	Φ100	Φ6	Φ118	Φ6	M20×1.5
YJY100－Ⅵ	90	48	15	Φ100	Φ6	Φ118	Φ6	M20×1.5
YJY150－Ⅰ	117	51	16.5	Φ150	/	/	Φ6	M20×1.5
YJY150－Ⅱ	92	52	55	Φ150	/	/	Φ6	M20×1.5
YJY150－Ⅳ	69	52	55	Φ150	Φ6	Φ165	Φ6	M20×1.5
YJY150－Ⅵ	117	53	28	Φ150	Φ6	Φ165	Φ6	M20×1.5
