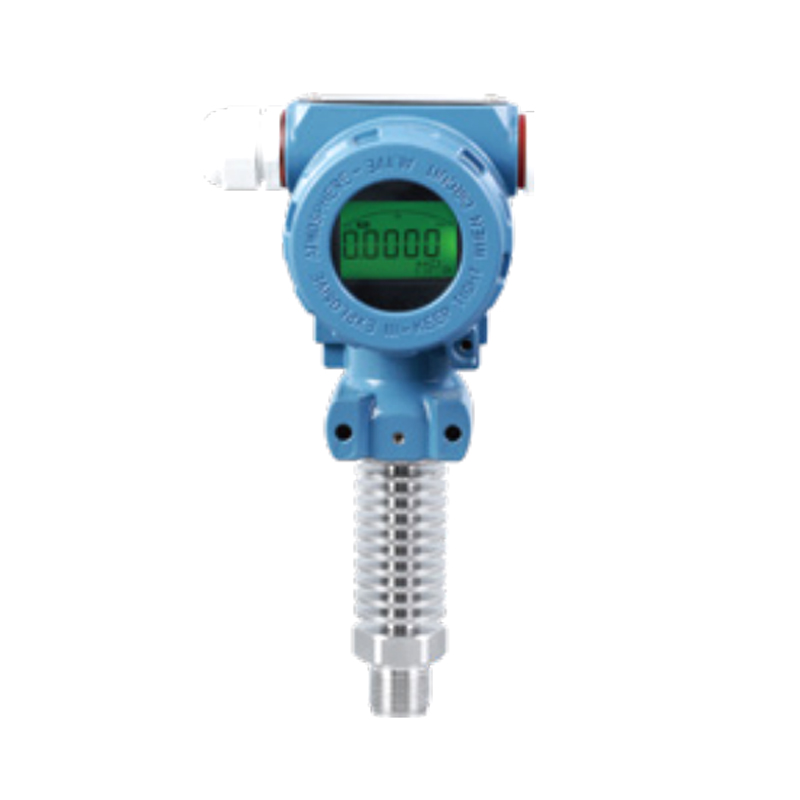

High-temperature pressure transmitters use high-temperature resistant pressure sensors as the signal measurement components. The pressure of the measured medium is transmitted to the sensor through the heat dissipation structure on the pressure transmitter. The high-precision signal processing circuit is located inside the aluminum alloy housing, converting the sensor signal into a standard signal for output.The entire product has undergone rigorous testing and aging screening of components, semi-finished products and finished products. Its performance is stable and reliable, enabling the product to work stably for a long time when used for high-temperature pressure measurement.It is widely used in environments with harsh conditions such as oil, chemical industries, boilers, sterilization tanks, etc. At the same time, it can display the on-site pressure, perform zero point reset and range migration.
Performance Parameters:
| Model | YSZC-5Lg |
| Supply Power | 12-36VDC |
| Output Signal | 4-20mA, RS485, and so on ...... |
| Range | -100kPa-1kPa...100MPa |
| Compensation Temperature | -10~70℃ |
| Medium Temperature | -40~200℃ (Customizable ultra-high-temperature type) |
| Operating Temperature | -20~70℃ |
| Accuracy | ±0.25%FS、±0.5%FS、±0.1%FS |
| Pressure Type | Gauge Pressure, Absolute Pressure， Negative Pressure |
| Overload Range | 200% Range |
| Temperature Influence | ±0.01%FS/°C（Within the temperature compensation range） |
| Vibration Resistance | 20G,20-5000Hz |
| Impact Resistance | 100G,11ms |
| Process Connection | M20*1.5, G1/4, 1/2 NPT, etc. are all available for selection and customization. |
| Long-term Stability | ≤500Ω |
| Protection | IP65 |
| Medium compatibility | Compatible with various fluid media for 316L stainless steel |
Characteristic：
·Use imported high-temperature-resistant chips and 316L stainless steel isolation diaphragms
·LED digital display, LCD liquid crystal display are available as options; Exia II CT6 Intrinsically Safe Explosion-proof Option Available
·With a heat dissipation cooler fin design, it can withstand high temperatures and is suitable for media with a maximum temperature of up to 300℃.
·The sturdy and well-sealed aluminum alloy casing can be installed outdoors for use.
