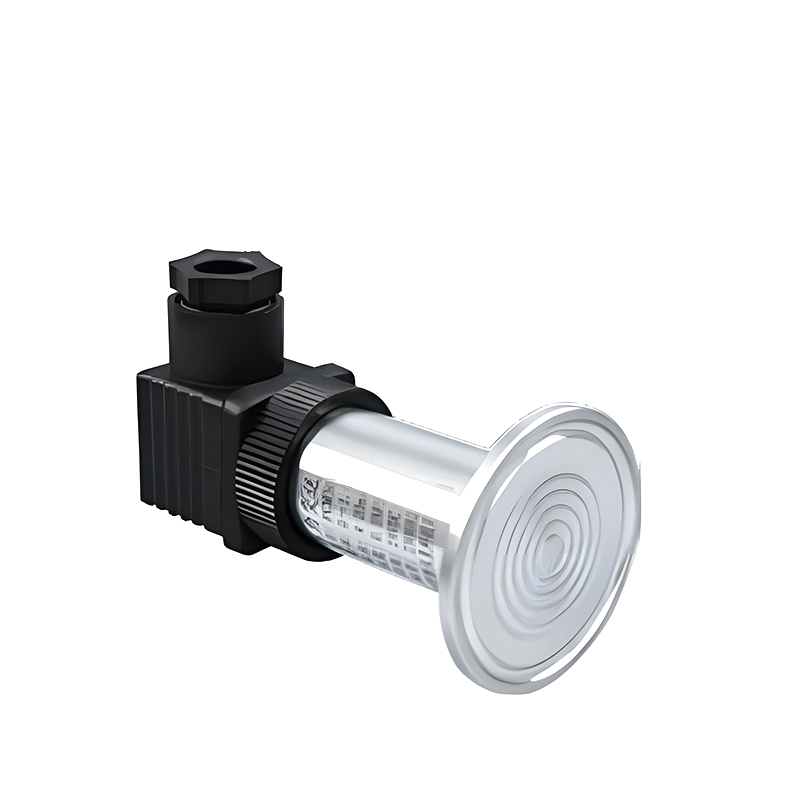

The flange-type pressure transmitter adopts the vacuum oil injection and encapsulation technology. The diffused silicon pressure transmitter is installed and sealed at the rear end of the stainless steel flange. A silicone oil is filled between the sensor and the flange. It has low temperature drift, high performance and strong economy.The flange diaphragm can directly measure pressure. The product has excellent features such as good anti-blockage performance, resistance to acid and alkali, and high temperature resistance. The product structure is stable, with diverse forms and structures, and is easy to install and use. It is widely applied in occasions with sticky and easily clogged materials such as medicine and health care, brewing, beverages, papermaking, adhesives, etc.
| Range | 0-0.1MPa...10MPa |
| Pressure Type | Gauge Pressure |
| Output Signal | 4-20mA、0-5V、0-10V |
| Supply Power | 9-24VDC |
| Accuracy | 0.5%FS |
| Compensation Temperature | -10~70℃ |
| Operation Temperature | -20~80℃ |
| Insulation Resistance | 100MΩ/250VDC |
| Zero-point Temperature Drift | 0.5%FS(MAX) |
| Sensitivity Temperature Drift | 0.5FS%(MAX) |
| Pressure Overdrive | ≤1.5Times |
| Mechanical Shock | 20g(20~5000HZ) |
| Sampling Time | 20 Times Per Second |
| Long-term Stability | ≤0.2%FS/Year |
| Level Of Protection | IP65 |
| Medium Compatibility | Various liquid media compatible with 316L stainless steel |
Features:
·The diaphragm is made of 316L stainless steel.
·Flat membrane type, anti-scaling, anti-blocking.
·High sealing performance and strong corrosion resistance.
·Digital LED and LCD display heads are available for selection.
·Various types flanges are available and can be customized according to reqcustomers uirements.
