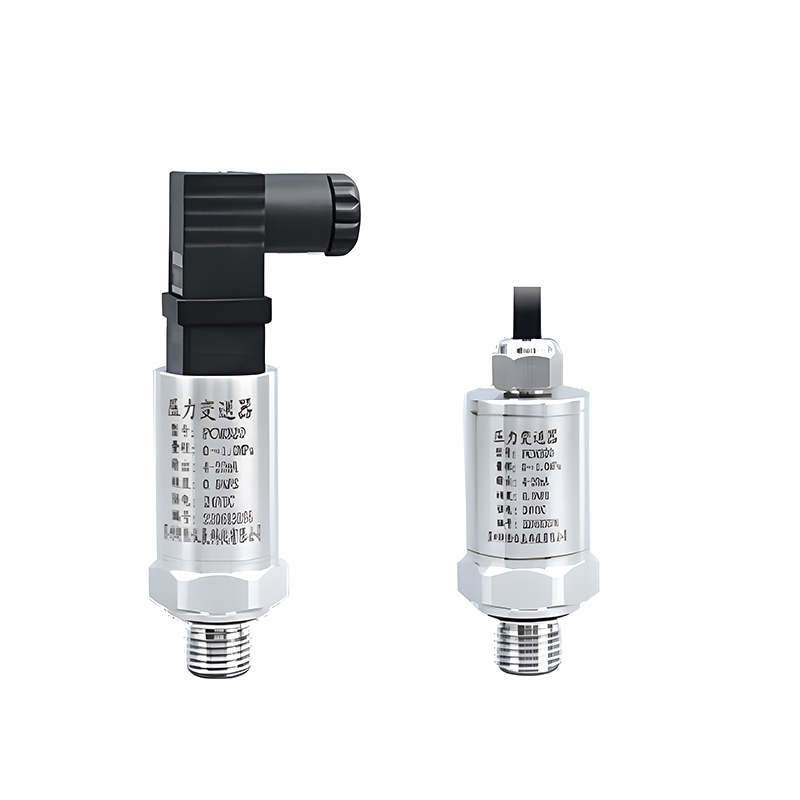

The AIl-Welded Dedicated Pressure Transmitter features a sophisticated integrated welding structure. It incorporates a digital circuit to convert the sensor's millivolt signal into standard current or voltage signals for output. The structure is diverse and the output forms are also diverse.This transmitter is small in size, light in weight, easy to install and use, with stable performance. It is widely applied in various industrial automation equipment and has good adaptability to various complex environments.
| Range | -100kpa...0-10kpa...100MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure |
| Output Signal | 4-20mA、0-5V、0-10V、0.5-2.5V |
| Supply Power | 9-24VDC、3.1-5V |
| Accuracy | 0.5%FS、0.2%FS |
| Compensation Temperature | -10~70℃ |
| Operation Temperature | -20~80℃ |
| Insulation Resistance | 100MΩ/250VDC |
| Zero-point Temperature Drift | 0.5%FS(MAX) |
| Sensitivity Temperature Drift | 0.5FS%(MAX) |
| Pressure Overdrive | ≤1.5Times |
| Mechanical Shock | 20g(20~5000HZ) |
| Sampling Time | 2400 Times Per Second |
| Long-term Stability | ≤0.2%FS/Year |
| Level Of Protection | IP65 |
| Medium Compatibility | Various liquid media compatible with 316L stainless steel |
Features:
·Compact structure,stable and reliable.
·Multiple electrical connections are available.
·Digital circuit processing .
·Inegrated welding structure.
·Diffused silicon piezoresistive sensor.
