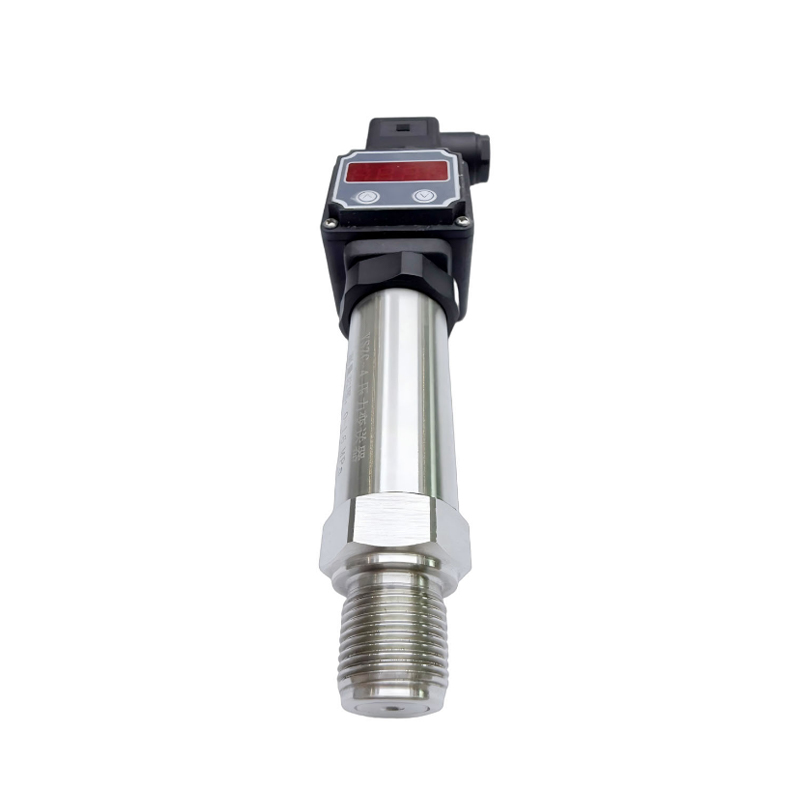

It adopts LED or LCD digital tubes to display the real-time pressure value clearly and intuitively at the measurement site. The reading is more accurate than that of traditional pointer-type dials and ignores visual errors.
| Model | |
| Supply Power | 12-36VDC |
| Output Signal | 4~20mA |
| Range | -0.1~60MPa |
| compensation temperature | -10~70℃ |
| Storage Temperature | -40~125℃ |
| Medium Temperature | -20~85℃ |
| Production | IP65 |
| Pressure Type | differential Pressure , Absolute Pressure,Sealing Pressure |
| Accuracy | ±0.2%，±0.25%，±0.5% |
| Zero-point Temperature Drift | ±0.3%F.S/10℃ |
| Sensitivity temperature drift | ±0.3%F.S/10℃ |
| Overload Pressure | 150%F.S |
| Long-term Stability | ±0.2%F.S/y |
| Natural Frequency | 5kHz-650kHz |
| electrical connection | Direct lead / Aviation connector / Hirschmann (or can be customized) |
| Measuring Medium | Oil, water, gas and other media incompatible with 316 stainless steel |
| Process Connionect | Thread Connection/Hygienic Connection/Flange Connection(Customizable) |
The digital pressure transmitter is an intelligent industrial instrument that combines on-site display and signal transmission functions. It not only can display the pressure value in a digital form on-site, but also can convert the pressure signal into standard electrical signals (such as 4-20mA) for long-distance transmission to the control room (such as PLC, DCS system) for monitoring, recording or control.
Can also call it as "a signal transmitter with a digital screen attached to it".
