HOME / PRODUCTS / Pressure Instruments Accessories / Pressure Instruments Condenser

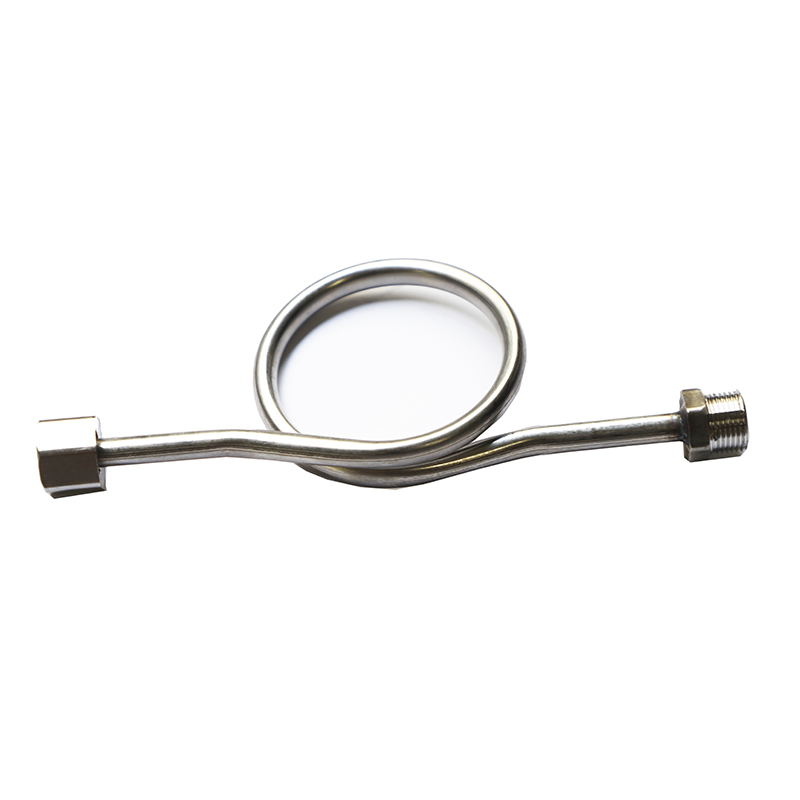

Pressure Instruments Condenser

Pressure Instruments Condenser, also known as pressure gauge elbow or condenser, is a fitting used to connect the pressure gauge to the equipment or pipeline measured by the pressure gauge. It is used to buffer the instantaneous impact of the measured medium on the pressure gauge spring tube and reduce the temperature of the measured medium. It is a device to protect the pressure gauge.
Pressure Instruments Condenser is widely used in various industrial fields, such as petroleum, chemical, pharmaceutical, food, beer, beverage and other industries. It can protect the pressure gauge and pressure transmitter to ensure the accuracy of measurement and the stability of the system.

Function:
The pressure gauge condenser, also known as the pressure gauge elbow or buffer tube, is a component used to connect the pressure gauge with the equipment or pipeline for pressure measurement. It is designed to buffer the instantaneous impact of the measured medium on the pressure gauge's spring tube, and at the same time, it can reduce the temperature of the measured medium. It is a device for protecting the pressure gauge.

Get A Quote

PREV：Pressure Instruments R Hose NEXT：Pressure Instruments Z Damper

Parameter
Contact Us

Material ：316、316L、304

Introduction:

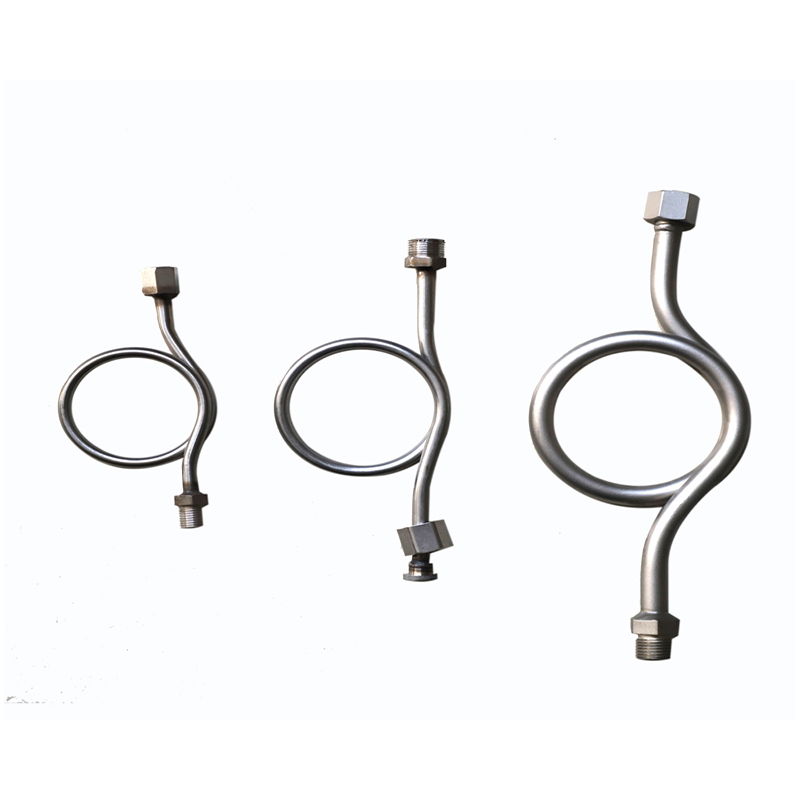

The forms of pressure gauge buffer tubes include: 0-shaped, U-shaped, etc.; the connectors include: M20*1.5-G112, M14*1.5-G114, G1/2-G112, etc. They are widely used in equipment and process pipelines in industries such as beer, beverages, food, papermaking, pharmaceuticals, decoration, etc., where measuring the fluid pressure is required.
Maximum working pressure: 41.4 MPa
Maximum working temperature: 400°C
Material: 321, 304, 304L, 316, 316L
