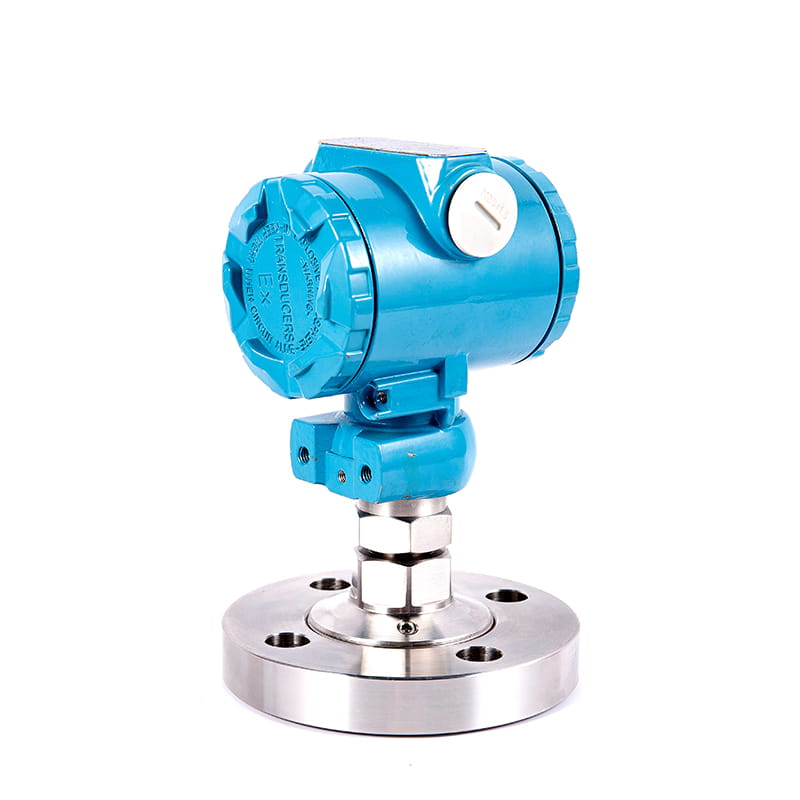

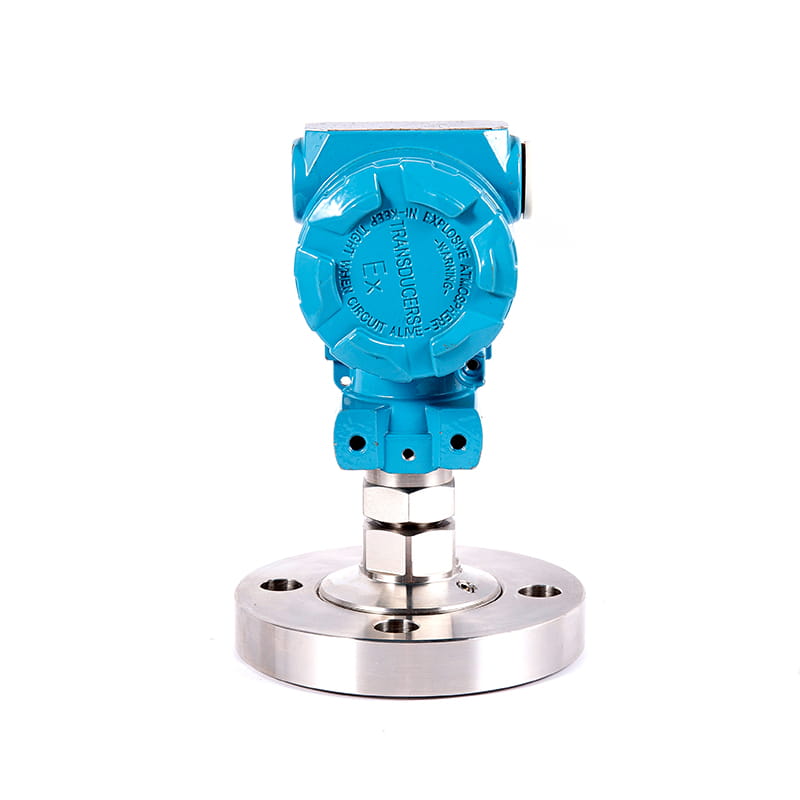

YSZC-7 series intelligent pressure transmitter

◆ Model: YSZC-7

◆ Application: This instrument is suitable for precise measurement of liquid, gas or vapor level, density and pressure.

The instrument transmits high-precision signals over long distances.

◆ Excellent quality: The new intelligent transmitter can ensure the requirements of accuracy and stability even under the harshest environmental conditions, and provide the best solution for your eternal needs.

◆ Superb performance: The intelligent transmitter not only adopts a high-performance pressure sensor, but also a digital temperature sensor and a high-performance 16-bit CPU to accurately correct and compensate for subtle changes in process control, so that the comprehensive performance of the transmitter is greatly improved and becomes a real "invisible" transmitter.

◆ Long-term stability: A large number of high-performance alloys, polymer materials and advanced computer compensation technology are used in the design of the transmitter, so that the zero point of the transmitter has long-term unchanged performance.

◆ Long-term reliability: Whether it is a micro-range or other range transmitter, it must be tested by high water pressure (greater than 16MPa) on the simulated site, 10,000 times of alternating load test, high and low temperature cycle test and other harsh screening before it is allowed to leave the factory. Strict technology, high-performance design, and excellent production have created excellent reliability of intelligent transmitters.

Get A Quote

PREV：YSZC-8 series differential pressure transmitter NEXT：YSZC-6 series wind pressure transmitter

Parameter
Contact Us

◆ Technical Parameters:

Model	YSZC-7
Fitting threads	M20×1.5
Numerical precision	±0.05％
Simulation accuracy	±0.075％～±0.1％ F.S
Full performance	±0.25％F.S
stability	0.25% for 60 months
Turndown ratio	100:1
Measurement rate	0.2S
weight	2.4Kg
Measuring range	（0～60）Pa～（0 ～40）MPa
Electrical parameters	★ Output signal: 4~20mA DC HART protocol data communication port S-PORT serial communication port ★ Transmission mode: two-wire system ★ Power supply voltage: 24V DC
Environmental conditions of use	Temperature: -30°C~80°C
Ingress protection	IP67
Sealing level	JIS C0920 waterproof rating
Note: There are many specifications and accessories of intelligent transmitters, so please consult our company if you need to order.
