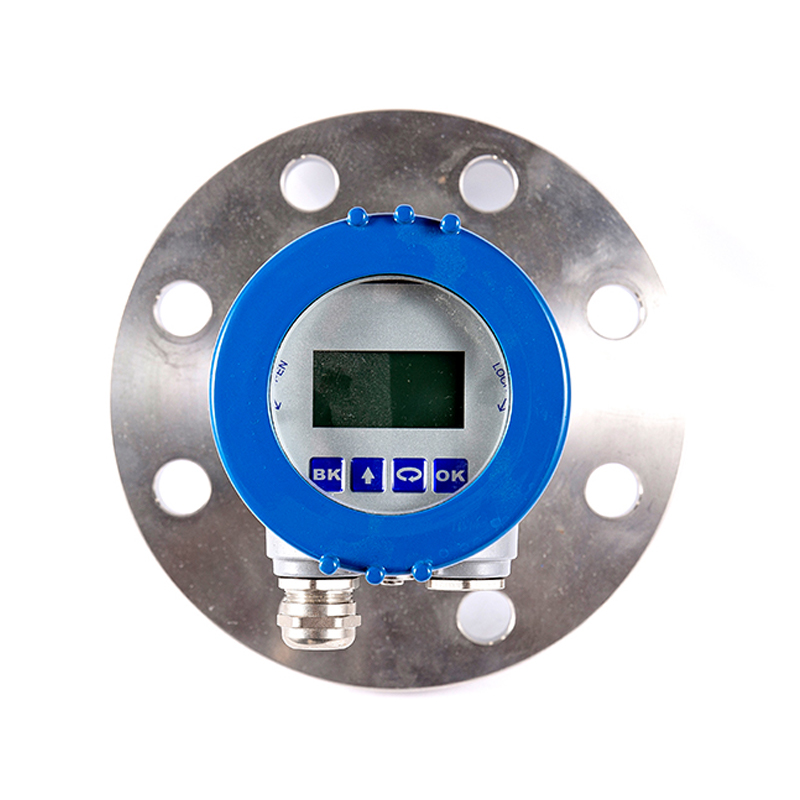

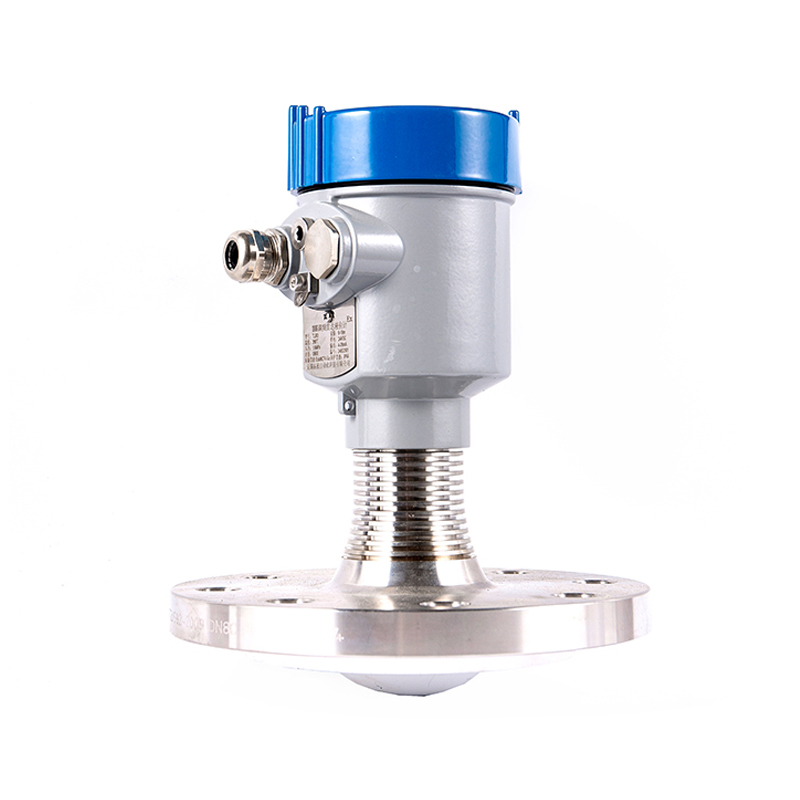

The Radar Level Transmitter is a 26GHz high-frequency radar type level measurement instrument. It can measure a maximum distance of up to 80 meters. The antenna has been further optimized. The new fast microprocessor can perform higher-speed signal analysis and processing, enabling the instrument to be used in some complex measurement conditions such as reaction vessels and solid silos. The antenna of the radar level gauge emits narrow microwave pulses, which are transmitted downward through the antenna. After the pulse contacts the surface of the measured medium and is reflected back, it is again received by the antenna system and the signal is transmitted to the line part for automatic conversion into a level signal (the emission and reception of the signal is almost instantaneous and the delay time can be ignored).
| Parameter | Specification |
| Range | 0 - 5M ~ 80mH₂O |
| Accuracy | 0.25%F·S, 0.5%F·S |
| Long-Term Stability | 0.2%FS/Years. |
| Medium Temperature | -40℃ - 130℃, -40℃ - 250℃ |
| Process Pressure | -0.1MPa - 2MPa, -0.1MPa - 4MPa |
| Power Supply | 16V - 28V DC (recommend 24V DC), 220V DC |
| Output Signal | 4mA - 20mA DC, RS485 |
| Communication Protocol | MODBUS RTU protocol, HART protocol |
| Protection Level | IP65 |
| Warranty | 12 Months |
