How Do Pressure Instruments Compare to Pressure Sensors and Transducers?

Pressure Instruments vs. Pressure Sensors vs. Pressure Transducers: Understanding the Differences

Introduction
Pressure is a fundamental physical parameter that plays a crucial role in numerous industries, including automotive, aerospace, medical, and industrial automation. Accurate pressure measurement is essential for maintaining system performance, safety, and efficiency. Without proper monitoring, systems can face malfunctions, safety risks, or reduced productivity.

In the world of pressure measurement, terms like pressure instruments, pressure sensors, and pressure transducers are often used interchangeably, which can create confusion. While these devices are related, each serves a distinct role in detecting, converting, and displaying pressure data. Understanding the differences between them is key to selecting the right device for your specific application.

This article aims to clarify these concepts, compare their functionalities, and provide guidance on how to choose the most suitable pressure measurement device.

What are Pressure Instruments?
Pressure instruments are a broad category of devices designed to measure, monitor, and sometimes control pressure in a system. They are not limited to a single function but encompass various tools and devices that can detect, display, or transmit pressure information.

Examples of Pressure Instruments

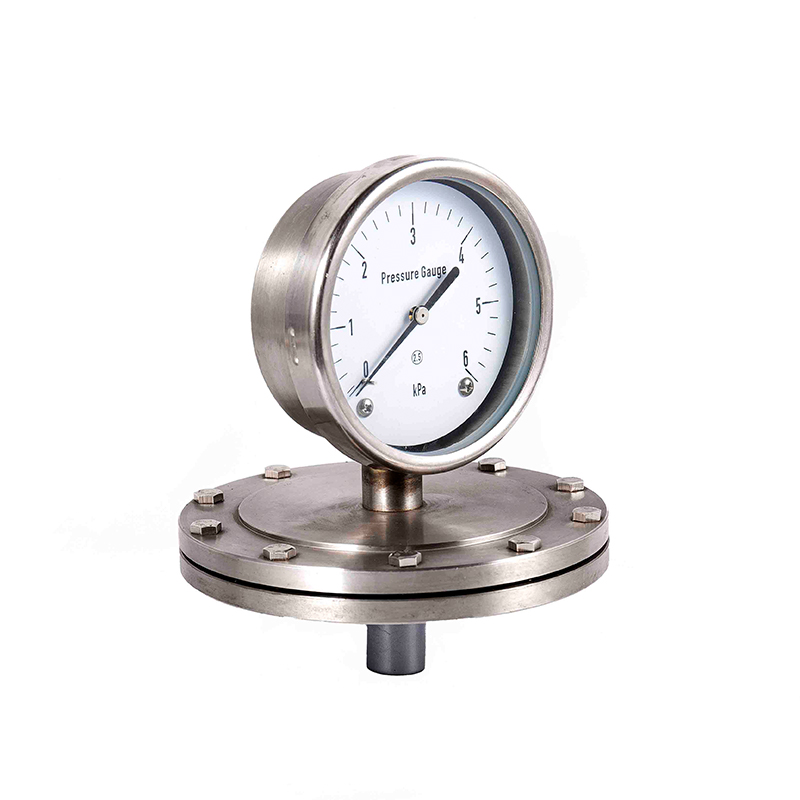

Pressure Gauges: Mechanical instruments that provide a visual indication of system pressure. Common types include analog dial gauges and digital gauges.
Pressure Transmitters: Devices that convert pressure into an electrical signal for remote monitoring and control.
Pressure Switches: Instruments that activate an electrical circuit when a certain pressure threshold is reached, often used for safety or automation.
Manometers: Devices that measure pressure using a column of liquid, typically used in laboratory or low-pressure applications.
General Applications and Functions
Pressure instruments are widely used across industries for tasks such as:

Monitoring hydraulic and pneumatic systems
Ensuring safety in pressurized pipelines
Controlling pressure in HVAC systems
Measuring gas and liquid pressures in laboratory experiments

What are Pressure Sensors?

Pressure sensors are specialized components within the broader category of pressure instruments. Their primary role is to detect pressure in a system and convert it into a measurable signal, which can then be interpreted or transmitted by other devices. Unlike mechanical gauges that display pressure directly, sensors focus on precision, signal conversion, and integration with electronic systems.

How Pressure Sensors Work
The basic principle behind a pressure sensor involves the conversion of applied pressure into a readable signal. Most sensors use a diaphragm or membrane that deforms under pressure. This mechanical change is then converted into an electrical signal using various sensing technologies.

Types of Pressure Sensors
Strain Gauge Pressure Sensors

Utilize strain gauges attached to a diaphragm.
Deformation of the diaphragm changes the electrical resistance of the strain gauge, generating a measurable signal.
Commonly used in industrial and hydraulic systems due to accuracy and reliability.
Capacitive Pressure Sensors

Measure changes in capacitance caused by diaphragm movement.
Provide high sensitivity and are often used in low-pressure applications or precision instruments.
Piezoelectric Pressure Sensors

Use piezoelectric materials to produce an electrical charge when mechanical stress is applied.
Ideal for dynamic pressure measurement, such as vibration monitoring or high-speed industrial processes.
Piezoresistive Pressure Sensors

Rely on semiconductor materials whose electrical resistance changes under pressure.
Highly sensitive and commonly used in automotive and medical applications.
Applications of Pressure Sensors
Pressure sensors are widely used across multiple industries:

Industrial Automation: Monitoring hydraulic and pneumatic pressures in machinery.
Automotive: Measuring tire pressure, fuel injection, and engine manifold pressure.
Medical Devices: Monitoring blood pressure and respiratory systems.
Aerospace: Measuring cabin pressure, fuel systems, and hydraulic controls.
Key Takeaway: Pressure sensors are critical for accurately detecting pressure and converting it into a signal that can be monitored or processed by electronic systems. They form the backbone of modern automated pressure measurement systems.

What are Pressure Transducers?

Pressure transducers are specialized devices designed to convert pressure into a standardized electrical signal, which can be interpreted by control systems, data acquisition devices, or digital displays. While pressure sensors detect and produce a raw signal from pressure, transducers often include signal conditioning, making them ready for integration into automated or electronic systems.

How Pressure Transducers Work
A pressure transducer typically consists of:

Pressure Diaphragm: A thin membrane that deforms under applied pressure.
Sensing Element: Converts the diaphragm deformation into an electrical signal, often using strain gauges, piezoresistive elements, or capacitive sensors.
Signal Conditioning Circuit: Amplifies, linearizes, and converts the raw signal into a usable output such as 4–20mA, 0–10V, or digital communication protocols.
Excitation Source: Provides the necessary voltage or current to power the sensing element and electronics.
Key Features of Pressure Transducers
Output Signal: Common signals include 4–20mA current loops, 0–10V voltage signals, and digital outputs compatible with industrial controllers.
Accuracy and Linearity: High-precision transducers can achieve minimal error and excellent linearity across their pressure range.
Pressure Range: Available in a wide range of pressure ratings, from vacuum to several thousand psi.
Operating Temperature: Designed to withstand environmental extremes in industrial, automotive, or aerospace applications.
Applications of Pressure Transducers
Pressure transducers are widely employed where pressure data needs to be digitally monitored, logged, or controlled:

Industrial Automation: Hydraulic and pneumatic system monitoring and process control.
Scientific Research: Precise measurement of gas or liquid pressure in laboratory experiments.
Automotive: Engine and fuel system monitoring for performance and emissions control.
HVAC Systems: Pressure monitoring in refrigeration and heating systems for efficiency and safety.
Key Takeaway: Pressure transducers not only detect pressure but also provide a standardized, reliable electrical signal suitable for integration into digital monitoring and control systems. This makes them ideal for modern automated applications.

Key Differences Between Pressure Instruments, Sensors, and Transducers

While the terms pressure instruments, pressure sensors, and pressure transducers are often used interchangeably, understanding their distinctions is essential for selecting the right device for specific applications.

1. Functionality
Pressure Instruments: Represent a broad category of devices that measure, monitor, or respond to pressure. They can be mechanical, electrical, or digital, and include gauges, switches, sensors, and transducers.
Pressure Sensors: Detect pressure and convert it into a measurable electrical or mechanical signal. They are components within instruments, focusing primarily on detection and signal generation.
Pressure Transducers: Convert the detected pressure signal into a standardized electrical output, often including amplification and conditioning for use in automated or digital systems.
2. Output Signal
Pressure Instruments: May provide a direct visual reading (analog gauge), trigger an electrical switch, or output a signal via a sensor/transducer.
Pressure Sensors: Produce a raw signal corresponding to the applied pressure, such as a small voltage or resistance change.
Pressure Transducers: Provide a ready-to-use electrical signal (e.g., 4–20mA, 0–10V, or digital communication), suitable for integration with controllers, PLCs, or monitoring systems.
3. Complexity
Pressure Instruments: Range from simple mechanical devices like dial gauges to complex digital transmitters.
Pressure Sensors: Typically smaller, simpler devices designed primarily for detection.
Pressure Transducers: More sophisticated, combining sensing elements with electronics for signal conditioning and reliability in industrial or scientific systems.
4. Applications
Pressure Instruments: Serve as the general category and may be used in monitoring, controlling, or triggering systems.
Pressure Sensors: Commonly used in precise measurement applications, such as automotive sensors, medical devices, and industrial monitoring.
Pressure Transducers: Ideal for automation, data acquisition, and industrial process control where accurate electronic signals are required for further processing.
5. Hierarchical Relationship
It’s helpful to understand that pressure instruments encompass both sensors and transducers:

All pressure sensors are pressure instruments, but not all pressure instruments are sensors.
Pressure transducers are essentially enhanced sensors, providing a processed signal suitable for industrial and digital systems.

Factors to Consider When Choosing a Pressure Instrument

Selecting the right pressure instrument is critical to ensure accurate measurement, system safety, and long-term reliability. Whether you are choosing a pressure gauge, sensor, or transducer, several factors should be carefully evaluated.

1. Pressure Range Requirements
Determine the minimum and maximum pressures your system will encounter.
Choose a device that operates safely within this range while providing accurate readings.
Overloading a pressure instrument can lead to damage, inaccurate measurements, or system failure.
2. Accuracy and Precision
Consider the level of precision required for your application.
High-accuracy devices, such as precision transducers, are essential in applications like scientific research, medical equipment, and aerospace systems.
Less critical applications, such as HVAC monitoring, may tolerate lower accuracy.
3. Environmental Conditions
Evaluate temperature extremes, humidity, vibration, and corrosive environments.
Silicone-sealed sensors or ruggedized transducers may be necessary for harsh industrial or outdoor conditions.
Ensure the instrument can withstand environmental stress without degradation.
4. Type of Media Being Measured
Determine whether the instrument will measure liquids, gases, or multi-phase fluids.
Certain materials are better suited for specific media; for example, some pressure sensors are sensitive to corrosive liquids, while others may only work with clean gases.
Compatibility with the medium ensures long service life and consistent readings.
5. Output Signal Requirements
Consider whether you need a mechanical reading, analog electrical signal, or digital output.
Pressure transducers with standardized outputs (4–20mA, 0–10V) are ideal for integration with PLC systems, data acquisition, or industrial automation.
Choosing the correct output type ensures seamless integration with control and monitoring systems.
6. Cost and Availability
Evaluate your budget relative to the criticality of the application.
High-end transducers may be more expensive but provide long-term reliability and integration benefits.
For less critical applications, a simple mechanical gauge or basic sensor may be sufficient.

Common Applications

Pressure instruments, sensors, and transducers are integral to a wide range of industries and applications. Understanding where each device excels helps engineers and technicians select the right solution for their needs.

1. Industrial Automation
Used to monitor and control hydraulic and pneumatic systems.
Pressure sensors and transducers feed data into PLC systems for real-time monitoring and automation.
Essential for maintaining system efficiency, preventing overpressure, and reducing downtime.
2. Automotive
Pressure sensors measure engine manifold pressure, fuel injection, and tire pressure.
Transducers convert pressure readings into electrical signals for integration with vehicle control systems.
Helps improve fuel efficiency, emissions control, and vehicle safety.
3. Aerospace
Pressure instruments monitor cabin pressure, fuel systems, and hydraulic circuits.
Sensors and transducers provide precise readings critical for safety and performance.
High-accuracy instruments ensure reliability in extreme environments.
4. Medical Devices
Pressure sensors are used in blood pressure monitors, ventilators, and respiratory systems.
Transducers convert readings into signals for digital displays and patient monitoring systems.
Accuracy and reliability are crucial for patient safety and diagnostics.
5. HVAC Systems
Pressure instruments monitor refrigerant, air, and water pressures in heating, ventilation, and air conditioning systems.
Sensors and transducers help optimize energy efficiency and system performance.
Prevent overpressure situations and ensure safe operation.

Conclusion

Understanding the differences between pressure instruments, pressure sensors, and pressure transducers is essential for selecting the right device for your specific application.

Pressure Instruments serve as the broad category, encompassing all devices that measure, monitor, or respond to pressure, including gauges, switches, sensors, and transducers.
Pressure Sensors detect pressure and convert it into a measurable signal, focusing on accuracy and reliability.
Pressure Transducers take this a step further by converting the detected pressure into a standardized electrical output, ready for integration into digital control systems or data acquisition platforms.
When choosing a pressure measurement solution, it is important to consider pressure range, accuracy, environmental conditions, media compatibility, output requirements, and cost. Selecting the right instrument ensures safety, efficiency, and long-term reliability in applications ranging from industrial automation and automotive systems to aerospace, medical devices, and HVAC systems.

By understanding these key differences and application requirements, engineers, technicians, and decision-makers can make informed choices, optimize system performance, and ensure the longevity of their pressure monitoring solutions.
