Power Plant Instrumentation Case Study: Flow, Pressure, Level & Temperature Solutions for Thermal Power Stations

           The global power automation and instrumentation market is valued at approximately \( 13.5 billion in 2024 and is projected to reach \)22.9 billion by 2031, with a compound annual growth rate (CAGR) of 8.20%. Meanwhile, there are currently over 2,152 power plants under construction worldwide, expected to be commissioned by 2026, covering coal-fired, nuclear, hydropower, geothermal, and renewable energy projects.

            In the coal-fired power generation sector, China approved new coal power projects totaling 25 GW in the first half of 2025, and new coal power capacity additions for the full year are expected to exceed 80 GW, reaching a decade-high. In India, the Buxar thermal power project alone has a single-phase capacity of 1,320 MW, with equipment procurement focusing on transmitters and various sets of instrumentation. Gas-fired power generation also shows significant new construction demand, such as the UAE’s Al Nouf 1 CCGT project with a capacity of 3.3 GW.

The core application scenarios and selection criteria of power plant instruments.

          The operation of power plants relies on four key parameters: pressure, flow, temperature, and level.

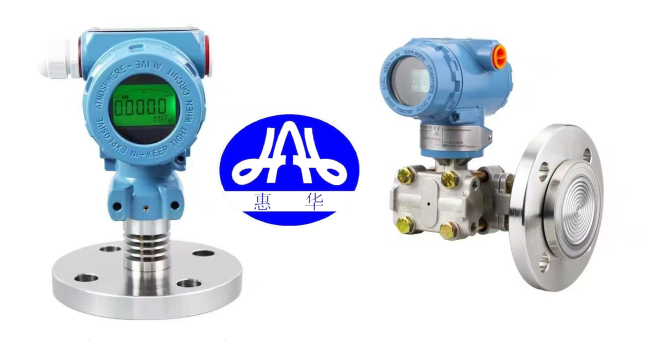

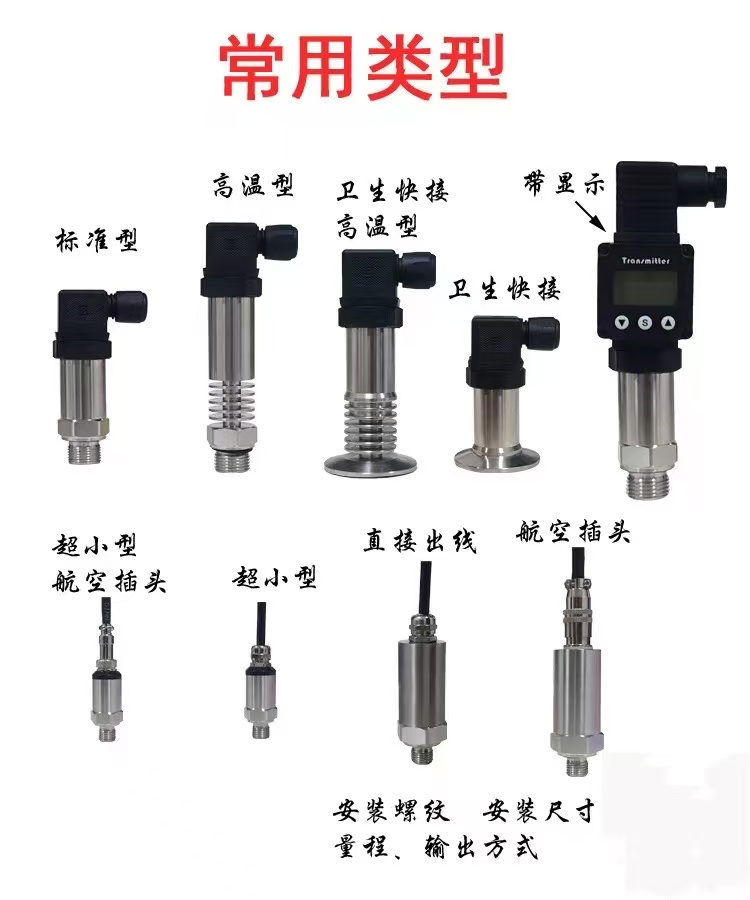

1,Pressure Transmitter /Pressure Sensor:The nerve center for the safe operation of power plants.

            In ultra-supercritical units, the main boiler feedwater pressure can exceed 40 MPa, and the main steam pressure can exceed 35 MPa. The sensing diaphragm, housing, and process connections of high-static-pressure transmitters are specially designed to withstand system static pressure far beyond their measurement range. For example, a differential pressure transmitter with a range of 0–100 kPa must have a body capable of enduring static pressures above 40 MPa. Such highly reliable instruments are commonly used in safety instrumented systems (SIS), including the Furnace Safeguard Supervisory System (FSSS) and the Emergency Trip System (ETS). With an extremely low probability of failure, they serve as the cornerstone for the long-term reliable operation of power plants.

            Furthermore, differential pressure transmitters are widely used in power plants for applications such as drum water level measurement, feedwater flow measurement, and filter differential pressure monitoring. Drum water level measurement represents one of the most technically challenging applications for pressure transmitters in power plants, where static pressure can reach as high as 2,800 psig (approximately 19.3 MPa). This scenario is a typical application of differential pressure transmitters coupled with density compensation technology.

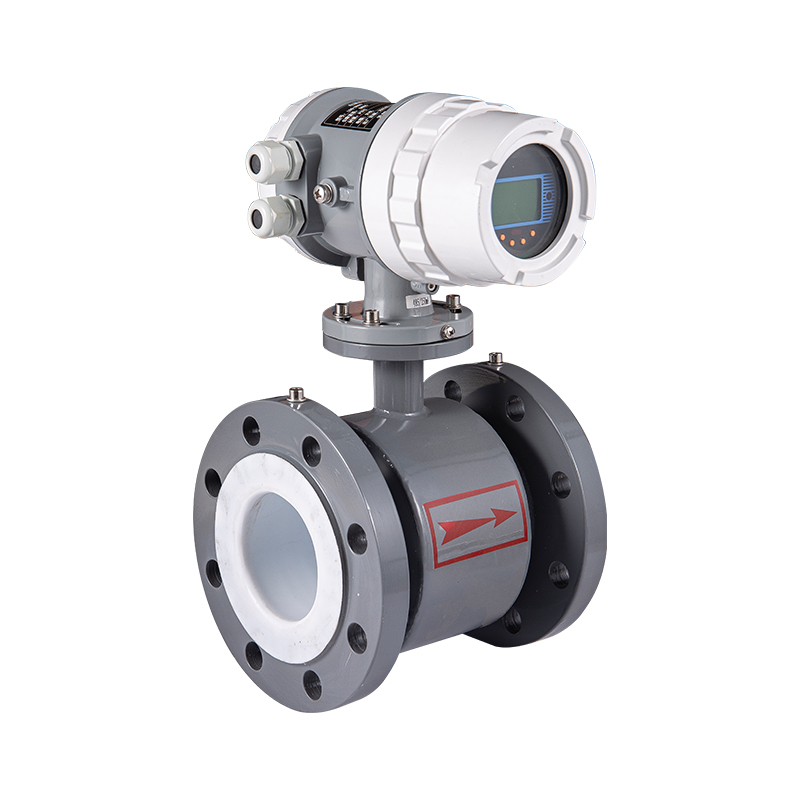

2，Flow Meters: A Key Instrument for Optimizing Boiler and Turbine Efficiency

         Flow measurement is crucial for the efficiency of both boilers and turbines in power plants. Vortex flowmeters are representative instruments for multi-variable measurement and are commonly deployed in steam, water, and gas pipelines. Multi-variable vortex flowmeters can simultaneously measure mass flow rate, volumetric flow rate, temperature, and pressure.

       For power plants, the measurement of superheated or saturated steam at temperatures reaching several hundred degrees Celsius requires stainless steel construction and an integrated multi-variable temperature measurement structure to ensure maintenance-free long-term stability. It is recommended to adopt instruments equipped with standardized communication interfaces such as HART and Modbus for seamless integration with the plant's DCS and SCADA control systems.

3，Temperature Sensors/Thermometer Transmitters : Combustion Optimization and Thermal Cycle Monitoring.

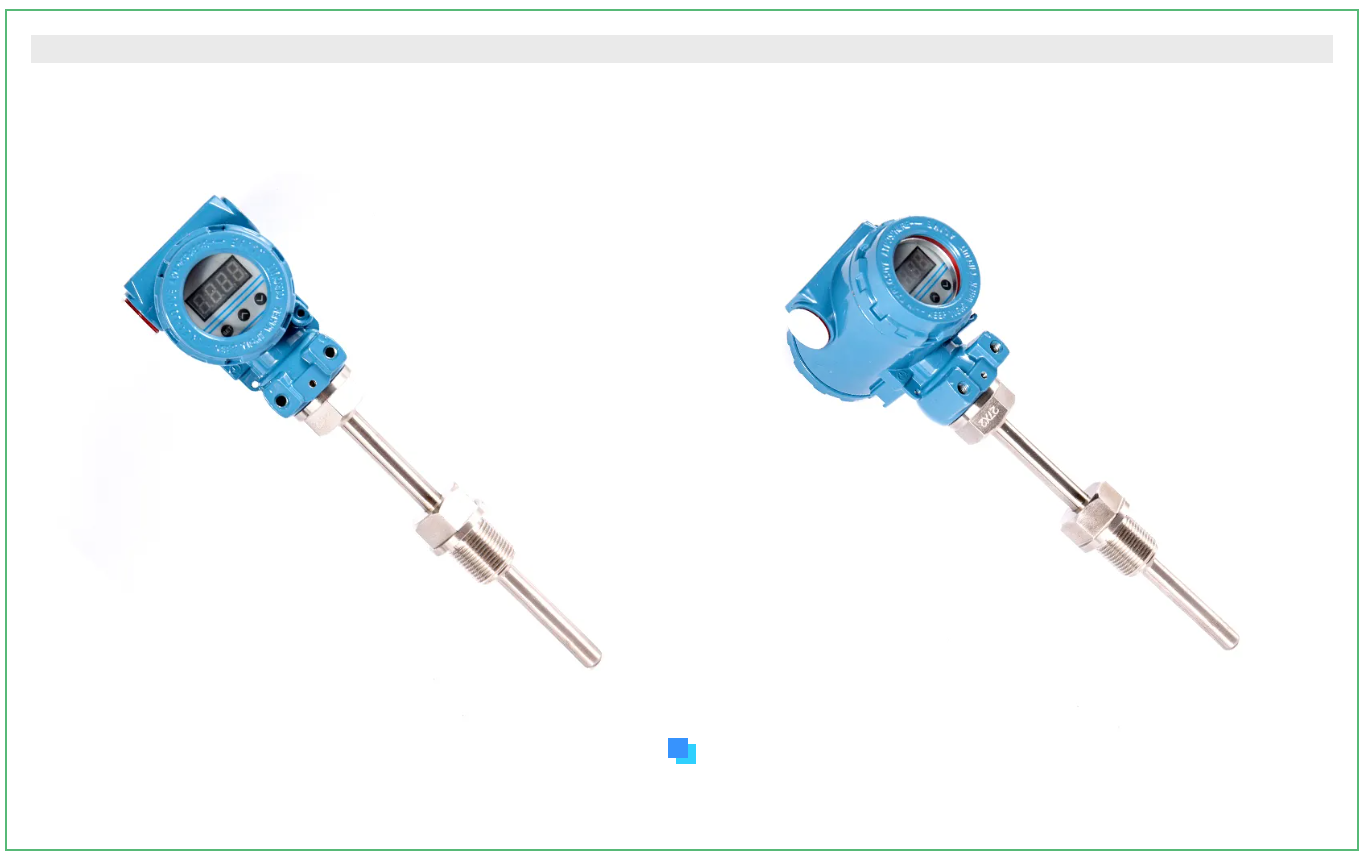

                                                                Thermometer Transmitter ( Temperature Transmitter)

              Temperature sensors serve as the direct basis for adjusting the air‑fuel ratio during combustion in power plants. For example, wireless temperature transmitters can be used on rotating components and preheaters of boilers. The measurement results are fed back to the control system, enabling real‑time adjustment of the excess air coefficient so that the boiler operates near its optimal efficiency point.

4，Level Measurement: The Lifeblood of Steam Generation

               The boiler drum level is directly related to the safe operation of the superheater. The differential pressure measurement scheme, which combines high‑static‑pressure differential pressure transmitters with condensate pots, remains a highly reliable mainstream choice, and ISA technical standards provide clear application guidance for differential pressure measurement. Differential pressure transmitters equipped with real‑time density compensation can eliminate measurement errors caused by variations in the densities of saturated water and steam under different pressures, further enhancing control accuracy.

Practical Case Studies: Hands‑on Analysis of Instrument Applications in Power Plants

Based on the above technical points, the following presents several real instrument application cases of different types of power plants for your reference.

1，Case A: Steam Flow Measurement in a Swedish Power Plant: Application Results of an 8-inch Pipeline Vortex Flowmeter.

·Background: A power plant in Sweden consistently observed lower-than-expected flow data from its main steam pipeline but could not identify a clear cause. As the plant's revenue is directly tied to the planned output of verified steam volume, accurate monitoring became imperative.

·Solution: A multi-variable vortex flowmeter was installed on the 8-inch main steam pipeline. It simultaneously measures pressure, temperature, and flow, at a cost significantly lower than procuring three separate. instruments. During initial operation, it detected a 12% flow deviation.

·Results: The maintenance team investigated based on this deviation and discovered worn valve internals during an inspection. After repairing the valve, the plant estimates an annual recovery of approximately €100,000 in thermal energy losses. The vortex flowmeter integrated steam into a refined and quantifiable control process.

·Insight for Your Product: Medium to large steam pipelines present a practical need for integrated multi-variable vortex flowmeters. Procurement personnel prefer solutions that reduce the number of pipeline penetrations and lower leakage risks. Providing clear third-party calibration certificates with shipped products can significantly expedite the installation and commissioning process on overseas pipelines.

2，Case B: Selection of High Static Pressure Transmitters for a 1000 MW Ultra‑Supercritical Unit in China.

·Background: A 1000 MW ultra‑supercritical unit required long‑term monitoring of differential pressure signals from the main feedwater pipeline, economizer inlet, and startup system, where the static pressure reaches 40 MPa.

·Solution: Dedicated high static pressure differential pressure transmitters were selected. Their material and pressure‑withstanding ratings were matched to the maximum operating conditions of the main feedwater line, rather than being limited only to the normal differential pressure range.

·Results: During periods of severe pressure fluctuation, such as unit startup/shutdown and hydrostatic tests, the transmitter's sensing diaphragm assembly showed no signs of leakage, and the process connections remained reliably sealed. Furthermore, the transmitters provided smooth, spike‑free differential pressure signals to the DCS. The instruments have operated within the SIS protection logic for two major overhaul cycles without any failure records.

·Insight for Your Product: When promoting pressure transmitters to overseas clients, it is essential to highlight the material grades of the diaphragm and flange assemblies as well as the static pressure rating. Providing certifications applicable to high static pressure applications is crucial. These parameters represent a key competitive differentiator in EPC procurement tenders.

Five Common Mistakes in Power Plant Instrument Selection (and How to Avoid Them with Your Products)

The following are common misunderstandings accumulated in multiple power plant projects, which are provided for your reference:

1. Focusing Only on Ambient Conditions While Overlooking Extreme Operating Scenarios:
Many temperature and pressure products exhibit significant linear drift or even leakage at temperatures above 400°C or pressures exceeding 30 MPa. Your product should clearly specify dynamic operating curves under varying temperature, pressure, and medium compositions, helping customers verify safety margins in advance.

2. Neglecting Density Compensation in Drum Level Measurement:
During slagging in water-cooled walls or fluctuations in grid load, pressure drops in steam drums can lead to density errors, resulting in false water level readings. Transmitters with automatic pressure compensation algorithms are highly valued in domestic power plant retrofits. Promoting such solutions is recommended.

3. Condensate Blockage in Piping Causing Pressure Signal Delays:
Condensate accumulation in long impulse lines for steam or hot air pipelines can cause water hammer and signal delays. Pressure transmitters with rapid purging functions or remote diaphragm seals can fundamentally eliminate this persistent issue.

4. Prioritizing Initial Instrument Cost Over Total Lifecycle Cost:
Overseas power plants place greater emphasis on spare part replacement frequency and maintenance labor over 5–10 years. Although pressure transmitters with stable calibration may have a higher initial purchase price, their total cost of ownership is lower.

5. Inconsistent Communication Protocols Leading to Debugging Delays:
Instrument engineers in chemical plants prefer devices with clearly defined, pre-tested compatibility for protocols such as HART or Foundation Fieldbus. It is recommended to include interoperability test results with mainstream PLC/DCS manufacturers (e.g., Emerson, Honeywell, Siemens, ABB) in the product datasheet.
