Selection Manual | Thermal Resistance & Thermocouple

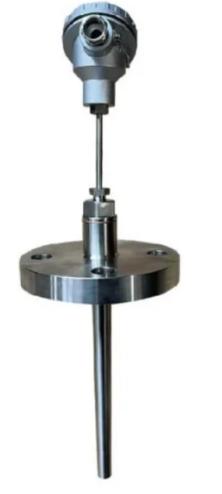

Thermal Resistance

The internal structure of the temperature sensor adopts a armored design, which can enhance the vibration and shock resistance of the temperature sensor and extend its service life.

The temperature measurement sensors are protected by dozens of materials, which can meet the various needs of different industries. They are particularly suitable for high-temperature, high-pressure, and high-temperature wear-resistant fields.

The explosion-proof type temperature sensor can achieve an explosion-proof rating of ExdIICT6.The junction boxes are not only available in the commonly used aluminum alloy, but also provide customers with electro-wood, PVC plastic, 316 stainless steel and cast iron junction boxes for different application scenarios.

The main application industries include power stations (generating units, boilers, steam pipelines, sulfuric acid beds, bearing temperature measurement), petrochemicals (various reaction towers, raw material production for chemical fibers, plastic product processing, temperature measurement), steel industry (boilers, annealing furnaces, casting, heat treatment temperature measurement), paper industry (boilers, condensate water, pulp and other temperature measurement), food industry (temperature measurement during food manufacturing process), kilns (ceramic baking, glass kilns, temperature measurement in ships), agriculture (grain storage, vegetable greenhouses, grain dryers, edible oil processing, etc. temperature measurement), and others (incinerators, various combustion furnaces, temperature measurement in ships).

Technical Specification

Model	WZ
Input Signal	PT10,PT50,PT100,Cu50,Cu100
Intrinsic Error	0.1%FS,0.2%FS,0.5%FS
Connection Type	Two Wire ,Three Wire,Four Wire
Copper Thermoresistor	Cu50-50~150℃ rang as your choose
Copper Thermoresistor	Cu100-50~150℃ rang as your choose
Platinum Thermistor	Cu100-200~600℃ rang as your choose

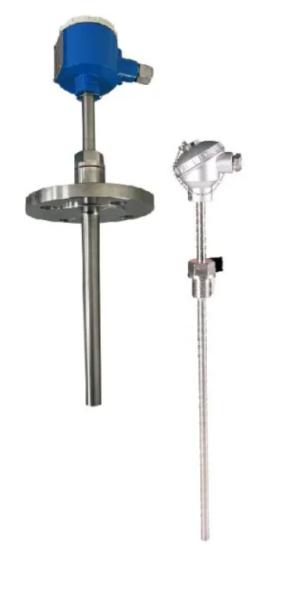

Thermocouple

The internal structure of the temperature sensor adopts a armored design, which can enhance the vibration and shock resistance of the temperature sensor and extend its service life. The protective oil of the temperature sensor is made of dozens of materials, which can meet the different requirements of various industries. It is particularly suitable for high-temperature, high-pressure, high-temperature wear-resistant and wear-resistant fields. The explosion-proof type temperature sensor can achieve an explosion-proof rating of ExdIICT6.
The application conditions are the same as those of the thermal resistance.

Technical Specification

Model	WZ
Input Signal	PT10,PT50,PT100,Cu50,Cu100
Intrinsic Error	0.1%FS,0.2%FS,0.5%FS
Connection Type	Two Wire ,Three Wire,Four Wire
Copper Thermoresistor	Cu50-50~150℃ rang as your choose
Copper Thermoresistor	Cu100-50~150℃ rang as your choose
Platinum Thermistor	Cu100-200~600℃ rang as your choose

Measurement Range

Type	Material		Range
Thermocouple	NiCr-Constantan	E	0-1000℃ rang as your choose
	NiCr-Nisiloy	K	0-1300℃ rang as your choose
	Nichrosi-Nisiloy	N	0-1300℃ rang as your choose
	PtRh10-PtRh	S	0-1600℃ rang as your choose
	PtRh30-PtRh6	B	0-1800℃ rang as your choose
	Copper-Constantan	T	0-400℃ rang as your choose
	Iron-Constantan	J	0-800℃ rang as your choose
